EXERTIS CONNECT Cable de conexión de fibra óptica OM3, 50/125 µm, 2x ST a SC dúplex, Aqua, 5 m 392764

This fibre optic patch cable delivers reliable 10 Gigabit Ethernet connectivity over multimode OM3 fibre. With a 50/125 µm core and aqua LSZH jacket, it ensures high bandwidth and low attenuation for demanding network environments.

Advantages

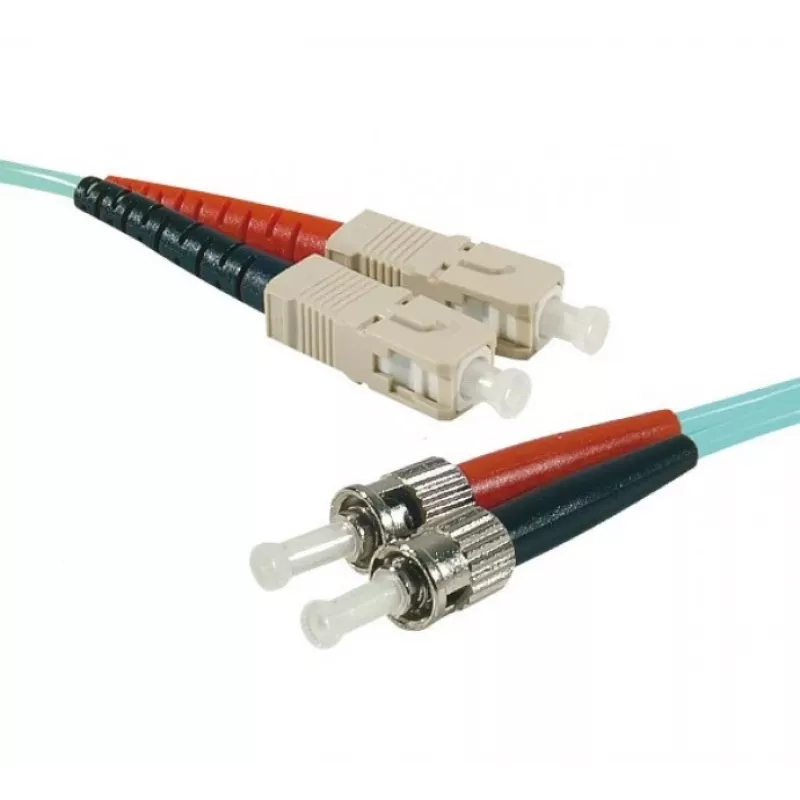

The duplex design with two ST connectors on one end and an SC duplex connector on the other provides a versatile link for patching between different fibre interfaces. UPC polishing on all connectors minimises insertion loss and back reflection, ensuring stable signal integrity.

Suitable for

• 10 Gigabit Ethernet backbone connections
• Fibre Channel storage networks
• Data centre patching between ST and SC equipment
• High-speed LAN backbones

Key specifications

• Fibre type: OM3 multimode 50/125 µm
• Connectors: 2x ST simplex to SC duplex, UPC polish
• Length: 5 m
• Jacket: LSZH, aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB

Recommendations

For installations requiring LSZH compliance and high bandwidth over short to medium distances, this OM3 cable offers a cost-effective solution without compromising performance.
