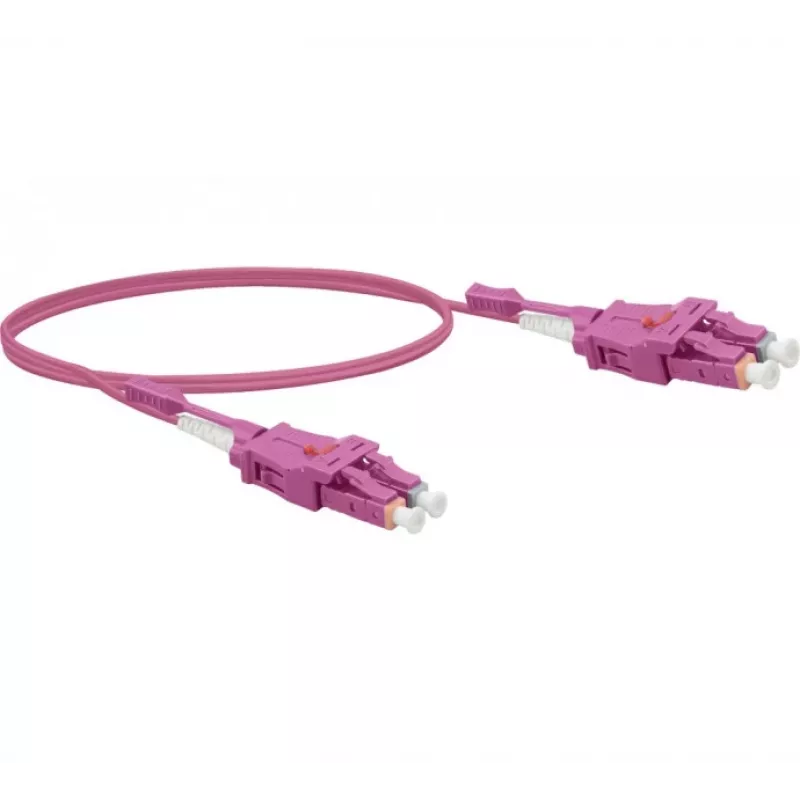

EXERTIS CONNECT Cable de conexión de fibra óptica OM4 Uniboot LC dúplex a LC dúplex, 50/125 µm, violeta erika, 5 m 392954

This EXERTIS CONNECT fibre patch cable uses a uniboot design that combines both fibres in a single jacket, reducing cable bulk and improving airflow in high-density racks. The OM4 multimode fibre supports 10G, 40G, and 100G Ethernet over short distances, making it suitable for data centres and enterprise networks. The LC duplex connectors feature UPC polish for low insertion loss and reliable performance.

Highlights

• Uniboot construction for space-saving cable management
• OM4 50/125 µm multimode fibre for high-speed transmission
• LC duplex to LC duplex connectors with UPC polish
• LSZH jacket in Erika violet for easy identification
• 5 m length for flexible rack-to-rack connections

In daily use

The uniboot design reduces the cable diameter compared to traditional duplex zip-cord cables, allowing better airflow and easier routing in dense fibre patching areas. The LSZH jacket emits low smoke and zero halogen in case of fire, meeting safety requirements in public buildings. The violet colour identifies OM4 fibre, simplifying network maintenance.

Full specifications

• Cable type: Fibre optic patch cable
• Fibre type: Multimode OM4
• Core/cladding diameter: 50/125 µm
• Connector 1: LC Duplex UPC
• Connector 2: LC Duplex UPC
• Cable length: 5 m
• Jacket material: LSZH
• Insertion loss (max): 0.3 dB
• Return loss (min): 30 dB
• Operating wavelengths: 850 nm, 1300 nm
• Attenuation: 3.0 dB/km @ 850 nm, 1.0 dB/km @ 1300 nm
• Minimum bend radius: 30 mm

Final note

Designed for high-density fibre patching where space and performance are critical.
