Exertis Connect Cable de conexión de fibra óptica ST/UPC a ST/UPC multimodo dúplex, OM2 50/125µm, LSZH, Naranja, 10m 392716

This 10-metre fibre patch cable delivers OM2 multimode performance with a 50/125µm core and cladding, ensuring reliable data transmission up to 500 MHz·km at both 850nm and 1300nm. Its ST/UPC connectors on both ends provide a secure bayonet-style connection for network equipment.

Overview

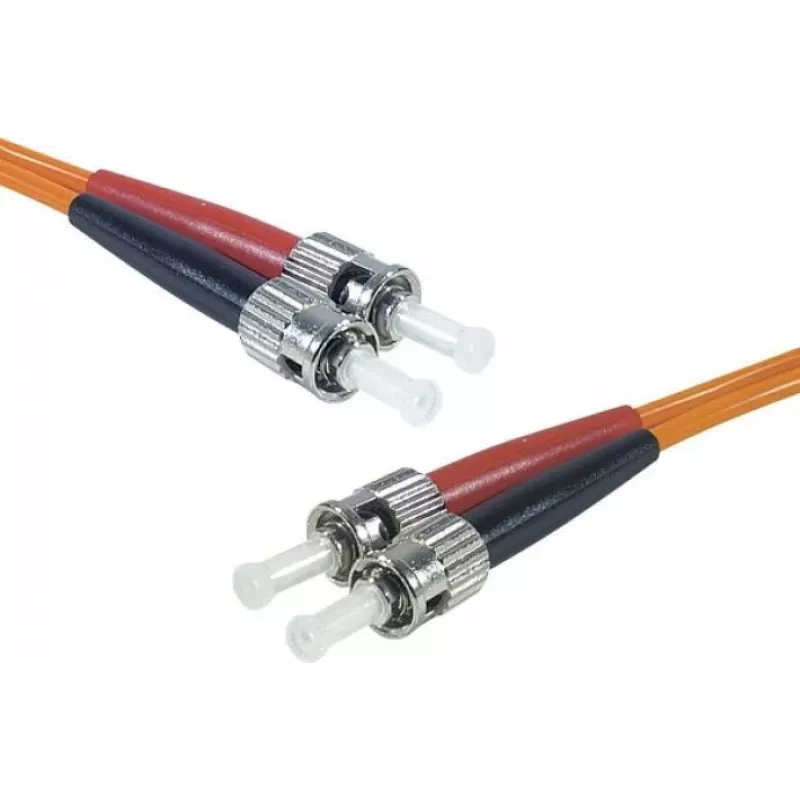

The Exertis Connect 392716 is a duplex fibre optic patch cable terminated with ST/UPC connectors. It is built with a 2mm LSZH (Low Smoke Zero Halogen) jacket in orange, making it suitable for environments where low smoke and toxicity are required. The cable supports multimode OM2 fibre, offering a balance of performance and cost for short to medium distance runs.

What stands out

• ST/UPC connectors on both ends for easy, twist-lock connections
• OM2 multimode fibre with 50/125µm core/cladding diameter
• LSZH jacket reduces hazardous emissions in case of fire
• Duplex construction for bidirectional communication
• 10-metre length ideal for patch panels and equipment interconnects

Technical details

• Connector A: ST/UPC
• Connector B: ST/UPC
• Fiber mode: Multimode
• Fiber type: OM2
• Core/cladding diameter: 50/125 µm
• Cable length: 10.0 m
• Cable diameter: 2 mm
• Jacket material: LSZH
• Jacket colour: Orange
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Operating temperature: -20°C to 70°C
• Storage temperature: -40°C to 85°C

Our verdict

A dependable OM2 multimode patch cable with ST connectors and LSZH jacket, ideal for legacy fibre installations requiring safety and performance.
