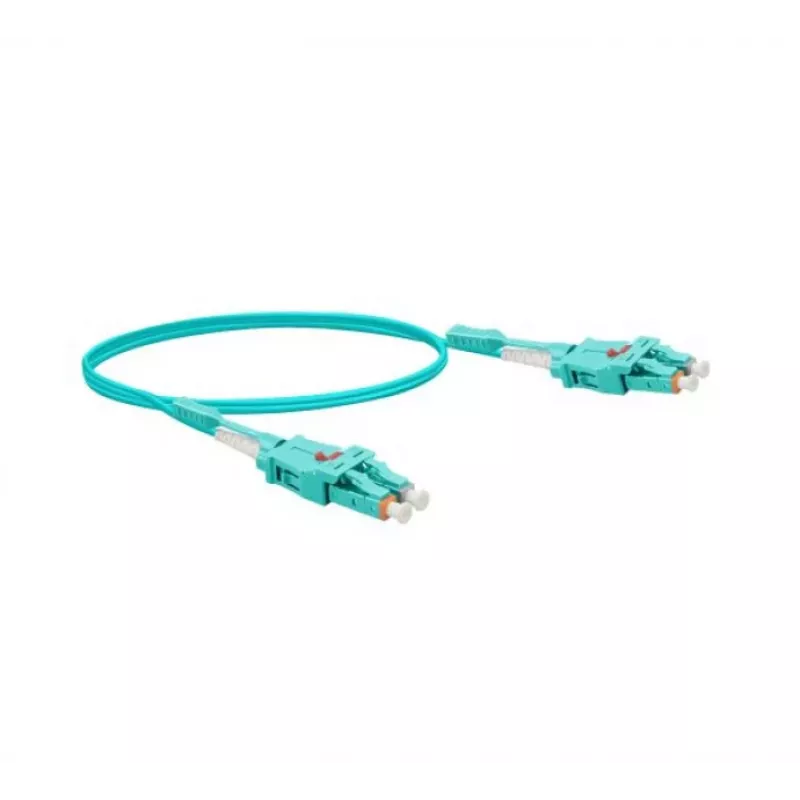

EXERTIS CONNECT Cable de conexión de fibra óptica Uniboot, 50/125 µm OM3, LC dúplex a LC dúplex, UPC, aqua, 3,0 m 392943

Data centre technicians and network engineers rely on this uniboot fibre patch cable to connect switches, servers, and patch panels in high-density 10G Ethernet or Fibre Channel environments. Its compact uniboot design saves rack space and simplifies polarity reversal without re-termination.

Key specifications

• Cable type: Fibre optic patch cable, multimode OM3 50/125 µm
• Connectors: LC Duplex to LC Duplex, UPC polish
• Length: 3.0 m
• Jacket: Aqua LSZH, 3.0 mm diameter
• Insertion loss: ≤ 0.3 dB; return loss: ≥ 30 dB
• Attenuation: ≤ 3.5 dB/km @ 850 nm, ≤ 1.5 dB/km @ 1300 nm
• Supports 10 Gigabit Ethernet and Fibre Channel

Why choose it

The uniboot construction combines both fibres in a single 3.0 mm jacket, reducing cable bulk and improving airflow in dense patching areas. Aqua colour coding identifies OM3 performance, while LSZH material limits smoke and toxic fumes in case of fire.

Ideal use cases

• Data centre backbone and horizontal cabling
• Server-to-switch connections in racks
• Fibre Channel SAN links
• High-density patch panel interconnects

Good to know

UPC connectors provide low back reflection for stable signal quality. The cable is compliant with TIA/EIA-568-C.3 and RoHS/REACH.
