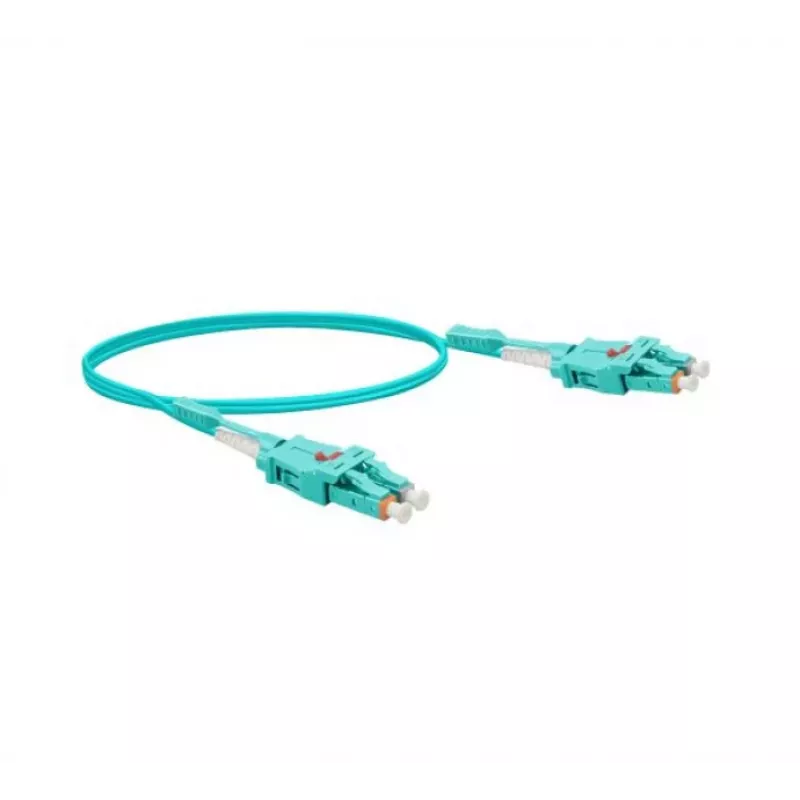

EXERTIS CONNECT Cable de conexión de fibra óptica Uniboot, 50/125 µm, OM3, LC dúplex/LC dúplex, UPC, aqua, 1,0 m (392941)

Fibre optic patch cable with Uniboot design, delivering reliable 10 Gigabit Ethernet connectivity over multimode OM3 fibre. The single-boot construction consolidates both fibres into one compact connector body, reducing cable bulk and simplifying polarity reversal in high-density patching areas.

Advantages

Uniboot connector saves space and allows quick polarity changes without special tools. OM3 fibre supports 10 Gb/s data rates up to 300 metres at 850 nm, making it ideal for backbone and data centre links. UPC polish provides low insertion loss and high return loss for stable signal integrity.

Suitable for

• High-density fibre patching in data centres and server rooms
• 10 Gigabit Ethernet backbone connections
• Fibre Channel and InfiniBand applications
• Telecommunications rooms and enterprise networks

Key specifications

• Fibre type: 50/125 µm multimode OM3
• Connectors: LC Duplex to LC Duplex, UPC polish
• Length: 1.0 m
• Jacket colour: aqua
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 50 dB

Recommendations

Choose this patch cable when you need a space-saving, high-performance link in dense fibre environments. The Uniboot design simplifies cable management and polarity handling, while OM3 fibre ensures compatibility with existing multimode infrastructure.
