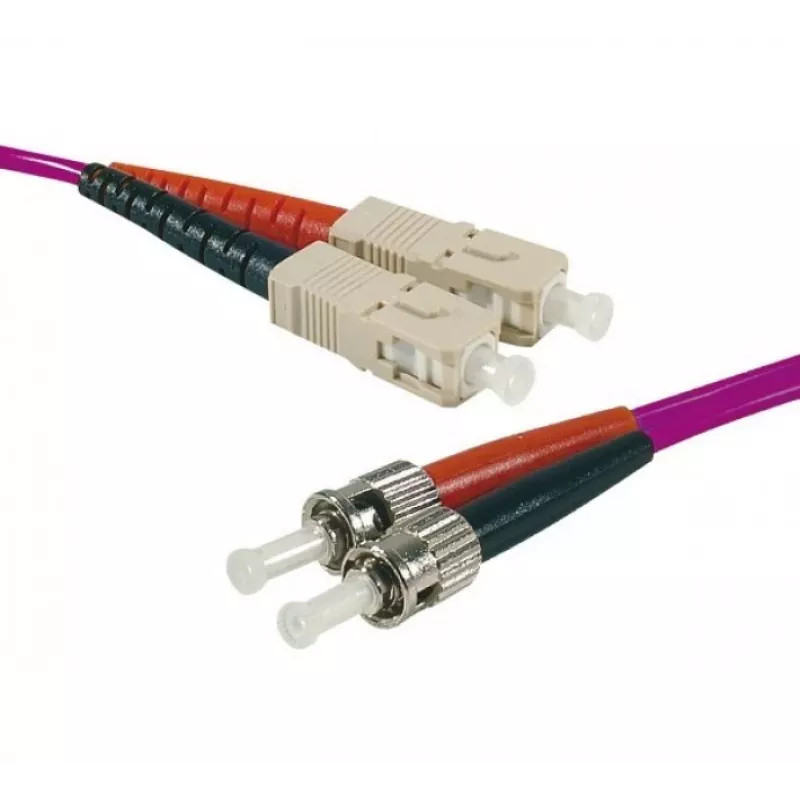

EXERTIS CONNECT Cable de conexión OM4 de fibra óptica, 50/125 µm, 2x ST a SC dúplex, violeta erika, 10 m 392826

This EXERTIS CONNECT OM4 fibre patch cable stands out with its 2x ST to SC duplex configuration, enabling flexible connections in high-density fibre environments. The erika-violet jacket provides quick identification among other cables.

Highlights

• OM4 multimode fibre supports high-speed data transmission
• UPC polish on connectors ensures low insertion loss
• LSZH jacket reduces toxic smoke in case of fire
• 10 m length suits rack-to-rack or device connections

In daily use

Ideal for data centres, SANs, and LAN backbones, this cable delivers reliable performance with a modal bandwidth of 4700 MHz·km at 850 nm, making it suitable for 10G, 40G, and 100G Ethernet applications.

Full specifications

• Fibre type: OM4 multimode, 50/125 µm core/cladding
• Connector 1: 2x ST simplex, UPC polish
• Connector 2: SC duplex, UPC polish
• Insertion loss: ≤ 0.3 dB
• Return loss: ≥ 30 dB
• Attenuation: ≤ 2.3 dB/km @ 850 nm, ≤ 0.6 dB/km @ 1300 nm
• Modal bandwidth: 4700 MHz·km @ 850 nm (OFL), 3500 MHz·km @ 850 nm (EMB), 500 MHz·km @ 1300 nm (OFL)
• Operating temperature: -20°C to 70°C
• Jacket material: LSZH
• Standards: TIA/EIA-568-C.3, IEC 60793-2-10 Type A1a.3

Final note

A dependable OM4 patch cable for demanding fibre optic networks, offering low loss and high bandwidth in a durable LSZH jacket.
