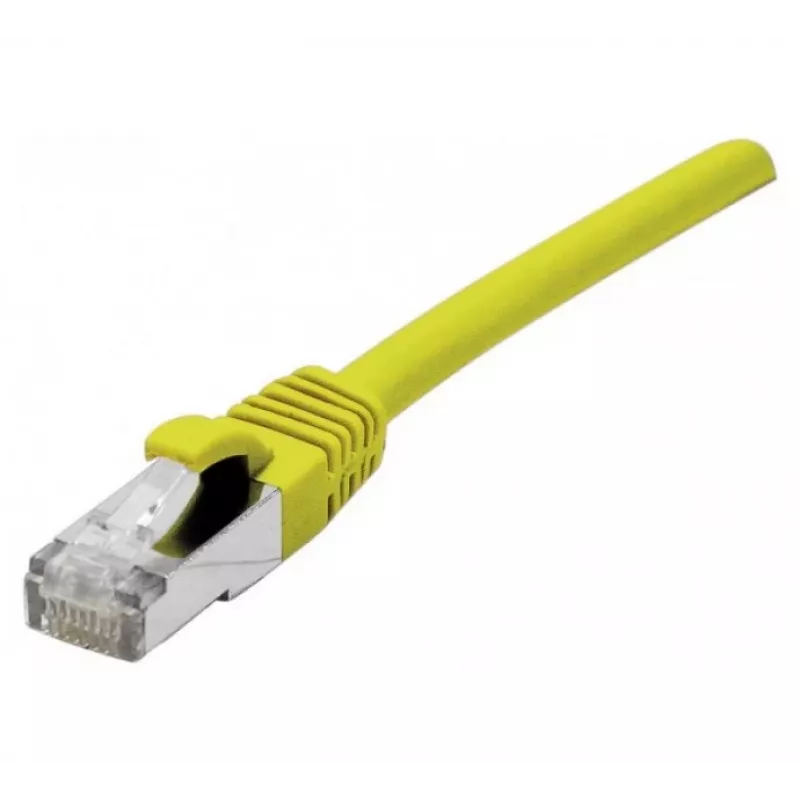

EXERTIS CONNECT Cable de parcheo Cat 6A S/FTP, 3 m, amarillo 858423

Engineered for 10 Gigabit Ethernet, this EXERTIS CONNECT Cat 6A patch cable delivers up to 500 MHz bandwidth with S/FTP shielding to eliminate crosstalk and EMI. The 3-meter yellow cable features slim snagless boots for easy routing in dense patch panels.

Overview

This patch cable meets Cat 6A standards (EIA/TIA 568-C.2, ISO/IEC 11801, EN 50173) and is constructed with stranded copper conductors (AWG 26/7) for flexibility. Gold-plated RJ45 connectors ensure reliable connections, while the LSZH jacket provides low smoke and halogen-free safety.

What stands out

• S/FTP (PiIMF) shielding: each pair individually foil-shielded plus overall braid for maximum noise immunity.
• 10 Gbps data transfer rate supports high-speed networking up to 500 MHz.
• Slim snagless boot design prevents connector damage and eases cable management.
• Halogen-free LSZH jacket with Eca fire rating for safer installations.

Technical details

• Cable type: Patch cable, Cat 6A (Class EA)
• Shielding: S/FTP (Screened Foiled Twisted Pair) / PiIMF
• Length: 3.0 m
• Color: Yellow
• Connectors: RJ45 male to RJ45 male, gold-plated contacts
• Conductor: Copper, AWG 26/7 stranded
• Jacket: LSZH (Low Smoke Zero Halogen), halogen-free
• Bandwidth: 500 MHz
• Data rate: 10 Gbps
• Wiring: TIA/EIA 568B
• Outer diameter: 6.0 mm
• Fire rating: Eca

Our verdict

A high-performance Cat 6A cable with robust shielding and a slim profile, ideal for 10G networks where space and signal integrity matter.
