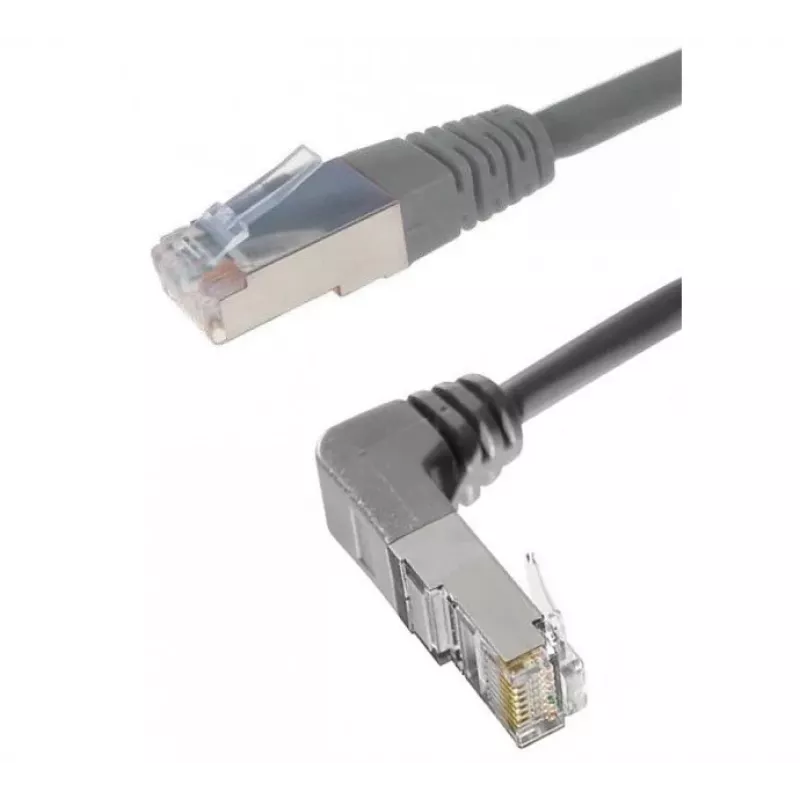

Exertis Connect cable de parcheo Cat. 6A S/FTP, en ángulo a recto, gris, 2 m 854304

In dense network racks, standard patch cables often block access to adjacent ports or force tight bends that degrade signal quality. This Exertis Connect Cat. 6A patch cable solves that with one angled RJ45 connector, letting you route cleanly in high-density patch panels and switches without sacrificing performance.

Who is it for

Network administrators, data center technicians, and AV integrators who need reliable 10 Gigabit links in cramped spaces. The angled connector is especially useful for patch panels with vertical port rows or switches mounted close to cable managers.

Main features

• Cat. 6A performance: supports 10GBASE-T up to 500 MHz bandwidth, future-proofing your network.
• S/FTP shielding (PiMF): each pair is foil-wrapped and the overall cable is braid-shielded, reducing alien crosstalk in high-interference environments.
• One angled RJ45 connector (90°) and one straight connector: angled end fits tight spaces; straight end connects to equipment normally.
• LSZH jacket: low smoke zero halogen, safe for use in enclosed spaces where fire safety is critical.
• Snagless boot design: protects the locking tab from accidental snags during cable routing.
• Stranded copper conductors (AWG 26/7): flexible and durable for frequent patching.

Specifications

• Cable type: Ethernet Patch Cable
• Category: Cat. 6A (Class EA)
• Shielding: S/FTP (PiMF)
• Length: 2.0 m
• Colour: Grey
• Connector 1: RJ45 male, angled (90°)
• Connector 2: RJ45 male, straight
• Data transfer rate: up to 10 Gbps
• Bandwidth: up to 500 MHz
• Conductor material: Copper
• Conductor gauge: AWG 26/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Wiring standard: TIA/EIA-568B
• PoE support: PoE, PoE+, PoE++
• Operating temperature: -20°C to 60°C

Tips

When using angled connectors, plan your cable routing so the angled end plugs into the patch panel or switch port that is hardest to reach. This reduces strain on the cable and keeps your rack tidy.
