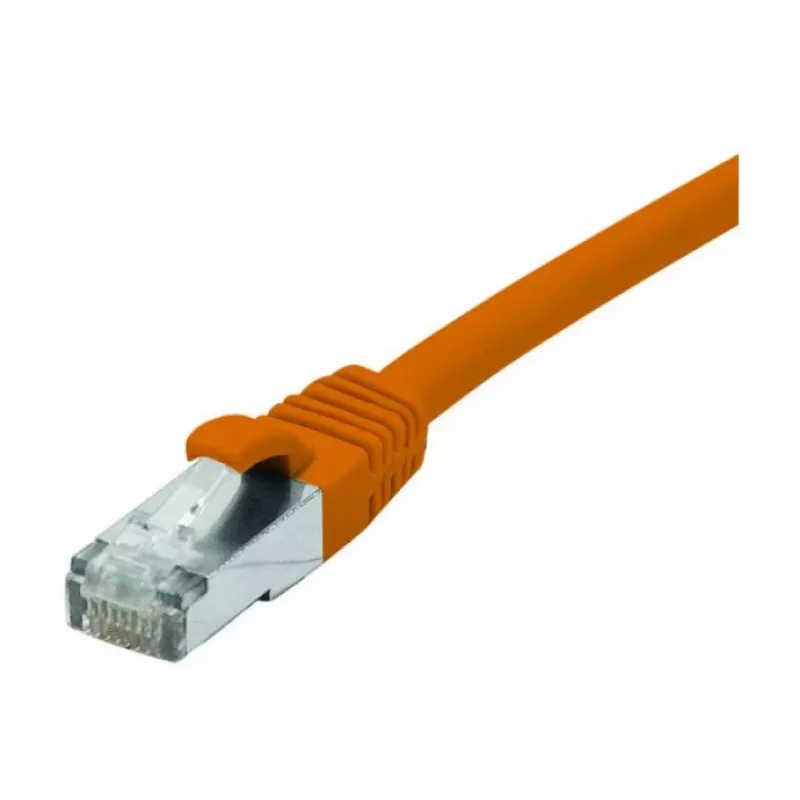

EXERTIS CONNECT Cable de red Cat. 6 F/UTP, PoE, LSZH, naranja, 3,0 m 854424

Network installations in offices and data centres often suffer from electromagnetic interference, which degrades signal quality and causes downtime. This EXERTIS CONNECT patch cable solves that problem with F/UTP shielding, an overall foil screen that protects the twisted pairs from external noise. The orange LSZH jacket is halogen-free and low-smoke, making the cable suitable for areas where fire safety is a concern.

Who is it for

IT technicians, network administrators, and system integrators who need a reliable, shielded Cat. 6 connection for PoE devices such as IP cameras, wireless access points, and VoIP phones. The latch protection prevents the connector clip from snagging or breaking during moves, adds, and changes.

Main features

• Cat. 6 performance up to 250 MHz and 1 Gbps data transfer
• F/UTP shielding: overall foil screen reduces EMI/RFI interference
• Supports PoE, PoE+, and PoE++ for powering devices over the same cable
• Halogen-free LSZH jacket for low smoke and toxic gas emission in fire
• Gold-plated RJ45 connectors with latch protection for durability
• Stranded copper conductors (AWG 26/7) for flexibility and easy routing

Specifications

• Length: 3.0 m
• Colour: Orange
• Cable type: Patch cable, Cat. 6
• Shielding: F/UTP (Foiled/Unshielded Twisted Pair)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• PoE support: PoE, PoE+, PoE++
• Connector type: RJ45 (8P8C), gold-plated (3 µm)
• Conductor: Copper, AWG 26/7 stranded
• Bandwidth: 250 MHz
• Data transfer rate: 1 Gbps
• Wiring standard: TIA/EIA 568B
• Operating temperature: -20°C to +60°C

Tips

For best performance, avoid sharp bends and do not exceed the minimum bend radius. When routing through cable trays, keep the patch cable away from power lines to further reduce interference. The latch protection allows repeated plugging and unplugging without damaging the connector clip.
