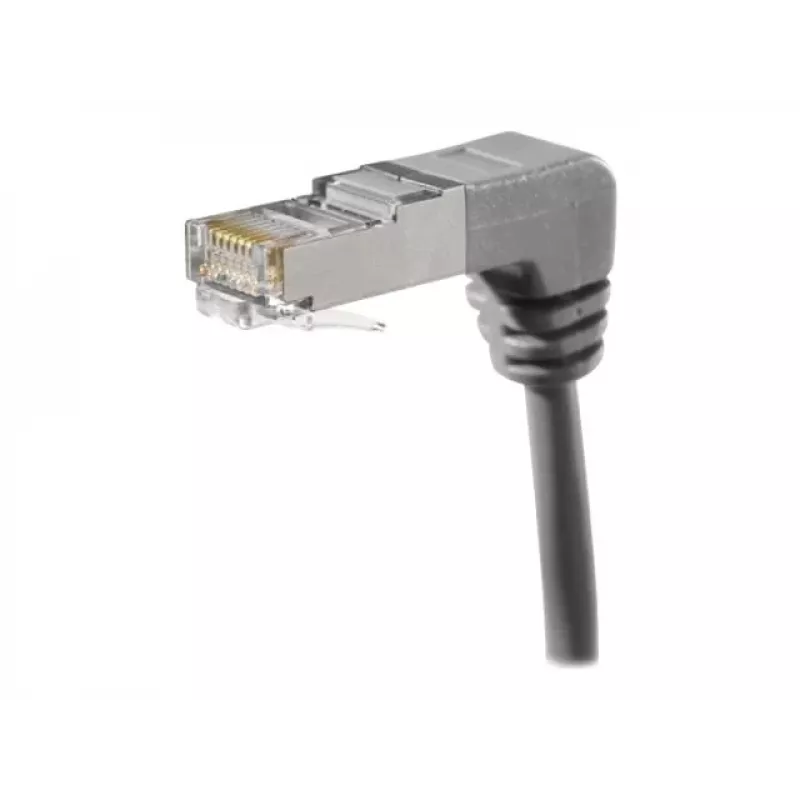

EXERTIS CONNECT Cable de red Cat.6A S/FTP, en ángulo hacia abajo, gris, 0,3 m 854286

In high-density patch panels or cramped network cabinets, the EXERTIS CONNECT Cat.6A S/FTP Patch Cable with downward-angled connectors keeps connections tidy and accessible. Its 0.3 m length is ideal for short links between adjacent ports, while the grey LSZH jacket blends into professional environments.

Key specifications

• Category: Cat.6A (Class EA)
• Shielding: S/FTP (PIMF)
• Length: 0.3 m
• Connector orientation: Both ends angled downwards
• Data transfer rate: Up to 10 Gbps
• Bandwidth: Up to 500 MHz
• Conductor: Copper, 26/7 AWG stranded
• Jacket material: LSZH
• Wiring standard: TIA/EIA 568B
• Connector plating: Gold-plated contacts (50µm)

Why choose it

The angled connectors reduce cable bend radius and strain, improving airflow and cable management in dense racks. S/FTP shielding with individually foiled pairs and overall braid provides excellent immunity to alien crosstalk, ensuring reliable 10GBASE-T performance even in noisy environments.

Ideal use cases

• Short patch connections in server rooms and data centers
• High-density patch panels where space is limited
• 10 Gigabit Ethernet links requiring robust shielding

Good to know

The LSZH jacket emits low smoke and no halogen in case of fire, making it suitable for public buildings and confined spaces. The snagless molded boot protects the locking tab during frequent re-patching.
