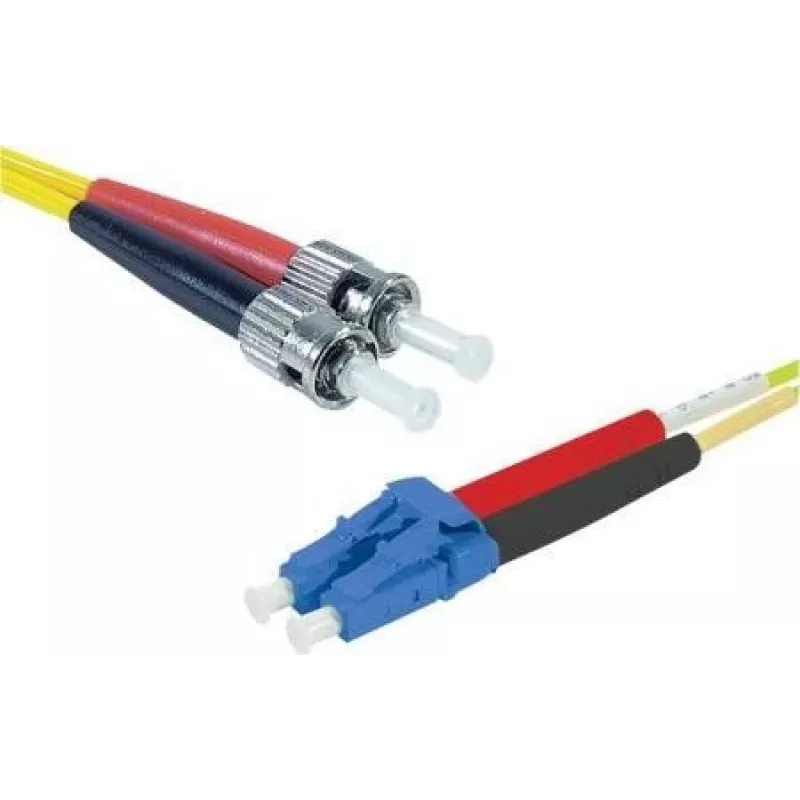

EXERTIS CONNECT cable de red de fibra óptica ST/UPC a LC/UPC monomodo dúplex OS2 LSZH, 3 m, amarillo

Unlike standard patch cables that compromise on signal integrity or safety, this EXERTIS CONNECT fiber optic patch cable delivers pristine single-mode transmission with a halogen-free jacket, making it ideal for data centers, telecommunications rooms, and enterprise LANs where performance and fire safety are non-negotiable.

Highlights

• Single-mode OS2 fiber with 9/125 µm core/cladding for long-distance, high-bandwidth links
• ST/UPC male to LC/UPC male connectors with ultra physical contact polish for minimal insertion loss (≤0.3 dB) and high return loss (≥50 dB)
• Duplex design with two fibers for bidirectional communication
• LSZH (Low Smoke Zero Halogen) yellow jacket reduces toxic smoke and corrosive gases in case of fire
• 3-meter length offers flexibility for rack-to-rack or device-to-patch panel connections
• Compliant with TIA/EIA-568-C.3, ISO/IEC 11801, and EN 50173-1 standards; RoHS and REACH compliant

In daily use

This cable ensures stable, low-latency connections for high-speed data, voice, and video over long distances. The yellow LSZH jacket is easy to identify in dense cable trays and meets stringent fire safety regulations for indoor installations. The UPC connectors are factory polished and tested to guarantee consistent performance, while the duplex configuration supports full-duplex transmission without crosstalk. Operating temperature range from -20°C to 70°C allows deployment in a variety of environments, from air-conditioned server rooms to less controlled spaces.

Full specifications

• Product Type: Fiber Optic Patch Cable
• Fiber Mode: Single-mode
• Fiber Class: OS2
• Connector Type A: ST/UPC Male
• Connector Type B: LC/UPC Male
• Cable Length: 3 m
• Fiber Core Diameter: 9 µm
• Fiber Cladding Diameter: 125 µm
• Number of Fibers: Duplex (2 Fibers)
• Jacket Material: LSZH (Low Smoke Zero Halogen)
• Cable Color: Yellow
• Connector Polish: UPC (Ultra Physical Contact)
• Insertion Loss (Max): ≤ 0.3 dB
• Return Loss (Min): ≥ 50 dB
• Application: Data Center, Telecommunications, LAN
• Operating Temperature: -20°C to 70°C
• Storage Temperature: -40°C to 85°C
• Standards Compliance: TIA/EIA-568-C.3, ISO/IEC 11801, EN 50173-1
• RoHS Compliant: Yes
• REACH Compliant: Yes

Final note

For reliable, high-performance fiber connectivity with safety and compliance built in, this EXERTIS CONNECT patch cable is a dependable choice for any professional network infrastructure.
