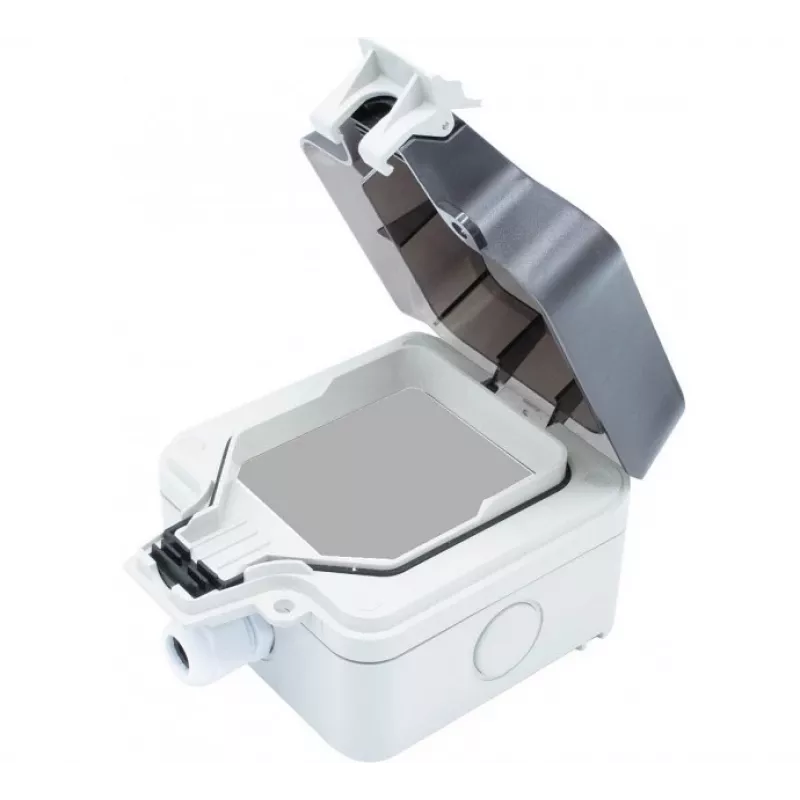

Exertis Connect Caja exterior de superficie IP66, 1 módulo, gris claro RAL 7035 (273049)

Surface-mounted outdoor enclosure with IP66 protection, designed for a single module in industrial and harsh environments. The light grey housing (RAL 7035) is made of UV-resistant ABS and withstands impacts up to IK08.

Advantages

Pre-punched cable entries for M20/M25 glands simplify installation. The screwable opaque lid and halogen-free material ensure durability and safety in demanding conditions.

Suitable for

• Outdoor electrical installations
• Industrial control and automation
• Harsh environments with dust and water exposure

Key specifications

• Protection class: IP66
• Material: ABS, halogen-free, UV-resistant
• Impact resistance: IK08
• Operating temperature: -25°C to +60°C
• Flammability rating: UL94-V2
• Rated insulation voltage: 690 V
• Glow wire test: 650°C
• Cable entries: 7x M20/M25 pre-punched

Recommendations

Pair with M20 or M25 cable glands for a secure, weatherproof installation.
