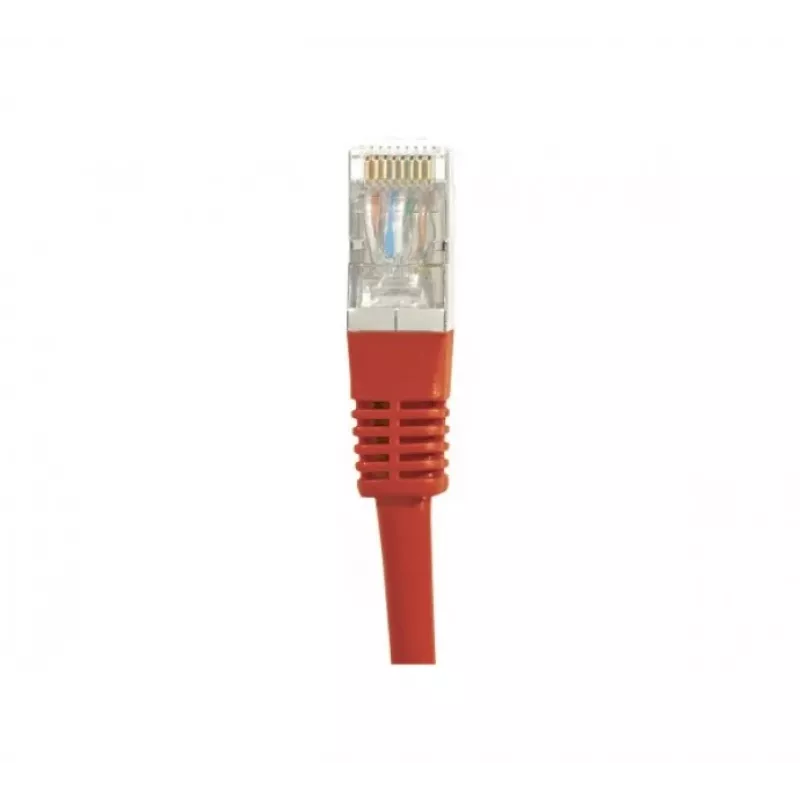

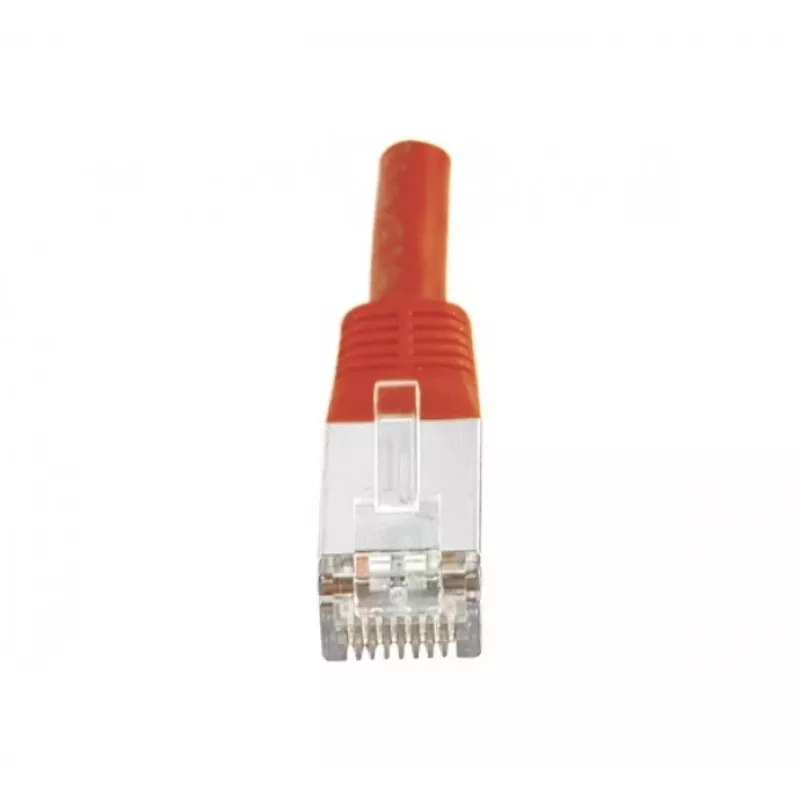

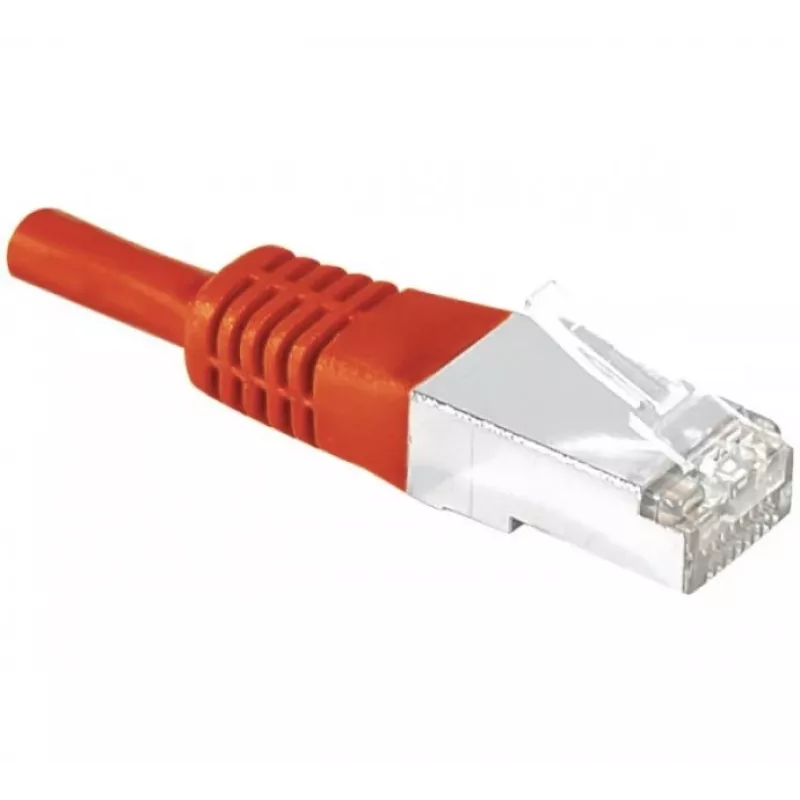

EXERTIS CONNECT Cat.6 S/FTP cable de red, PiMF, rojo, 5,0 m 856883

This EXERTIS CONNECT patch cable stands out with its slim bend protection, designed to fit into tight spaces behind desks and patch panels where standard boots would obstruct. The S/FTP shielding with PiMF (pairs in metal foil) ensures reliable performance in electrically noisy environments.

Highlights

• Cat.6 performance up to 250 MHz, supporting Gigabit Ethernet
• S/FTP shielding: overall braid plus foil around each pair (PiMF) for superior crosstalk resistance
• Slim molded boot for easy insertion and removal in high-density installations
• LSZH jacket: low smoke and halogen-free for safer indoor use
• Gold-plated RJ45 connectors (3µ) for consistent connectivity

In daily use

With a length of 5 meters, this red cable is ideal for connecting computers, switches, routers, and other network devices in offices or server rooms. The stranded copper conductors (AWG 27/7) provide flexibility for routing around corners, while the robust construction ensures long-term durability.

Full specifications

• Category: CAT.6
• Shielding: S/FTP (Screened Foiled Twisted Pair)
• Conductor shielding: PiMF (Pairs in Metal Foil)
• Length: 5.0 m
• Colour: Red
• Connector type: RJ45 (8P8C) on both ends
• Connector plating: Gold-plated (3µ)
• Conductor material: Copper
• Conductor gauge: AWG 27/7 (stranded)
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Bend protection: Slim, molded boot
• Wiring standard: TIA/EIA 568B
• Bandwidth: 250 MHz
• Data transfer rate: Up to 1000 Mbps (Gigabit Ethernet)
• Halogen free: Yes
• Flame retardant: Yes
• PoE support: Yes (Power over Ethernet)
• Compliance: RoHS, REACH, ISO/IEC 11801, EN 50173, TIA/EIA 568-C.2

Final note

For installations where space is limited and interference is a concern, this cable offers a reliable solution without compromising on performance.
