EXERTIS CONNECT Cat 6A S/FTP cable de parcheo, violeta, 3,0 m, Slim Snagless Boot 858519

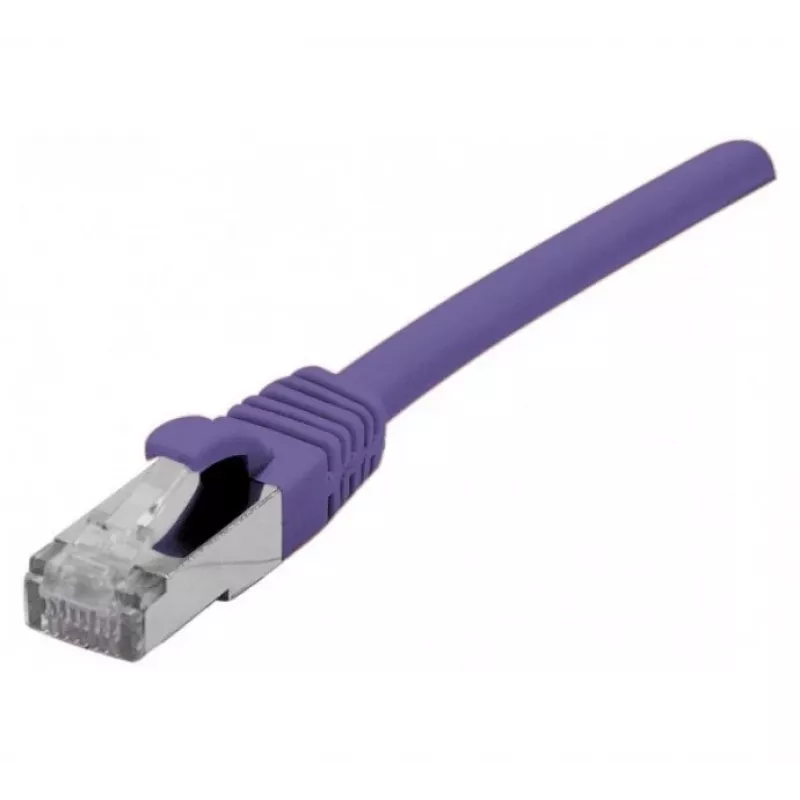

This violet Cat 6A patch cable stands out with its slim snagless boot, designed to protect the locking tab while fitting easily into high-density patch panels and tight spaces. The S/FTP shielding with pairs in metal foil (PiMF) ensures reliable 10 Gigabit Ethernet performance even in electrically noisy environments.

Highlights

• Cat 6A performance up to 500 MHz bandwidth
• S/FTP shielding: overall braid plus foil on each pair
• Gold-plated RJ45 connectors (50µ") for corrosion resistance
• LSZH jacket: low smoke, zero halogen, flame retardant
• Slim snagless boot reduces snagging during moves and changes

In daily use

The 3-metre length is ideal for connecting workstations, servers, or switches in structured cabling systems. Stranded AWG 26/7 copper conductors provide flexibility for frequent re-routing, while the 100 Ohm impedance and TIA/EIA 568B wiring ensure compatibility with all Ethernet standards up to 10GBASE-T.

Full specifications

• Cable length: 3.0 m
• Cable standard: Cat 6A (Class EA)
• Cable shielding: S/FTP (PIMF)
• Cable type: Ethernet Patch Cable
• Connector type: RJ45 Male to RJ45 Male
• Connector plating: Gold-plated contacts (50µ")
• Conductor material: Copper (Cu)
• Conductor gauge: AWG 26/7 stranded
• Jacket material: LSZH (Low Smoke Zero Halogen)
• Boot type: Slim Snagless (Bend Protection)
• Data transfer rate: Up to 10 Gigabit Ethernet (10GBASE-T)
• Bandwidth: Up to 500 MHz
• Wiring standard: TIA/EIA 568B
• Standards compliance: ISO/IEC 11801, EN 50173, EIA/TIA 568-C.2
• Halogen free: Yes
• Flame retardant: Yes (IEC 60332-1-2)
• Operating temperature: -20°C to 60°C
• Outer diameter: Approx. 6.0 mm
• Impedance: 100 Ohm

Final note

Engineered for high-density environments where space is at a premium, this cable delivers 10G performance without the bulk of traditional boots.
