Exertis Connect Cat. 6A S/FTP (PiMF) Cable de conexión, en ángulo a recto, gris, 0,7 m 854302

10 Gigabit Ethernet performance in a compact 0.7 m link: this Cat. 6A patch cable combines S/FTP shielding with PiMF pair isolation to deliver up to 500 MHz bandwidth for high-density network environments.

Overview

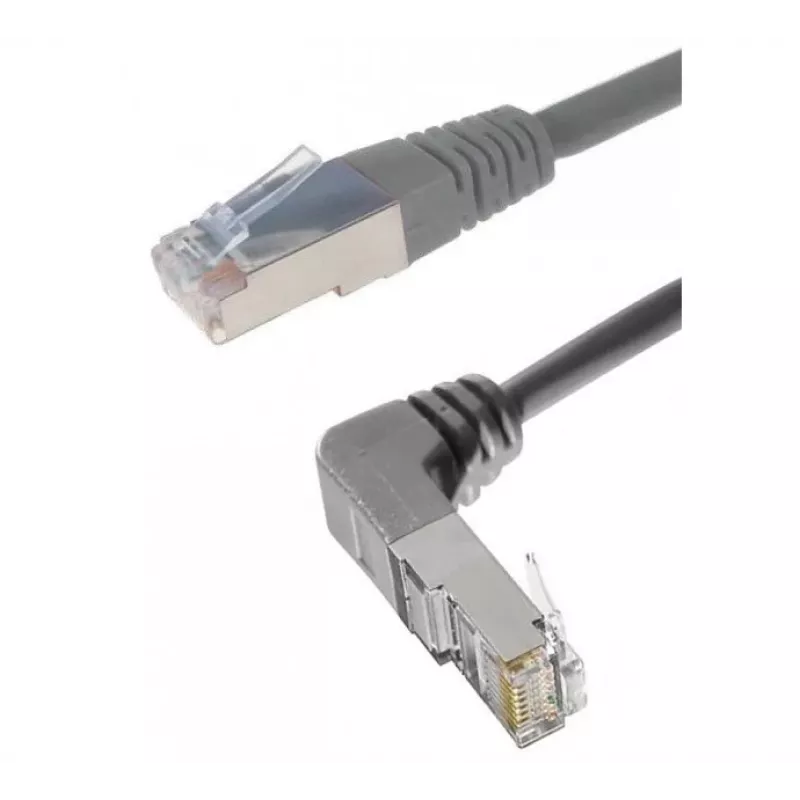

The Exertis Connect 854302 is a Category 6A patch cable with an angled RJ45 connector on one end and a straight connector on the other, finished in grey. Its S/FTP construction (braided screen plus foil around each pair) and PiMF (pairs in metal foil) provide superior protection against alien crosstalk and EMI, making it suitable for 10GBASE-T applications up to 0.7 m.

What stands out

• Angled connector saves space behind patch panels and in tight cabinets.
• Gold-plated contacts ensure reliable signal integrity.
• Molded snagless boots protect the locking tab during installation.
• Supports Power over Ethernet (PoE, PoE+, 4PPoE).

Technical details

• Cable standard: Cat. 6A
• Shielding: S/FTP (PiMF)
• Length: 0.7 m
• Colour: Grey
• Connector 1: RJ45 male, angled (90°)
• Connector 2: RJ45 male, straight
• Data transfer rate: 10 Gbps
• Bandwidth: 500 MHz
• Conductor material: Copper
• Contact plating: Gold
• Jacket material: PVC
• Wiring scheme: TIA/EIA-568B
• PoE support: PoE, PoE+, 4PPoE
• Boot type: Molded, snagless

Our verdict

A short, high-performance patch cable with an angled connector that simplifies cabling in space-constrained racks.
