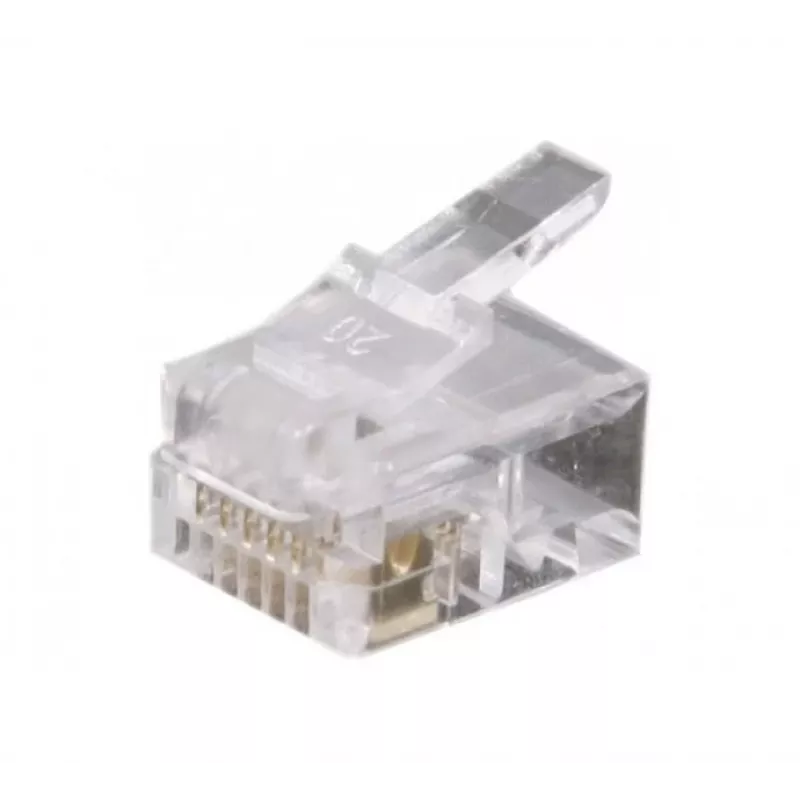

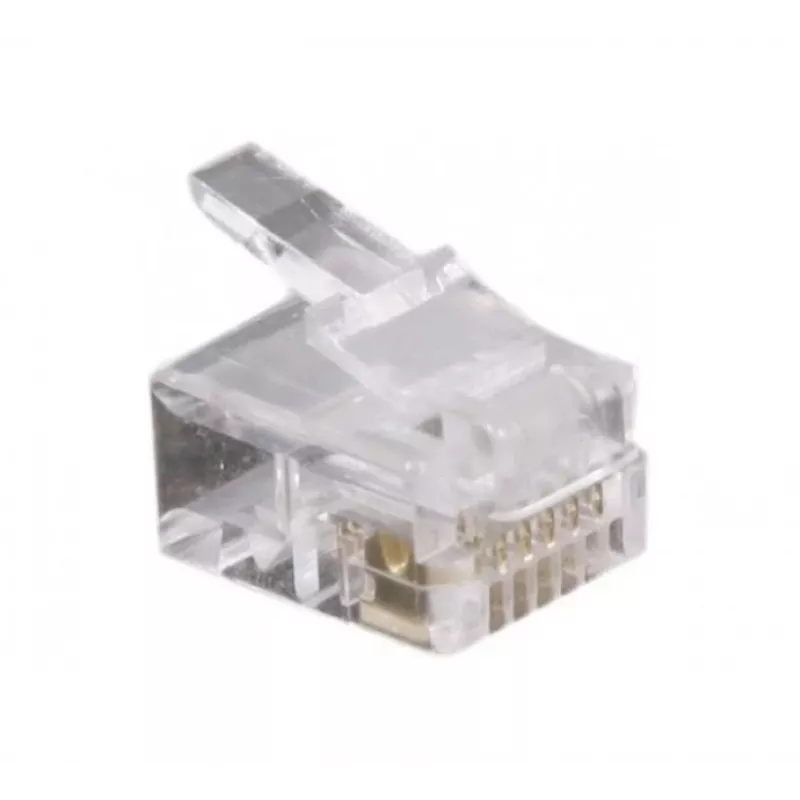

Exertis Connect conector modular RJ12 para cable plano, no apantallado, 6P6C, pack de 10 (920630)

When you need to terminate flat modular cables with a reliable RJ12 connector, these unshielded 6P6C plugs provide a straightforward crimp-on solution. They are sold in a pack of 10, ideal for small repairs or prototyping in telecommunications and data networking.

Who is it for

Technicians and hobbyists who work with flat modular cables and require a standard RJ12 interface for voice or low-speed data connections.

Main features

• RJ12 connector with 6 positions and 6 contacts (6P6C)
• Unshielded design for flat cable termination
• Crimp-on installation method
• Pack of 10 connectors

Specifications

• Connector type: Modular plug
• Connector standard: RJ12
• Pin configuration: 6P6C
• Shielding: Unshielded
• Cable type compatibility: Flat cable
• Number of pieces: 10
• Application: Telecommunication, data networking
• Installation method: Crimp-on
• Contact material: Phosphor bronze
• Contact plating: Gold-plated
• Housing material: Polycarbonate (PC)
• Colour: Transparent
• Gender: Male
• Product series: Connect

Tips

Use a dedicated RJ12 crimping tool to achieve a secure connection. Ensure the flat cable is properly aligned before crimping to avoid miswiring.
