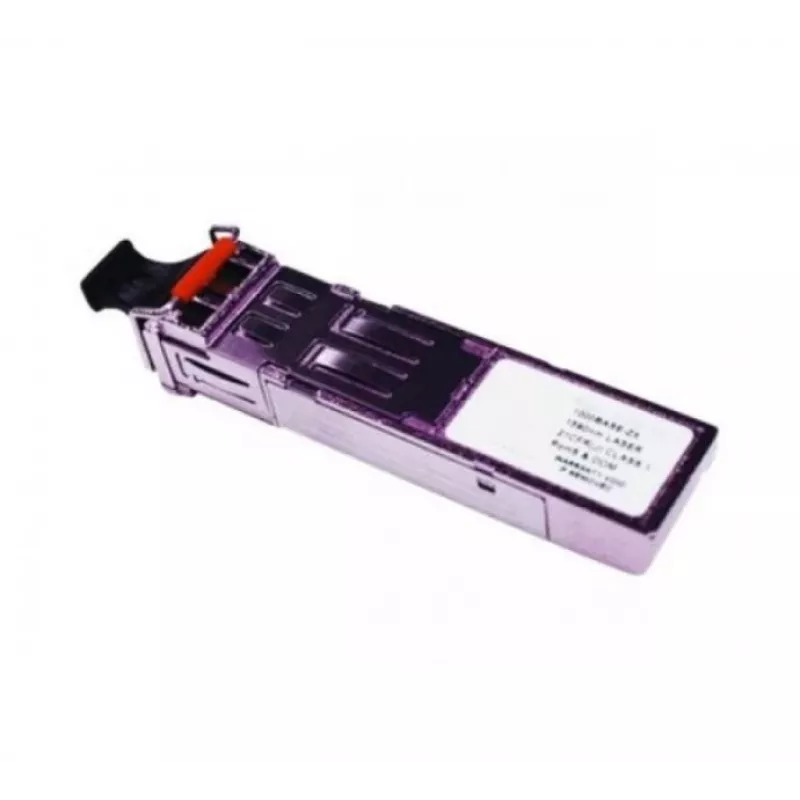

EXERTIS CONNECT módulo transceptor SFP+ 10GbE 10GBase-LR 1310 nm LC dúplex monomodo 10 km 311776

Data centers and enterprise networks often need to bridge distances up to 10 kilometers over existing single-mode fiber without replacing switches or adding costly equipment. The EXERTIS CONNECT SFP+ transceiver module solves this by converting an SFP+ slot into a 10GBase-LR port, delivering 10 Gbps Ethernet over a 1310 nm wavelength with an LC duplex connector.

Who is it for

Network engineers and IT administrators who manage high-speed backbone links, storage area networks (SANs), or long-haul connections between buildings. It is compatible with any MSA-compliant switch, router, or network interface card that accepts SFP+ modules.

Main features

• 10 Gbps data rate for bandwidth-intensive applications
• 10GBase-LR standard with 1310 nm DFB laser for single-mode fiber
• Maximum transfer distance of 10 km
• LC duplex connector for reliable fiber termination
• Hot-swappable for zero-downtime installation
• Digital diagnostics monitoring (DDM/DOM) for real-time status
• Operating temperature range 0°C to 70°C

Specifications

• Module type: SFP+
• Data rate: 10 Gbps
• Ethernet standard: 10GBase-LR
• Wavelength: 1310 nm
• Fiber type: Single-mode fiber (SMF)
• Connector: LC duplex
• Max distance: 10 km
• DDM/DOM support: Yes
• Hot-swappable: Yes
• Interface: Ethernet
• Compliance: MSA Compliant
• Operating temperature: 0°C to 70°C
• Power supply: 3.3V
• Laser type: DFB
• Application: Data Center, Enterprise Networking, SAN

Tips

Ensure your equipment supports SFP+ and 10GBase-LR. Use single-mode fiber with LC connectors. For distances beyond 10 km, consider an ER or ZR module. Always follow proper fiber cleaning procedures to maintain signal integrity.
