EXSYS EX-1012 caja de expansión externa con 4 ranuras PCI y tarjeta host PCIe x1

The EXSYS EX-1012 adds four conventional PCI slots to a computer through the included PCI Express x1 host card. The external metal enclosure accommodates compatible 5 V and 3.3 V PCI I/O cards such as serial, parallel, USB or FireWire interface cards.

• Computer connection: included PCIe x1 host adapter.
• Expansion: four PCI slots, conforming to PCI Bus revision 2.3.
• Included external power adapter: 12 V DC, 3 A.
• Box power input supports 12–24 V DC.
• Included interconnect cable length: 1 m.
• Power and cable-connection status LEDs.

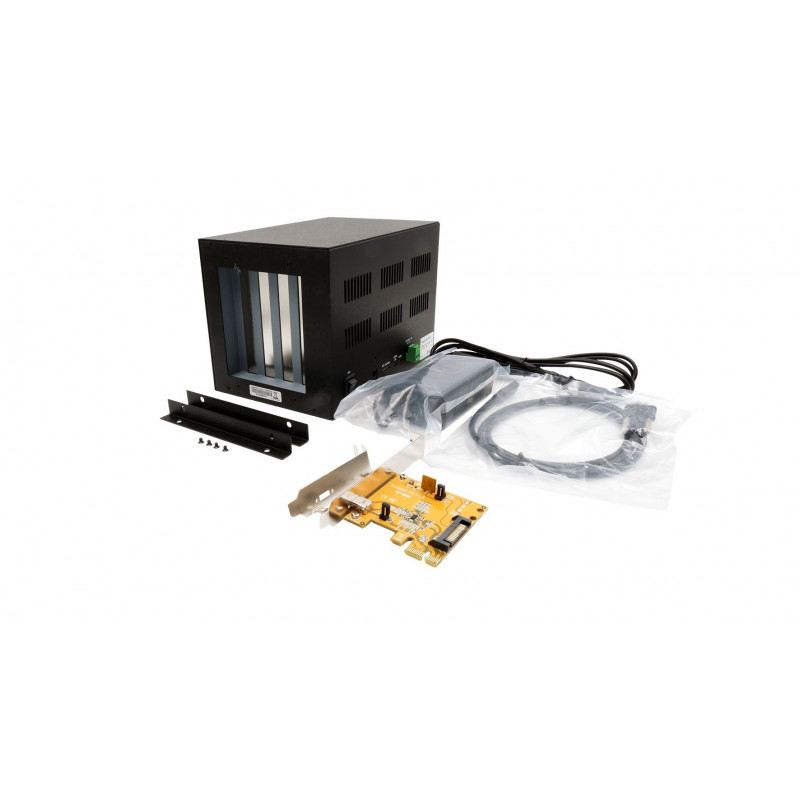

The USB-C-shaped cable is used only to connect the expansion box to its supplied PCIe host card. The box cannot be connected directly to an ordinary USB-C port on a laptop or desktop. The expansion hardware itself needs no additional driver; installed PCI cards may require their own drivers. The package contains the enclosure, PCIe host card, low-profile bracket, interconnect cable, power adapter and manual.
