EXSYS EX-1181HMS hub USB 3.2 Gen 1 de 4 puertos con protección contra sobretensión ESD de 15kV, montaje en carril DIN/pared

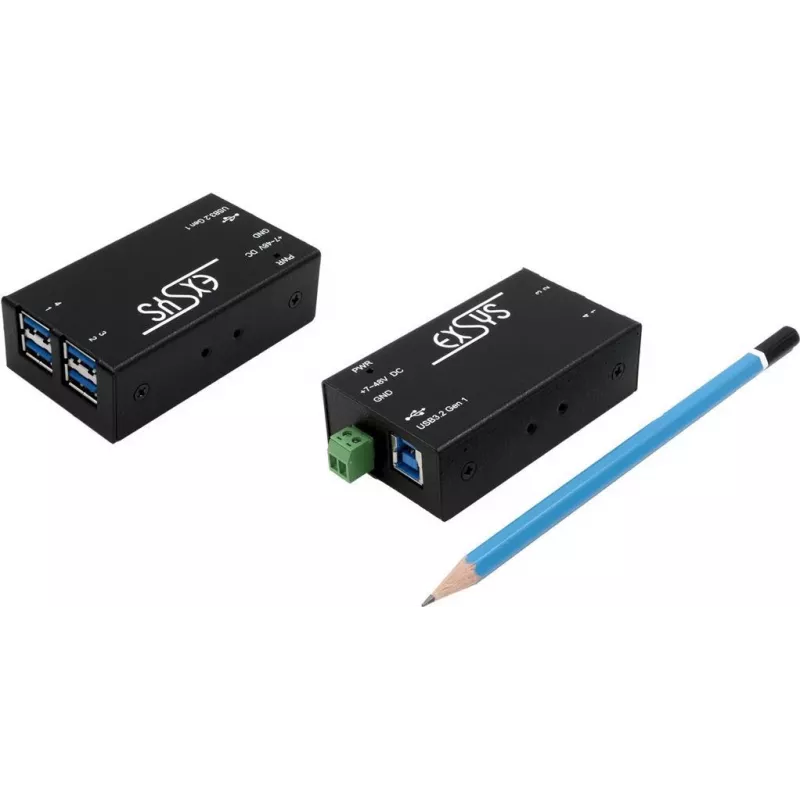

The EXSYS EX-1181HMS is a robust industrial USB 3.2 Gen 1 hub designed for demanding environments. It provides four USB 3.2 Gen 1 Type-A downstream ports and one USB Type-B upstream port, delivering data transfer speeds up to 5 Gbps. With a wide input voltage range of 9-48V DC via terminal block, it offers flexible power options. The hub features 15kV ESD and 2.5kV surge protection, ensuring reliable operation in industrial settings. Its aluminium housing supports DIN rail and wall mounting, and it operates in temperatures from -40°C to 85°C.

Advantages

Industrial-grade durability with high ESD and surge protection, wide power input range, and extended temperature tolerance make this hub ideal for factory automation, IoT gateways, and embedded systems. The Renesas uPD720210 chipset ensures stable performance across Windows, Linux, and macOS.

Suitable for

• Industrial automation and control systems
• Embedded computing and IoT applications
• Digital signage and kiosks
• Test and measurement equipment

Key specifications

• USB Standard: USB 3.2 Gen 1 (5 Gbps)
• Downstream Ports: 4 x USB Type-A
• Upstream Port: 1 x USB Type-B
• Power Input: DC 9-48V via terminal block
• ESD Protection: 15kV Air, 8kV Contact
• Surge Protection: 2.5kV
• Housing: Aluminium
• Mounting: DIN Rail, Wall Mount
• Operating Temperature: -40°C to 85°C
• Chipset: Renesas uPD720210
• Max Current per Port: 900 mA

Recommendations

For mission-critical applications requiring reliable USB expansion in harsh environments, the EXSYS EX-1181HMS delivers exceptional protection and flexibility. Pair with a compatible power supply for optimal performance.
