EXSYS EX-49150 adaptador tipo D RJ45 hembra a hembra, CAT.5e

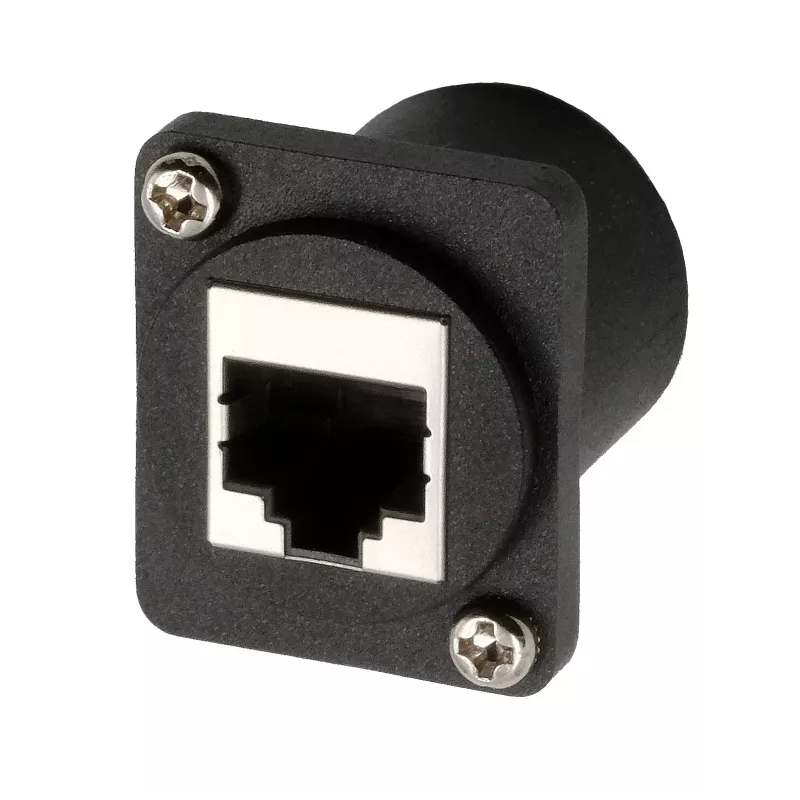

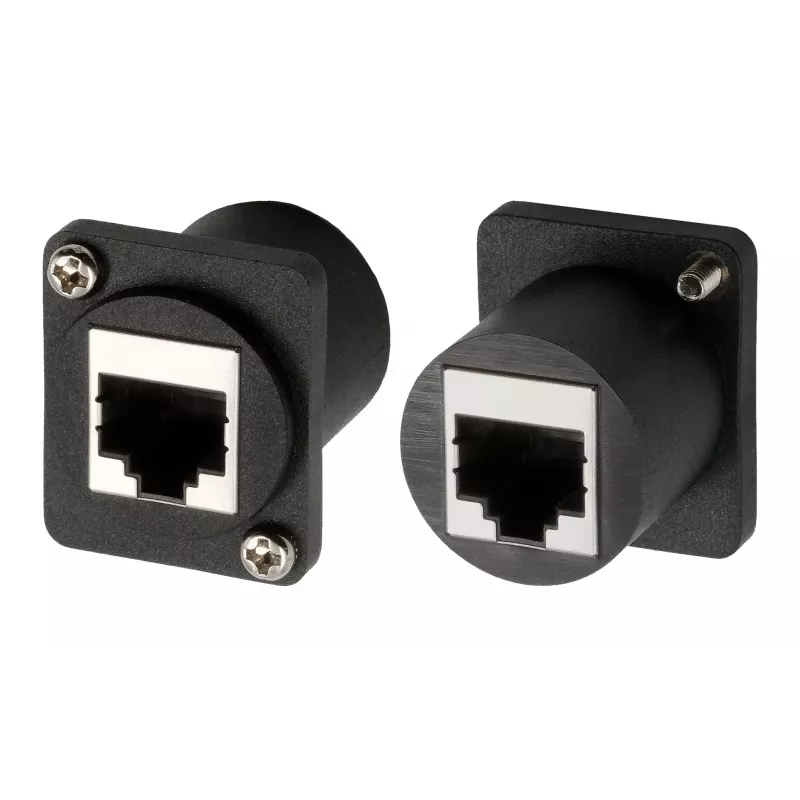

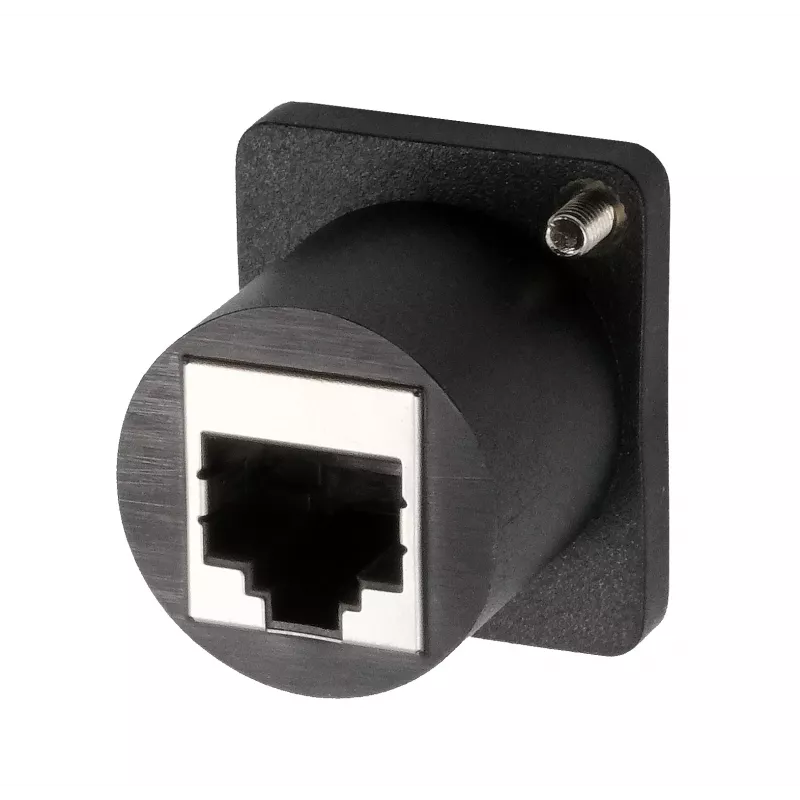

Connecting two Ethernet cables in a fixed installation often requires a reliable coupler that can be mounted on a panel or enclosure. The EXSYS EX-49150 D-Type Adapter provides a shielded RJ45 female-to-female connection rated for CAT.5e, enabling a stable gigabit link without the need for a bulky inline coupler.

Who is it for

This adapter is intended for network installers, system integrators, and AV technicians who need a panel-mount RJ45 coupling solution for patch panels, wall plates, custom enclosures, or audio/video racks. It is suitable for both professional and home networking projects where a durable, shielded connection is required.

Main features

• RJ45 female to RJ45 female coupler for extending Ethernet connections.
• CAT.5e rating supports data transfer rates up to 1000 Mbps (1 Gigabit Ethernet).
• Shielded design (STP/FTP) reduces electromagnetic interference.
• D-Type panel mount form factor for secure installation in panels or enclosures.
• Metal housing (nickel-plated zinc alloy) with gold-plated contacts for reliable connectivity.
• Backward compatible with CAT.5 and CAT.3 cabling.

Specifications

• Product type: RJ45 coupler / adapter
• Connector type (port 1): RJ45 female
• Connector type (port 2): RJ45 female
• Category rating: CAT.5e
• Mounting type: D-Type panel mount
• Shielding: Shielded (STP/FTP)
• Data transfer rate: Up to 1000 Mbps (1 Gigabit Ethernet)
• Housing material: Metal (nickel-plated zinc alloy)
• Contact plating: Gold-plated
• Color: Silver (metallic)
• Standard compliance: TIA/EIA 568-C.2
• Operating temperature: -20°C to 70°C
• Insulation resistance: >500 MΩ
• Dielectric withstanding voltage: 1000V AC RMS
• Current rating: 1.5 Amps max.
• Contact resistance: <20 mΩ

Tips

When installing, ensure the panel cutout matches the D-Type dimensions for a secure fit. Use shielded cables to maintain the shielding continuity and achieve optimal performance. For best results, pair with CAT.5e or higher rated cabling.
