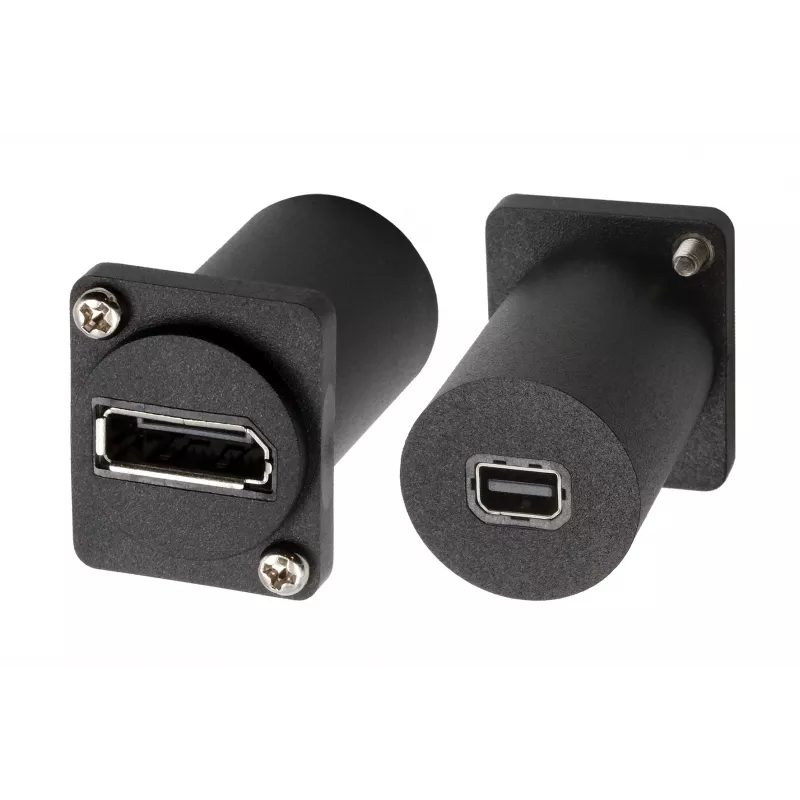

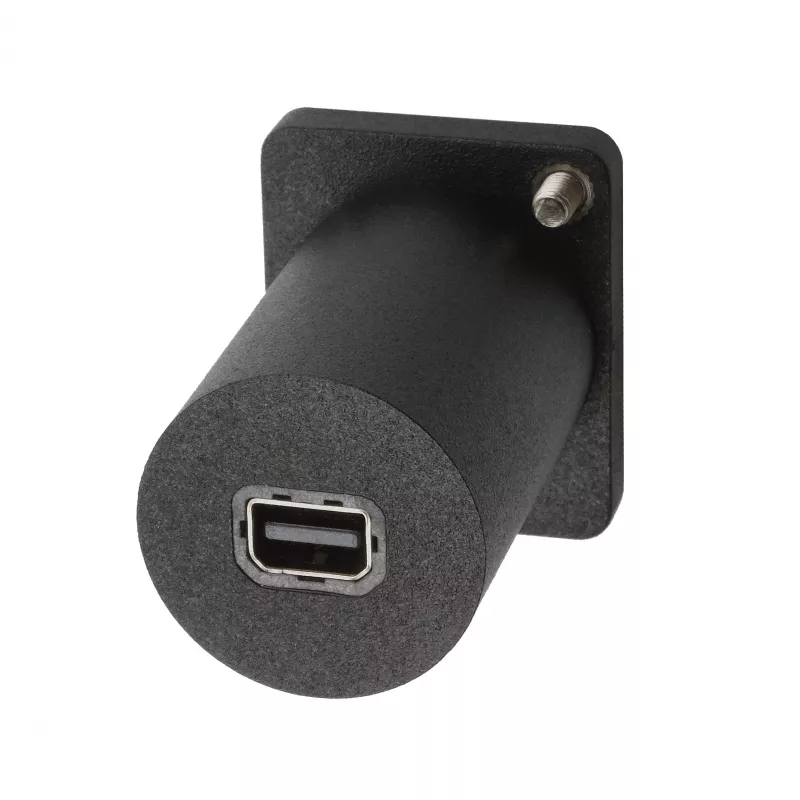

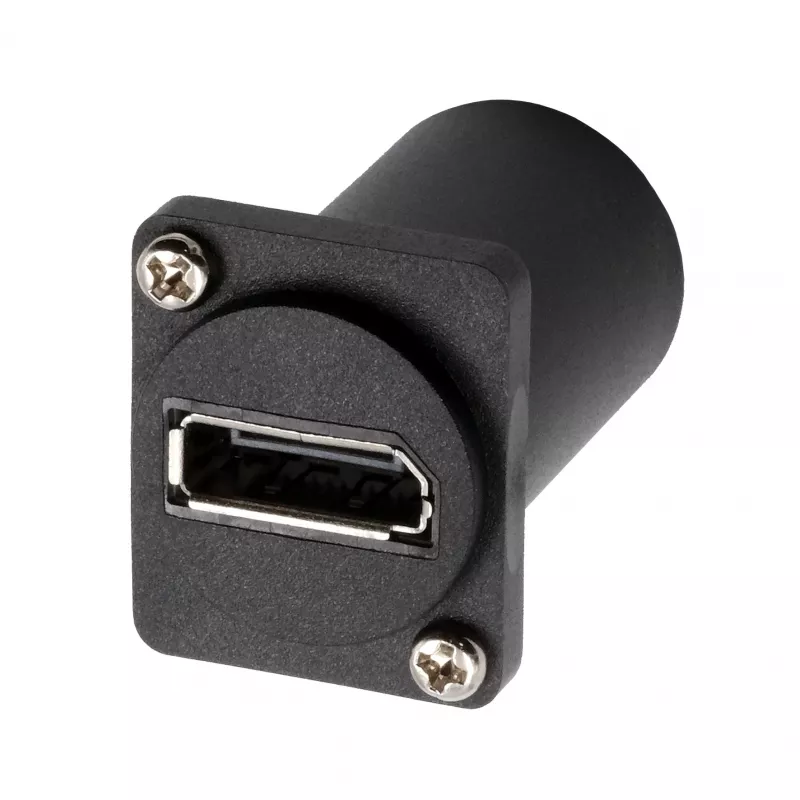

EXSYS EX-49170 Adaptador de montaje DisplayPort a Mini DisplayPort hembra, 4K UHD

This D-type panel mount adapter converts a DisplayPort 1.2 female port to a Mini DisplayPort 1.2 female port, enabling secure connections in tight spaces. With support for 4K UHD at 60 Hz and 21.6 Gbit/s bandwidth, it delivers high-resolution video and audio for professional AV installations.

Advantages

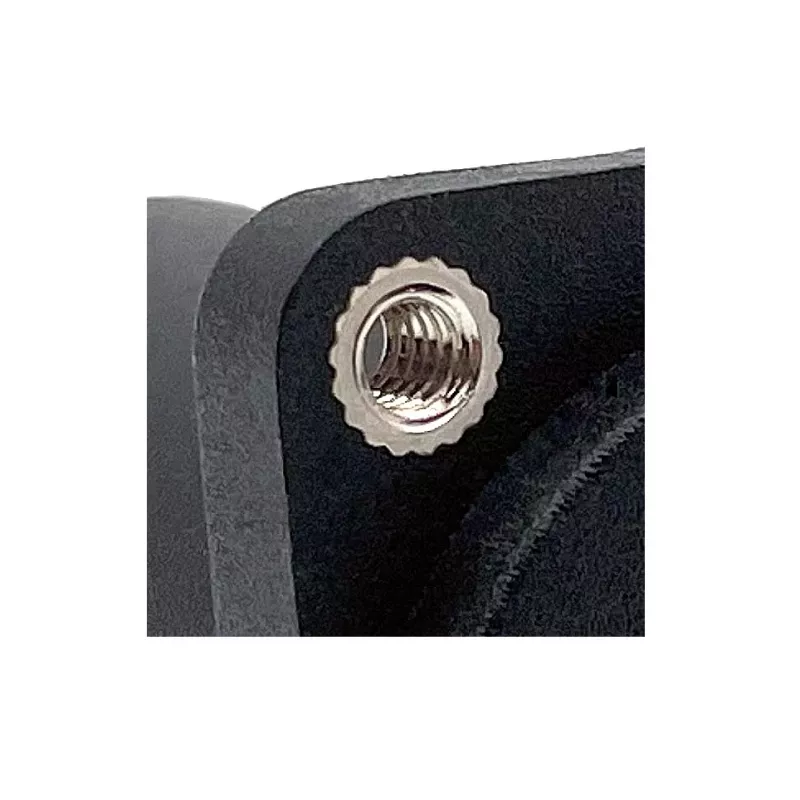

The nickel-plated brass housing provides durability and reliable signal integrity. Screw-in panel mounting ensures a stable, permanent installation, while plug-and-play operation requires no drivers.

Suitable for

• AV racks and control panels
• Digital signage and kiosks
• Industrial equipment with DisplayPort interfaces

Key specifications

• Connector 1: DisplayPort 1.2 female
• Connector 2: Mini DisplayPort 1.2 female
• Max resolution: 3840 x 2160 (4K UHD) at 60 Hz
• Bandwidth: 21.6 Gbit/s (HBR2)
• HDCP and audio support
• Material: Nickel-plated brass

Recommendations

Ideal for integrators needing a robust, panel-mounted DisplayPort to Mini DisplayPort conversion with 4K capability.
