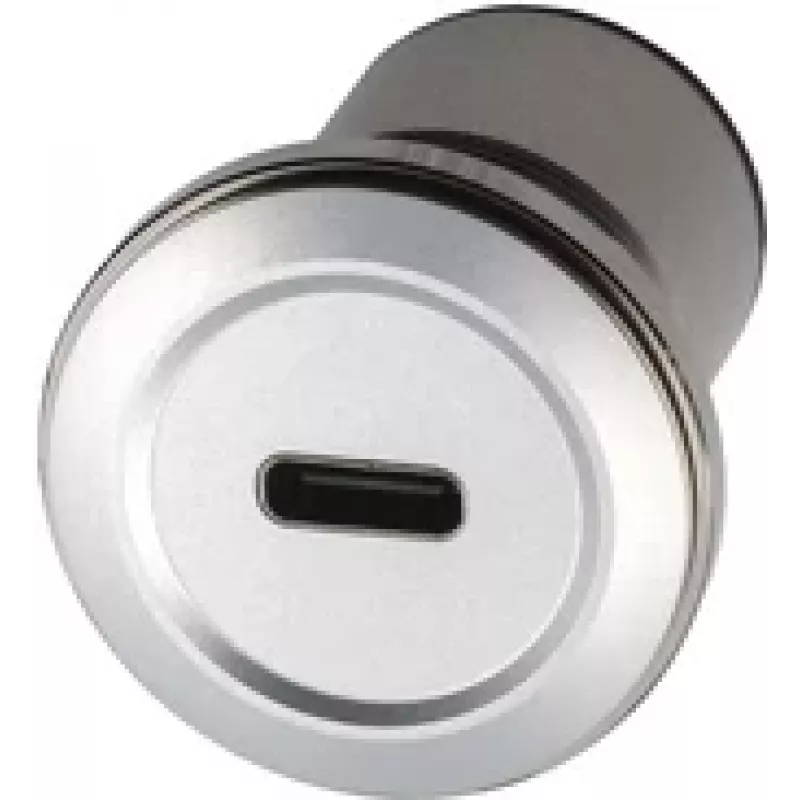

EXSYS EX-49194 Adaptador de empotrar metálico, USB-C hembra a USB-A hembra

Many devices with USB-C ports, such as modern laptops, tablets, or docking stations, need a reliable way to connect to existing USB-A peripherals or cables. The EXSYS EX-49194 panel mount adapter solves this by providing a secure, screw-in USB-C female to USB-A female connection point on any panel, enclosure, or desk.

Who is it for

This adapter is ideal for system integrators, DIY enthusiasts, and professionals who need to add a robust USB-C port to a custom project, server rack, or workstation. It is particularly useful when you need to extend a USB connection through a panel while maintaining a clean, professional appearance.

Main features

• Converts a USB-C female port to a USB-A female port, allowing you to connect USB-A devices to a USB-C host or vice versa.
• Supports USB 3.2 Gen 1 (SuperSpeed USB 5Gbps) for fast data transfer up to 5 Gbps.
• Backward compatible with USB 3.0, USB 2.0, and USB 1.1 devices.
• Durable metal housing ensures long-lasting performance and protection.
• Panel mount design with screw holes for secure installation; mounting hole distance: 20 mm, hole diameter: 3 mm.
• Compact size fits standard panel cutouts (approx. 22 x 22 mm).
• Black colour blends seamlessly with most equipment.

Specifications

• Connector 1: USB-C Female
• Connector 2: USB-A Female
• USB Standard: USB 3.2 Gen 1 (5 Gbps)
• Data Transfer Rate: Up to 5 Gbps
• Housing Material: Metal
• Mounting Type: Panel Mount (Screw-in)
• Mounting Hole Distance: 20 mm
• Mounting Hole Diameter: 3 mm
• Recommended Panel Cutout: 22 x 22 mm
• Colour: Black
• Operating Temperature: -20°C to 70°C

Tips

When installing, ensure the panel cutout is clean and deburred to avoid damaging the adapter. Use appropriate screws (not included) that match the 3 mm hole diameter.
