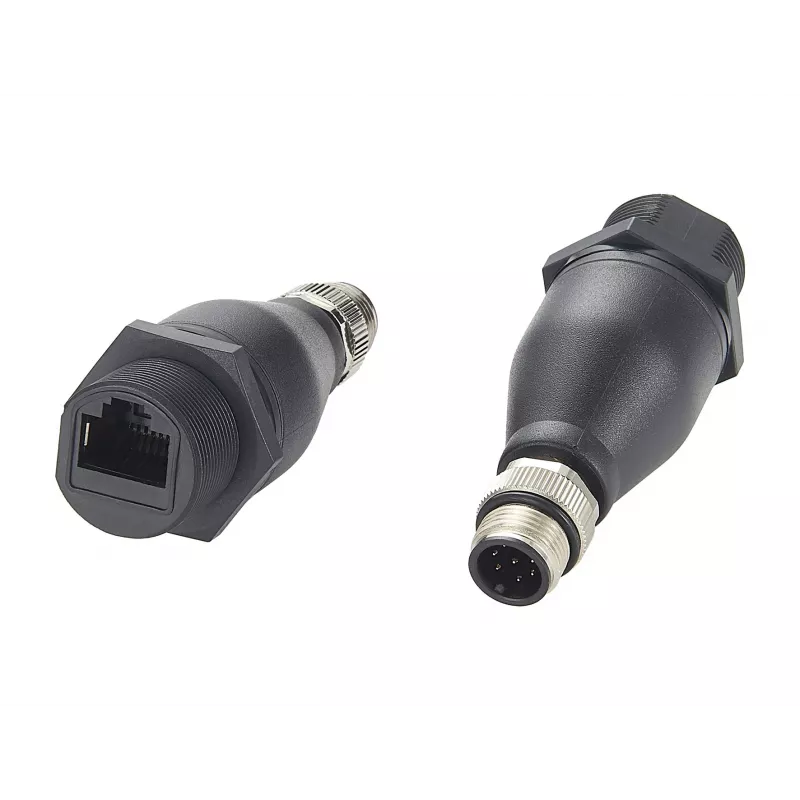

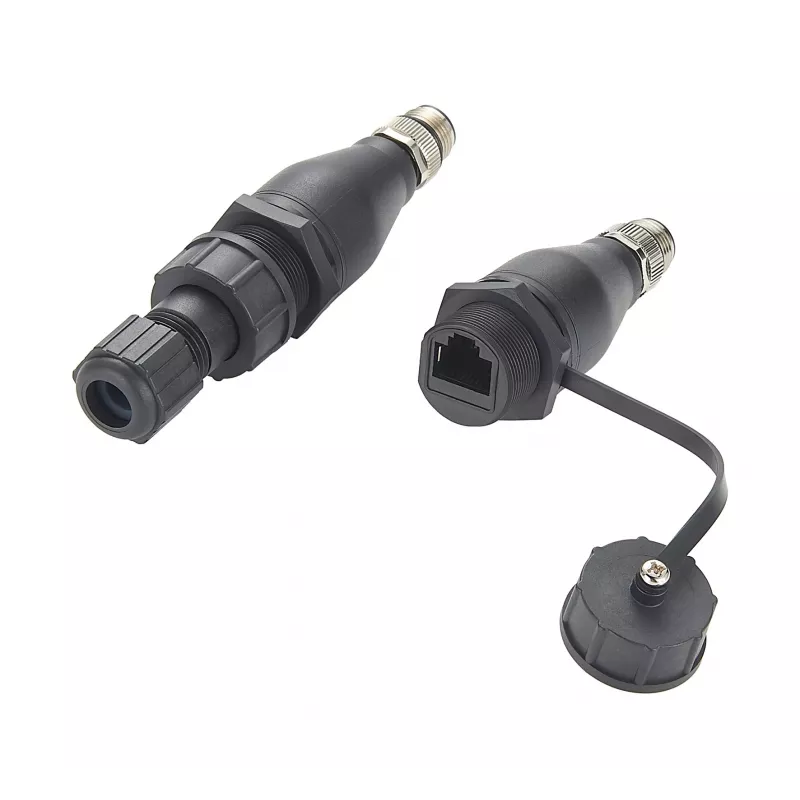

EXSYS EX-49504 M12 codificación A de 8 pines conector macho a conector hembra RJ45 Adaptador Ethernet industrial, IP67

Industrial Ethernet connections often fail when exposed to moisture, dust, or vibration. The EXSYS EX-49504 adapter solves this by providing a rugged, IP67-rated link between M12 A-coded 8-pin male connectors and standard RJ45 female ports. It enables reliable Fast Ethernet (10/100 Mbps) connectivity in harsh environments such as factory floors, outdoor installations, and PROFINET networks.

Who is it for

Automation engineers, system integrators, and maintenance technicians who need to connect industrial devices with M12 interfaces to standard Ethernet infrastructure without compromising ingress protection.

Main features

• M12 A-code 8-pin male to RJ45 female inline adapter
• IP67-rated housing protects against dust and temporary immersion
• Supports Fast Ethernet (10/100 Mbps) for industrial control and PROFINET applications
• Shielded design reduces electromagnetic interference
• Operating temperature range: -25°C to +85°C
• Voltage rating: 30V DC; current rating: 1.5A per pin
• Industrial-grade plastic/metal housing for durability

Specifications

• Connector 1: M12 A-code, male, 8-pin
• Connector 2: RJ45, female
• Ingress Protection: IP67
• Supported Ethernet Speed: Fast Ethernet (10/100 Mbps)
• Application: Industrial Ethernet, Network Connectivity, PROFINET
• Housing Material: Industrial Grade Plastic / Metal
• Operating Temperature Range: -25°C to +85°C
• Shielding: Yes
• Mounting Type: Inline Adapter
• Colour: Black / Silver
• Voltage Rating: 30V DC
• Current Rating: 1.5A per pin
• Standards Compliance: RoHS, CE

Tips

Pair with pre-terminated M12 cables to quickly extend industrial Ethernet links. Ensure mating connectors are also IP67-rated to maintain the protection level.
