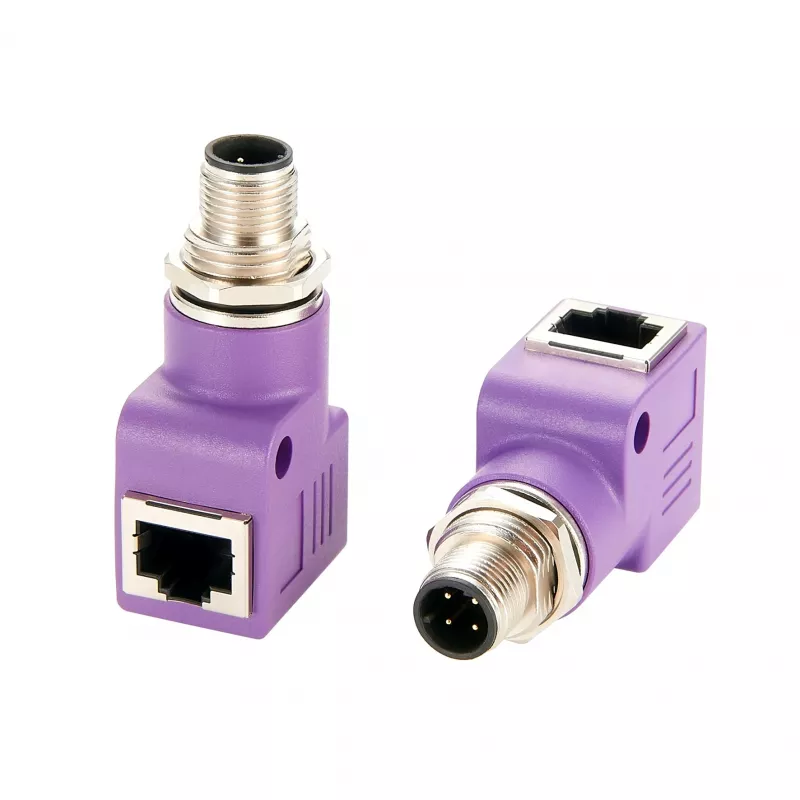

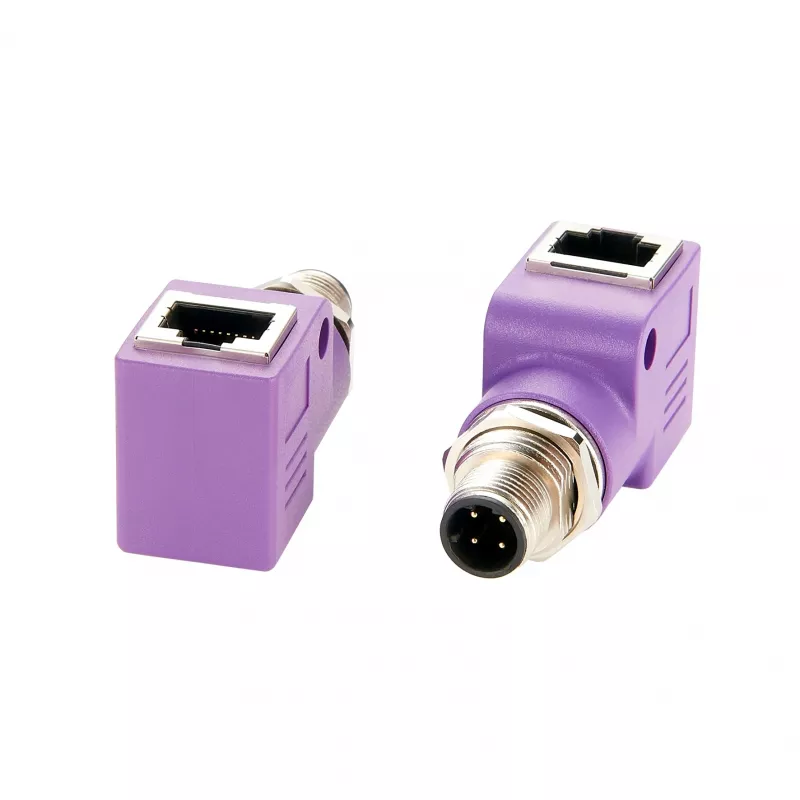

EXSYS EX-49522 adaptador industrial Ethernet de conector macho M12 D-Code de 4 pines a conector hembra RJ45 en ángulo de 90°

Connect industrial Ethernet devices with confidence using this rugged M12 D-coded adapter. The 90° angled design saves space in tight installations while maintaining a secure, shielded connection.

Overview

The EXSYS EX-49522 is a compact adapter that converts a 4-pin M12 D-code male connector to an RJ45 female jack. It supports Fast Ethernet (10/100 Mbps) and is built for demanding industrial environments.

What stands out

• 90° angled orientation for space-constrained setups
• Shielded metal housing (nickel-plated brass) for durability
• IP67 protection when mated, suitable for harsh conditions
• Wide operating temperature range: -25°C to +85°C

Technical details

• Connector 1: M12 D-code, male, 4-pin
• Connector 2: RJ45, female
• Ethernet speed: 10/100 Mbps (Fast Ethernet)
• Housing material: Nickel-plated brass
• Shielding: Shielded
• Mounting type: Cable mount
• Application: Industrial Ethernet, automation, machine vision

Our verdict

A reliable and robust adapter for industrial networking, offering a space-saving angled design and solid performance in challenging environments.
