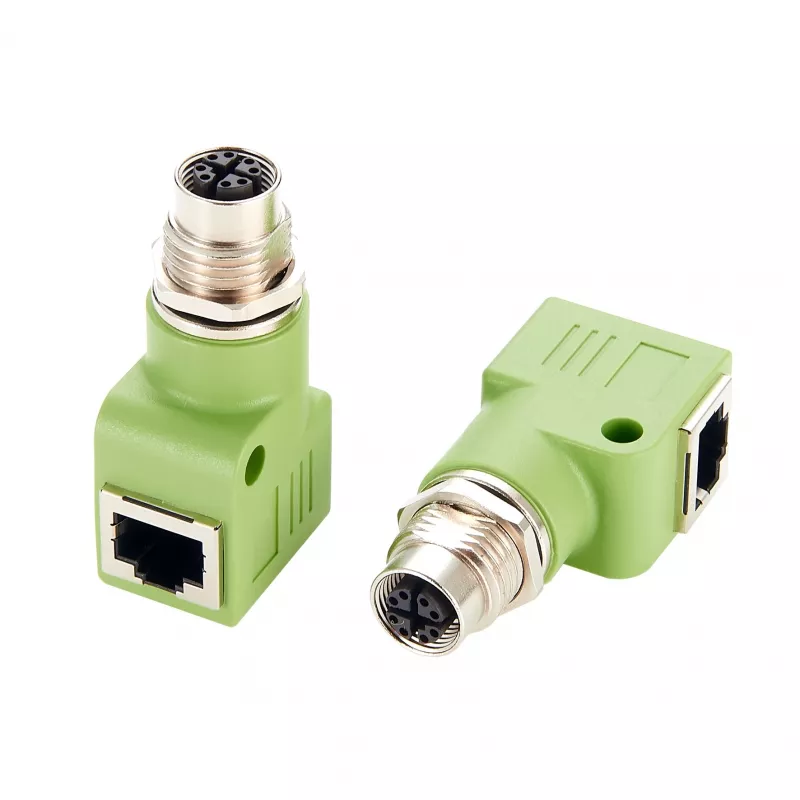

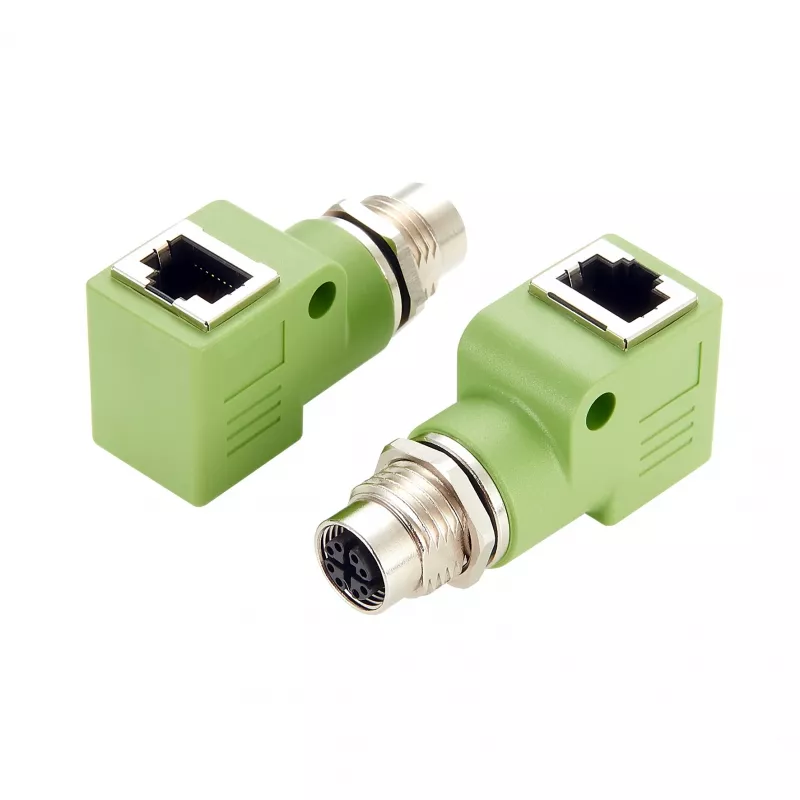

EXSYS EX-49543 Adaptador M12 X-coded 8 pines hembra a RJ45 hembra 90°, 10GbE, IP67

Capable of 10 Gigabit Ethernet, the EXSYS EX-49543 is an industrial-grade adapter engineered for high-speed data transmission in demanding environments. It converts an M12 X-coded 8-pin female connector to an RJ45 female connector with a 90° angled orientation, making it ideal for space-constrained installations.

Overview

The EX-49543 is a shielded adapter designed for industrial Ethernet, automation, and machine vision applications. It features an M12 X-coded 8-pin female connector on one end and an RJ45 female connector on the other, with the RJ45 port angled at 90° for easier cable routing. The adapter complies with IEC 61076-2-109 and supports TIA/EIA-568B wiring, ensuring reliable performance in harsh conditions.

What stands out

• Supports 10 Gigabit Ethernet (10GbE) data transfer rates.
• IP67-rated for protection against dust and water ingress.
• Shielded construction for superior signal integrity.

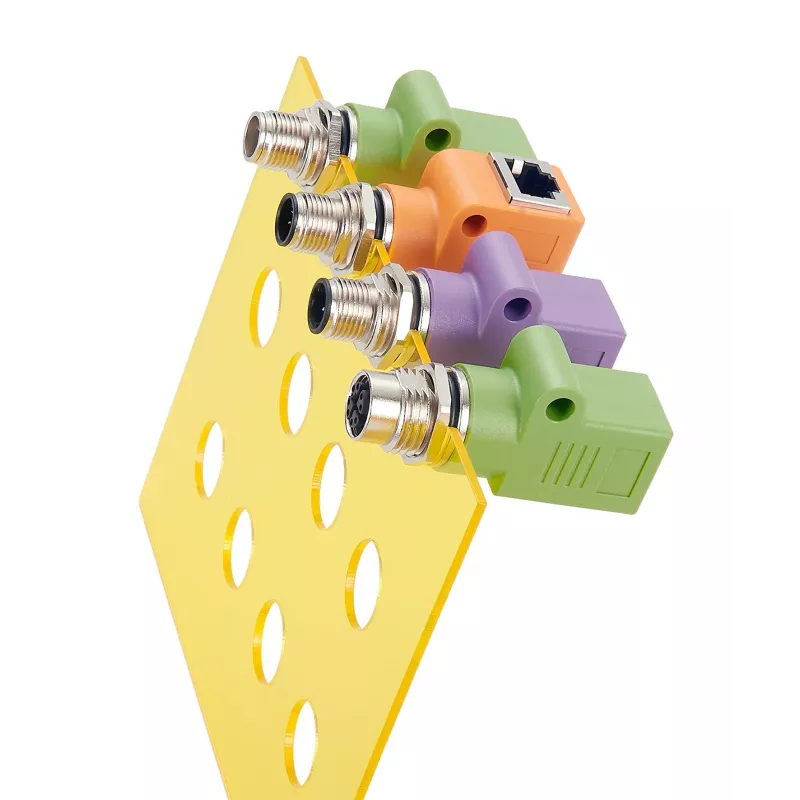

• 90° angled RJ45 connector for flexible installation.
• Robust housing material suitable for industrial use.

Technical details

• Connector 1: M12 X-coded, 8-pin, female.
• Connector 2: RJ45, female, 90° angled.
• Data transfer rate: 10 Gbps.
• Ingress protection: IP67.
• Shielding: Shielded.
• Operating temperature: -25°C to +85°C.
• Standard compliance: IEC 61076-2-109.
• Wiring standard: TIA/EIA-568B.

Our verdict

A reliable and rugged adapter for industrial Ethernet connectivity, delivering high-speed performance and durability in a compact form factor.
