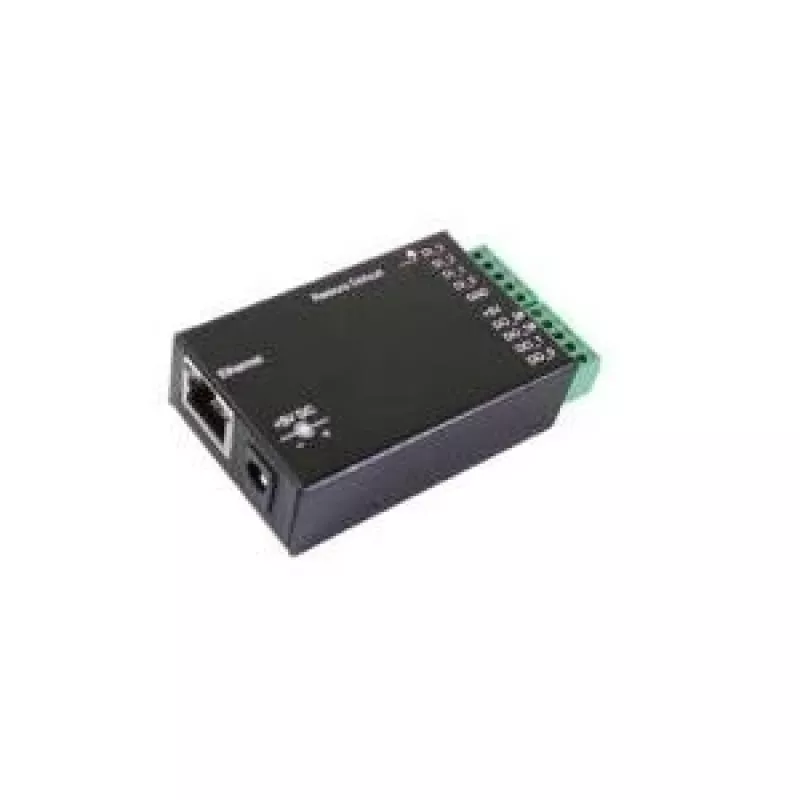

EXSYS EX-6011 Adaptador Ethernet a E/S digital de 8 canales, Modbus TCP, optoaislado, carril DIN

Industrial Ethernet digital I/O adapter with 8 opto-isolated inputs and 8 opto-isolated NPN open collector outputs, delivering reliable remote monitoring and control over 10/100 Mbps Ethernet. The EX-6011 supports Modbus TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, SMTP, and NTP protocols, making it a versatile solution for factory automation, building management, and SCADA systems.

Advantages

Optical isolation of 2.5 kV protects your control system from voltage spikes and ground loops. The wide power input range of +9 to +48 V DC and built-in hardware watchdog ensure stable operation in demanding industrial environments. Configuration is simple via a web interface or Windows utility, and the rugged metal housing mounts easily on a 35 mm DIN rail or wall.

Suitable for

• Remote digital I/O expansion over Ethernet
• Industrial automation and process control
• Building automation and energy management
• SCADA and Modbus TCP networks
• Harsh environments with temperature extremes from -20°C to 70°C

Key specifications

• 8 digital inputs, logic 0: 0–3 V DC, logic 1: 10–30 V DC
• 8 digital outputs, NPN open collector, 5–30 V DC, max 100 mA per channel
• Ethernet: 1 x RJ45, 10/100Base-TX, auto MDI/MDI-X
• Protocols: Modbus TCP, TCP/IP, UDP, HTTP, DHCP, SNMP, SMTP, NTP
• Power: +9 to +48 V DC via terminal block, max 2.5 W
• Isolation: 2.5 kV optical
• Operating temperature: -20°C to 70°C, humidity 5–95% RH non-condensing
• Mounting: DIN-rail (35 mm) or wall mount
• Housing: metal
• LED indicators for power and I/O status

Recommendations

For reliable, cost-effective digital I/O over Ethernet, the EXSYS EX-6011 is an excellent choice. Its opto-isolated design and wide operating temperature range make it suitable for industrial applications where robustness is critical.
