EXSYS inyector PoE++ Gigabit 90W, carcasa metálica, Gigabit Ethernet, 10/100/1000 Mbit/s

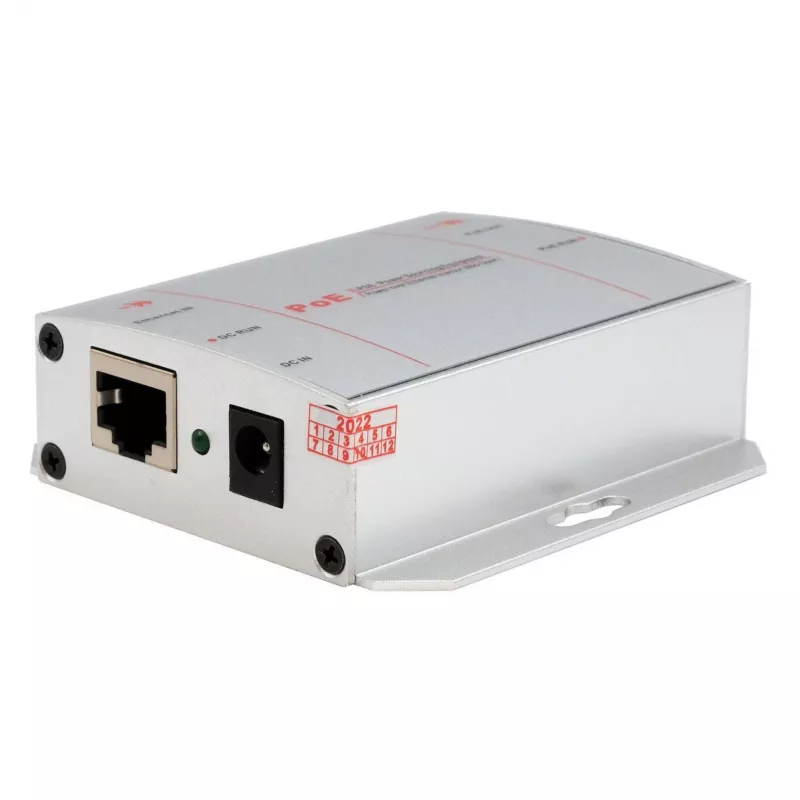

The EXSYS PoE++ Gigabit Injector 90W (EX-60305) is a high-performance Power over Ethernet injector designed to deliver up to 90W of power to IEEE 802.3bt/at/af compliant devices. With its robust metal housing and Gigabit Ethernet support, it is ideal for powering high-demand devices such as PTZ cameras, wireless access points, and VoIP phones.

Advantages

This PoE++ injector provides a reliable and efficient power solution for your network devices. It supports the latest IEEE 802.3bt Type 4 standard, delivering up to 90W over 4-pair cabling. The metal housing ensures durability and heat dissipation, making it suitable for both desktop and wall-mount installations. With plug-and-play functionality, no configuration is required.

Suitable for

• Powering IEEE 802.3bt/at/af compliant devices such as PTZ cameras, wireless access points, and VoIP phones
• Extending network reach where PoE switches are not available
• Industrial and commercial environments requiring robust metal construction

Key specifications

• PoE Standard: IEEE 802.3bt Type 4 PoE++
• Max Power Output: 90W
• Ethernet Data Rate: 10/100/1000 Mbps (Gigabit Ethernet)
• Number of PoE Ports: 1
• Number of Data Ports: 1
• Input Power: AC 100-240V, 50/60Hz
• Output Power Pin Assignment: 8-pin (4-pair)
• Housing Material: Metal
• LED Indicators: Power, PoE In-use
• Operating Temperature: 0 to 50°C (32 to 122°F)
• Storage Temperature: -20 to 70°C (-4 to 158°F)
• Operating Humidity: 5 to 95% (non-condensing)
• Safety Compliance: FCC, CE
• Protection Features: Over-current, Over-voltage, Short-circuit
• Installation Type: Desktop, Wall-mount
• Max Power Consumption: 95W
• Data & Power Output Connector: RJ-45
• Data Input Connector: RJ-45
• PoE Budget: 90W
• Supported PoE Devices: IEEE 802.3bt/at/af compliant PDs

Recommendations

For optimal performance, use with Cat5e or higher cabling. Ensure the connected device is PoE++ compatible to utilize the full 90W power output.
