Extensión activa USB 3.2 Gen.1 InLine, conector macho USB-A a conector hembra USB-C, 10 m

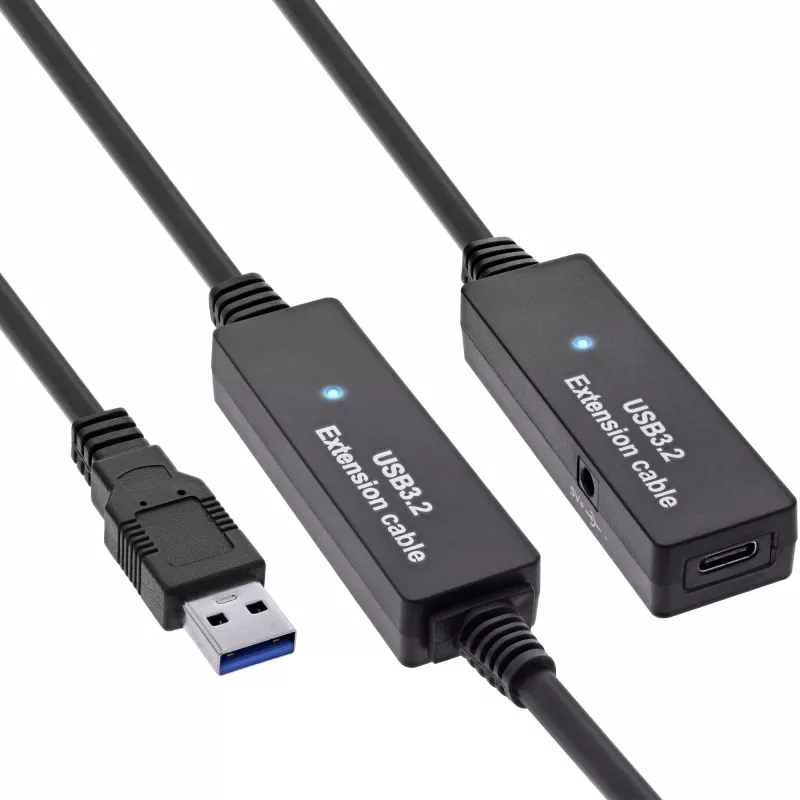

The InLine USB 3.2 Gen.1 active extension cable (USB-A male to USB-C female) extends USB ports up to 10 metres while maintaining signal integrity through integrated electronics. Designed for connections to hard drives, printers, webcams, headsets, mice, keyboards and other USB devices, the cable supports USB 3.2 Gen.1 data rates up to 5 Gb/s and is compatible with Windows 7, macOS 10 and newer. For stable operation at lengths of 10 m and above, a plug-in power supply is included. This product is not cascadable and must not be extended with additional active extensions.

Advantages

The active USB extension provides reliable signal transmission over long distances thanks to built-in electronics, enabling full USB 3.2 Gen.1 throughput (up to 5 Gb/s). It supports hot-plug, Plug and Play operation and includes an external power supply for installations of 10 m and longer. The cable features a USB-A male to USB-C female connection, a plastic black housing and cross-platform compatibility with Windows and macOS.

Suitable for

• Extending connections to external hard drives and SSDs
• Connecting printers and scanners located away from the computer
• Running webcams or headsets at a distance from the PC
• Relocating mice, keyboards and other USB peripherals to convenient positions

Key specifications

• Connector: USB-A male to USB-C female
• USB version: USB 3.2 Gen.1 (up to 5 Gb/s)
• Cable length: 10 m
• Housing material: plastic
• Colour: black
• Operating systems: Windows 7 and newer, macOS 10 and newer

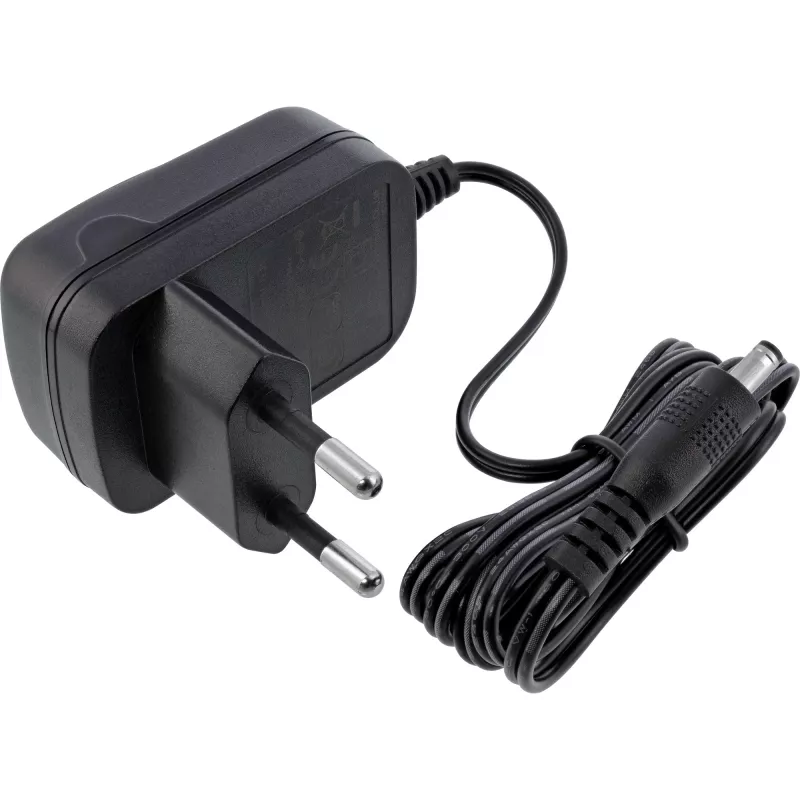

• External power supply: Input 100–240 V AC, 50/60 Hz; Output 5.0 V DC, max 1.0 A (5.0 W)
• Note: Not cascadable; do not connect additional active extensions

How to use

Plug the USB-A male connector into the host computer or hub and connect the USB-C device to the female connector. For lengths of 10 m or more, connect the supplied external plug-in power supply to a mains outlet and to the cable’s power input to ensure stable operation. The cable supports hot-plugging, so devices can be connected or disconnected while the system is running.

Recommendations

For reliable maximum data rates and stable device operation at 10 m, always use the included external power supply. Do not attempt to cascade multiple active extension cables; use a single active extension of the specified length per connection.
