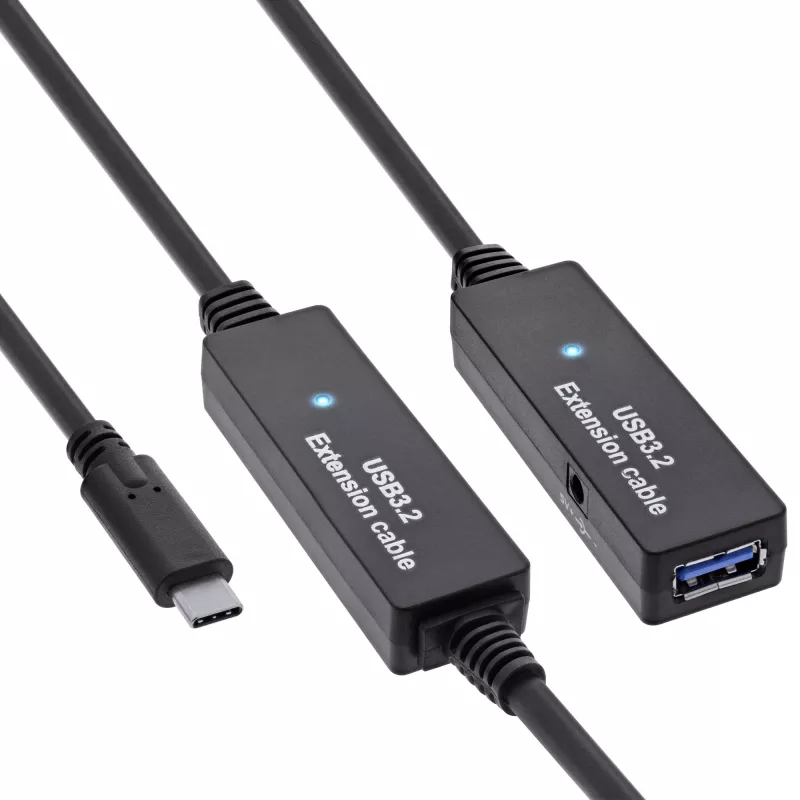

Extensión activa USB 3.2 Gen.1 InLine, conector macho USB-C a conector hembra USB-A, 10 m

The InLine USB 3.2 Gen.1 active extension cable with a USB-C male to USB-A female connection extends USB ports to a more convenient location without signal loss. With integrated electronics it supports reliable data transmission over a 10 m distance and a data transfer rate of up to 5 Gb/s. The cable is suitable for use with external hard drives, printers, webcams, headsets, mice, keyboards and other USB devices and is compatible with Windows 7 and macOS 10 or newer. For extensions of 10 m and longer a separate plug-in power supply is recommended and a power adapter is included with this product. Note: the cable is not cascadable and cannot be extended by additional active extensions.

Advantages

The active USB 3.2 Gen.1 cable provides optimum signal transmission through integrated electronics, enabling long-distance extension up to 10 m without data loss. It supports USB 3.2 Gen.1 speeds up to 5 Gb/s and is hot-swappable for plug-and-play use during operation. The cable has a USB-C male connector and a USB-A female port and comes in a compact plastic housing with a black finish. An external 5 V/1.0 A plug-in power supply is included to ensure stable operation for longer extensions.

Suitable for

• Extending connections for external hard drives and SSDs
• Connecting printers and scanners at a distance
• Positioning webcams and headsets away from the PC
• Mounting mice and keyboards where cable reach is limited
• Peripherals requiring USB 3.2 Gen.1 (up to 5 Gb/s) bandwidth

Key specifications

• Connectors: USB-C (male) to USB-A (female)
• USB standard: USB 3.2 Gen.1 (3.1 Gen1), up to 5 Gb/s
• Cable length: 10 m
• Colour: Black
• Housing material: Plastic
• Compatibility: Windows 7 and newer, macOS 10 and newer

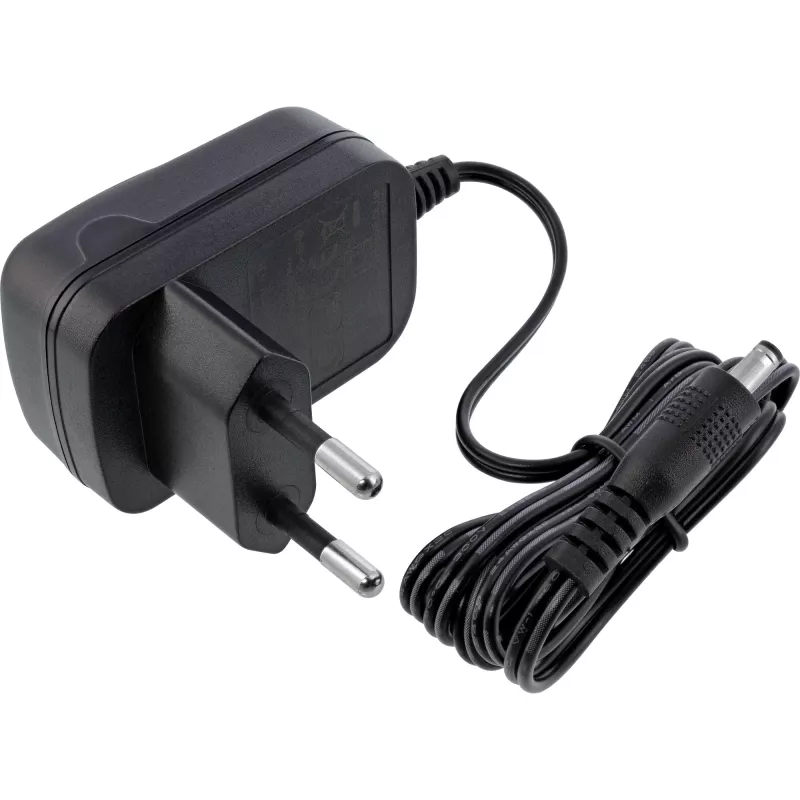

• Power supply (included): AC 100–240 V, 50/60 Hz input; DC 5.0 V / max. 1.0 A output; 5.0 W
• Not cascadable: cannot be connected in series with other active extensions

How to use

Connect the USB-C male end of the extension cable to the host device or to the original USB cable, and plug the USB-A female port to the peripheral device. If the peripheral requires additional power or when using extensions of 10 m or longer, connect the supplied plug-in power supply to the cable’s power input to ensure stable operation. The cable supports hot-swap Plug and Play, so devices can be connected or disconnected during operation without rebooting.

Recommendations

For reliable high-speed transfers, avoid running the cable parallel to strong electromagnetic sources (large power cables, transformers) and use the included power adapter for distances of 10 m or more. Do not attempt to cascade multiple active extensions.
