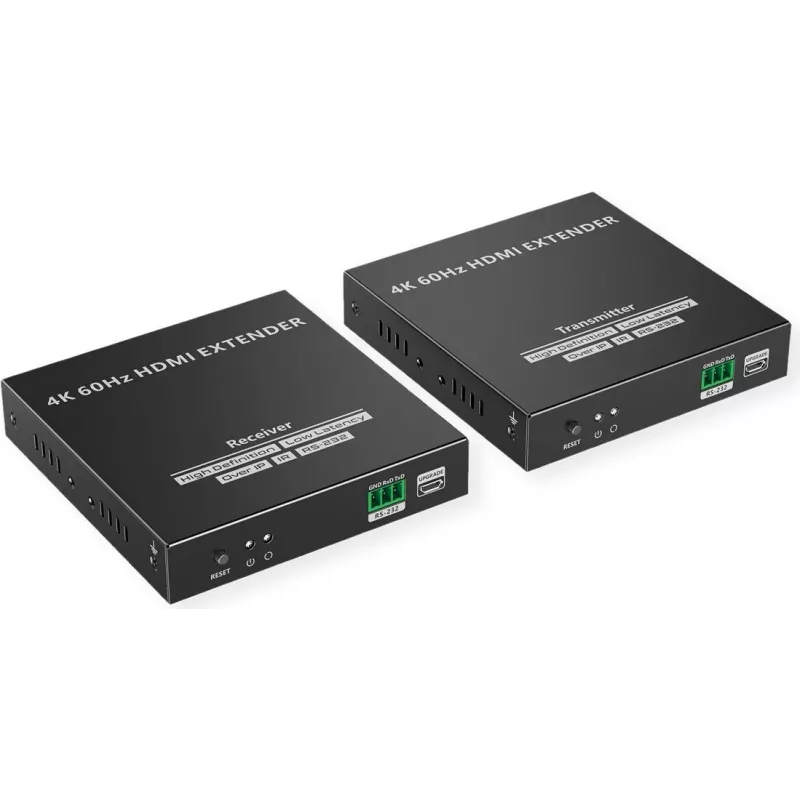

Extensor HDMI por IP VALUE 14.99.3568 4K 60 Hz, transmisión hasta 120 m

VALUE HDMI extender over IP model 14.99.3568 transmits 4K video at 60 Hz over standard Ethernet infrastructure, enabling HDMI source and display separation up to 120 m. The device converts HDMI to IP packets for distribution across a network switch and back to HDMI at the receiver, allowing placement of sources or displays where direct HDMI cabling is impractical. It is compatible with high-resolution displays and supports common AV environments such as digital signage, conference rooms and AV installations.

Advantages

The extender supports 4K resolution at 60 Hz to preserve image clarity and smooth motion. Transmission over Ethernet simplifies cabling and enables flexible routing through network switches. The system supports distances up to 120 m over CAT cable, reducing the need for long HDMI runs and bulky repeaters. Built for integration in professional AV setups, it provides a straightforward method to extend HDMI signals while maintaining compatibility with standard HDMI sources and sinks.

Suitable for

• Digital signage systems in retail, hospitality and public spaces
• Conference rooms and meeting facilities requiring remote displays
• AV installations in education, corporate and exhibition environments
• Situations where long HDMI cable runs are impractical or costly

Key specifications

• Video resolution support: up to 4K (3840×2160) at 60 Hz
• Transmission medium: Ethernet over CAT cable
• Maximum transmission distance: up to 120 m over CAT cable
• Signal conversion: HDMI to IP and IP to HDMI
• Typical installation: transmitter and receiver pair over network switch

How to use

Connect the HDMI source device to the transmitter HDMI input and connect the display to the receiver HDMI output. Link transmitter and receiver via a network switch using CAT cable, observing recommended cabling standards for best performance. Power both units according to manufacturer instructions. Configure any necessary network settings on the AV network switch if using managed switching or VLANs. Verify the connected display is set to the appropriate input and resolution; the extender will pass through the HDMI signal as IP packets across the network and restore HDMI at the receiver end.

Recommendations

Use high-quality shielded CAT cables (CAT5e or better, preferably CAT6) for stable transmission and to approach the maximum 120 m distance. For environments with multiple AV streams, use a managed switch and separate AV VLANs to reduce packet loss and latency. Ensure source and display support 4K@60Hz and confirm HDCP compatibility when protected content is used.
