Extensor KVM ATEN USB 2.0 DVI Single Link sobre 1 cable CAT (100 m) con soporte USB 2.0 completo (hasta 480 Mbit/s) / HDBaseT 2.0

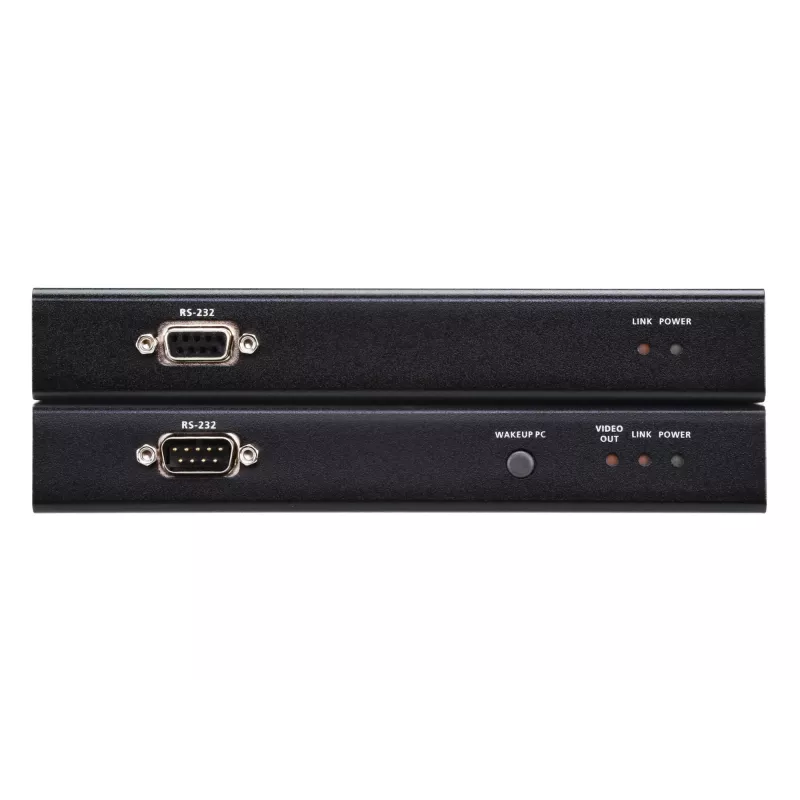

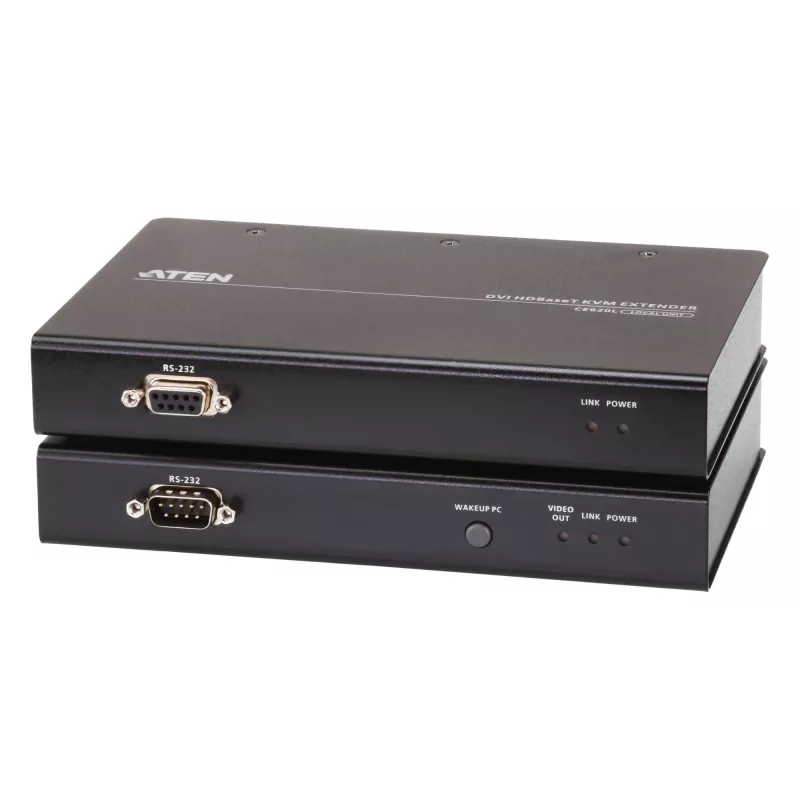

The ATEN CE620 USB 2.0 DVI Single Link KVM Extender integrates HDBaseT™ 2.0 technology to transmit DVI video, two-channel PCM digital audio, USB 2.0 data and RS-232 control signals over a single Cat6/6a cable. Designed for long-reach connections, the CE620 supports reliable signal extension up to 150 meters in Long Reach mode and up to 100 meters in standard operation, enabling remote access to a computer’s DVI output and USB peripherals while keeping the host system in a secure or controlled location.

Advantages

The CE620 provides synchronized transmission of video, audio and USB 2.0 at full speeds (up to 480 Mbps), minimizing the need for multiple cables and simplifying installation. Compact transmitter and receiver units reduce footprint at the workstation and equipment room, while HDBaseT 2.0 compatibility ensures stable, long-distance performance with a single Cat6/6a cable. Low power consumption and DVI-D support deliver high-quality digital video with efficient operation.

Suitable for

• Transportation control centers and surveillance stations
• Medical facilities and telemedicine workstations
• Industrial warehouses and factory floors
• Extended or remote workstations where the host PC must be separated from the user

Key specifications

• Model: CE620-AT-G (ATEN)
• Video interface: DVI-D (Single Link)
• USB: USB 2.0 full speed up to 480 Mbps
• Audio: PCM 2-channel digital audio
• Control: RS-232 support
• Transmission: HDBaseT™ 2.0 over Cat6/6a cable
• Range: up to 100 m (standard), up to 150 m (Long Reach mode) using Cat6/6a
• Power consumption: Transmitter max 3 W, Receiver max 5.6 W
• Colour: Black
• EAN: 4719264645136

How to use

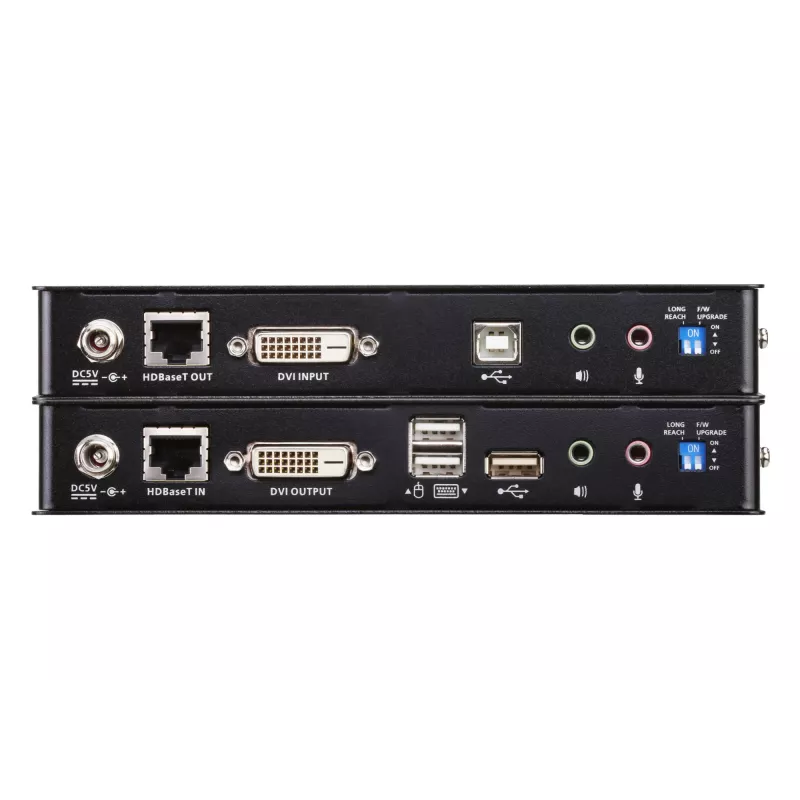

Connect the transmitter unit to the host computer using the DVI-D and USB cables, and connect the receiver to the local monitor and USB peripherals. Link the transmitter and receiver with a single Cat6/6a cable (or ATEN 2L-2910 Cat 6). Power both units using their supplied adapters, then power on the host and display devices. The units automatically negotiate HDBaseT 2.0 signals and establish the extended connection for video, audio, USB and RS-232 control.

Recommendations

For best performance use high-quality Cat6 or Cat6a cable (or ATEN 2L-2910) and keep cable runs within the specified distance limits. Ensure DVI-D-compatible monitors and USB 2.0 peripherals for full functionality; avoid mixing analog DVI-A or incompatible USB devices. Install in environments with appropriate ventilation to maintain the units’ operating temperature range.
