Extensor KVM Emisor y receptor ATEN CE920-ATA-G Cableado 150 m

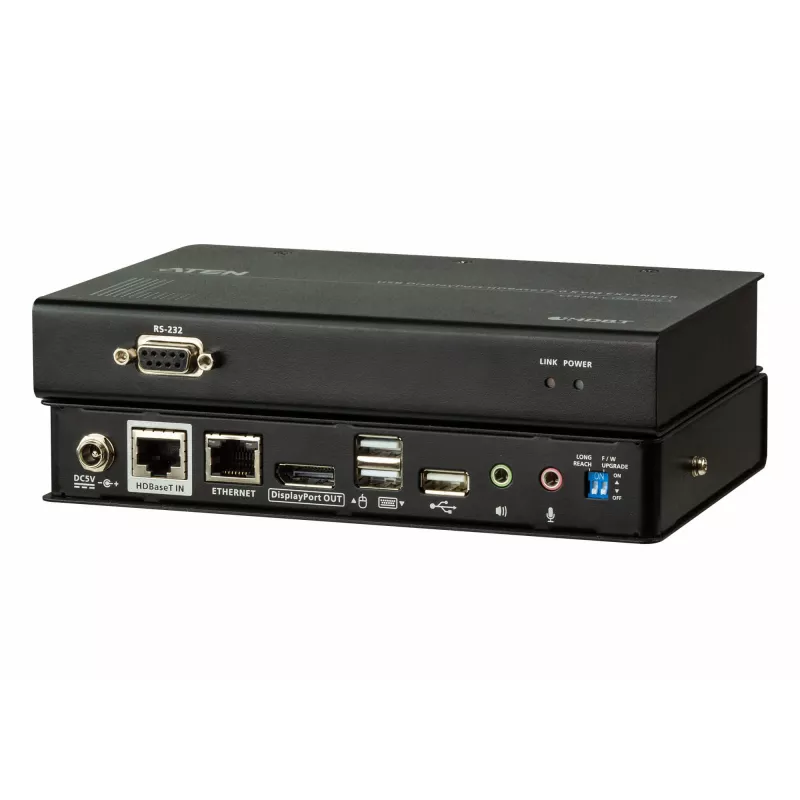

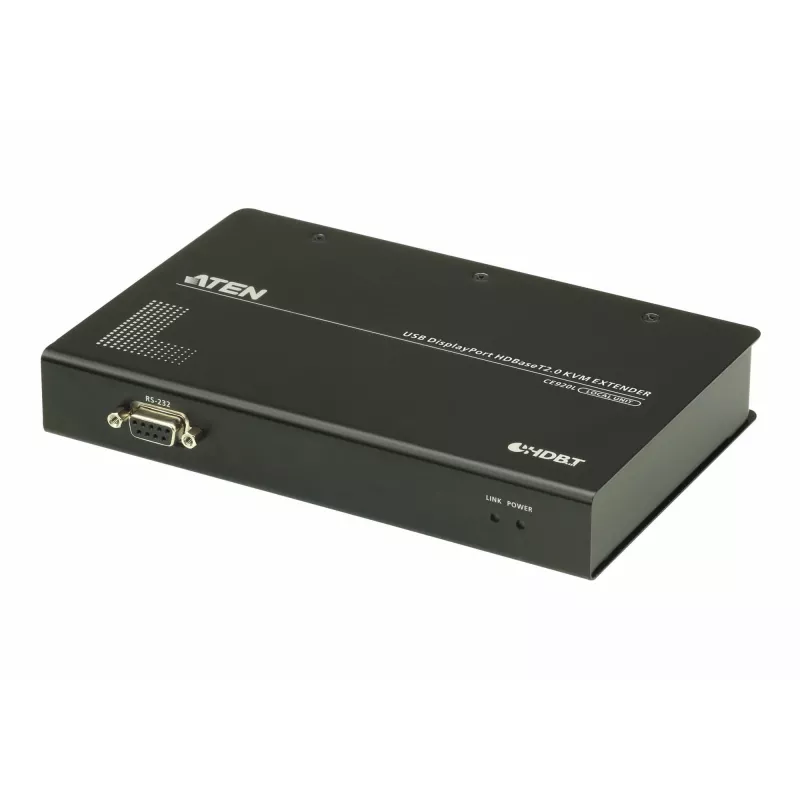

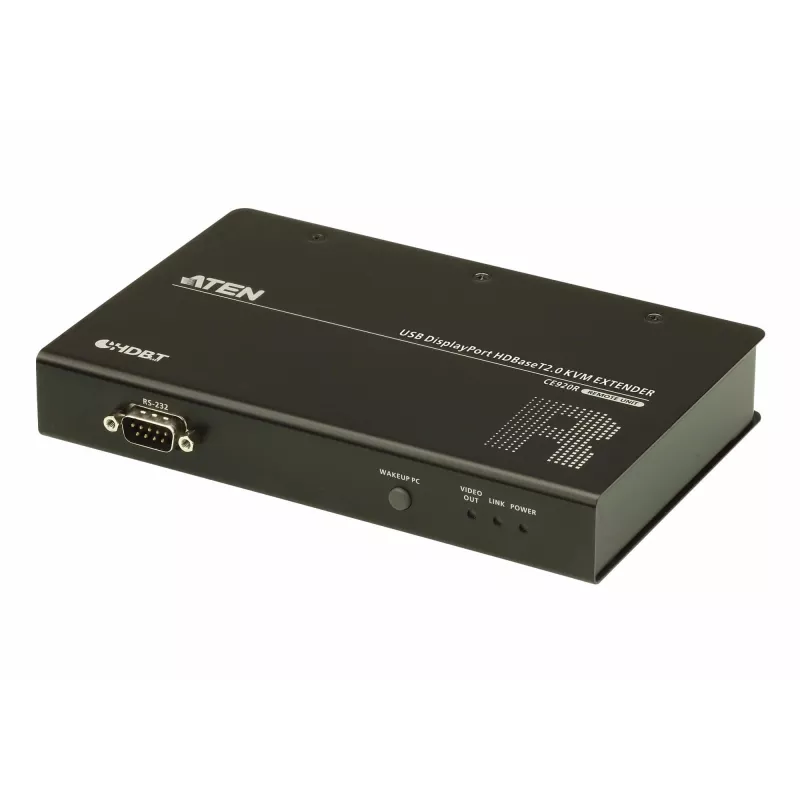

The ATEN CE920 USB DisplayPort HDBaseT™ 2.0 KVM Extender transmits DisplayPort video, stereo audio, USB signals for keyboard and mouse, Ethernet (CE920-AT model only), and RS-232 control over a single Cat6 cable up to 100 m at 4K or up to 150 m for full HD 1080P. Designed as a transmitter and receiver pair, the CE920-ATA model provides wired extension of a workstation while keeping compact power consumption on both units.

Advantages

The CE920 integrates HDBaseT™ 2.0 technology to ensure stable long-distance signal transmission over Cat6 cable, reducing the need for multiple cables and simplifying installation. It supports high-resolution DisplayPort video and USB peripheral sharing with low power draw, and its wired transmitter/receiver design is suitable for environments that require remote access to a local workstation.

Suitable for

• Transportation control centers and command rooms
• Medical facilities and diagnostic workstations
• Industrial warehouses and factory floors
• Extended or remote office workstations

Key specifications

• Model: ATEN CE920-ATA-G (transmitter + receiver pair)
• Interface: DisplayPort video, USB for keyboard/mouse, RS-232
• Ethernet: Not supported on CE920-ATA model (CE920-AT supports Ethernet)
• Transmission distance: up to 100 m for 4K over Cat6; up to 150 m for Full HD 1080P
• Cable type: Single Cat6 / 2L-2910 Cat 6 cable
• Power consumption: transmitter max 3.99 W, receiver max 6.74 W
• Colour: Black

How to use

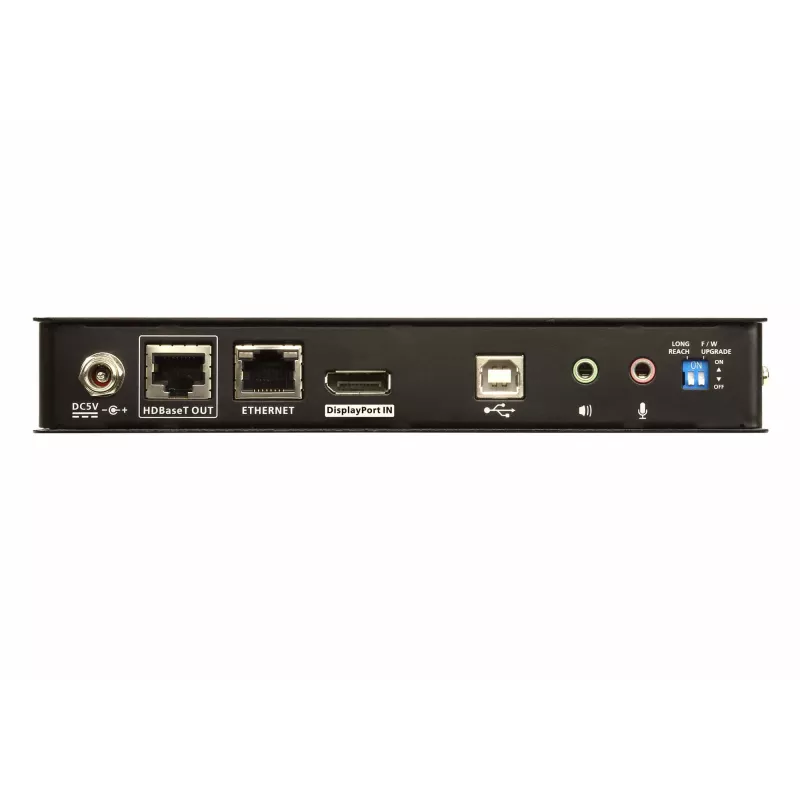

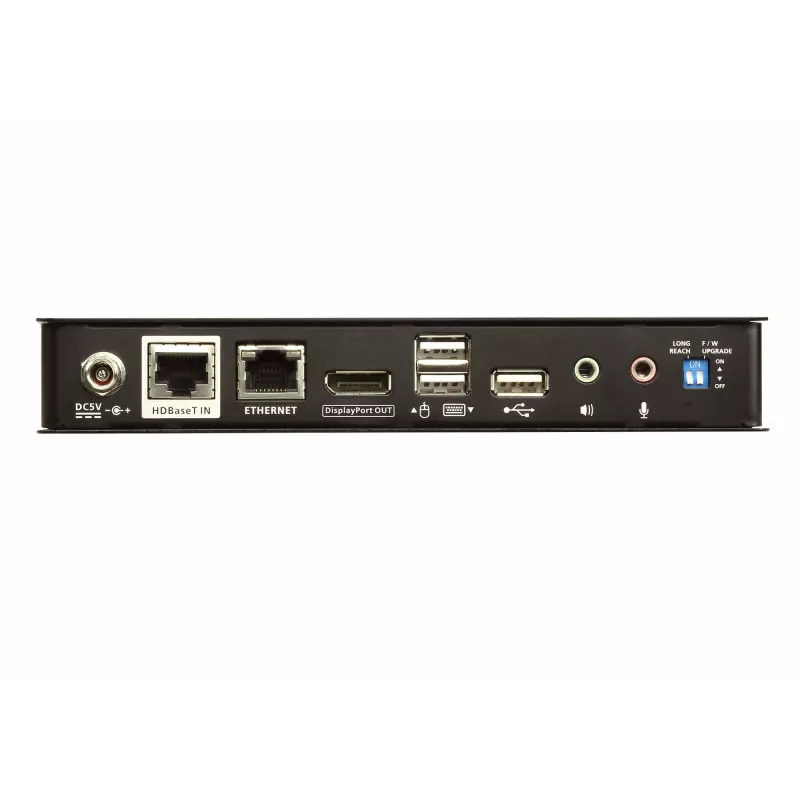

Connect the DisplayPort video source and USB keyboard/mouse to the transmitter unit, and connect the display and USB peripherals to the receiver unit. Link transmitter and receiver with a single Cat6 cable (2L-2910 Cat 6 recommended). Power both units and configure RS-232 or USB peripherals as needed on the host and remote systems. For 4K video, ensure cable length does not exceed 100 m; for 1080P, distances up to 150 m are supported.

Recommendations

For reliable performance, use high-quality Cat6 cable (such as 2L-2910), avoid running the cable alongside heavy power lines or sources of interference, and verify whether you require the Ethernet feature—choose the CE920-AT model if Ethernet pass-through is needed; otherwise the CE920-ATA does not provide Ethernet.
