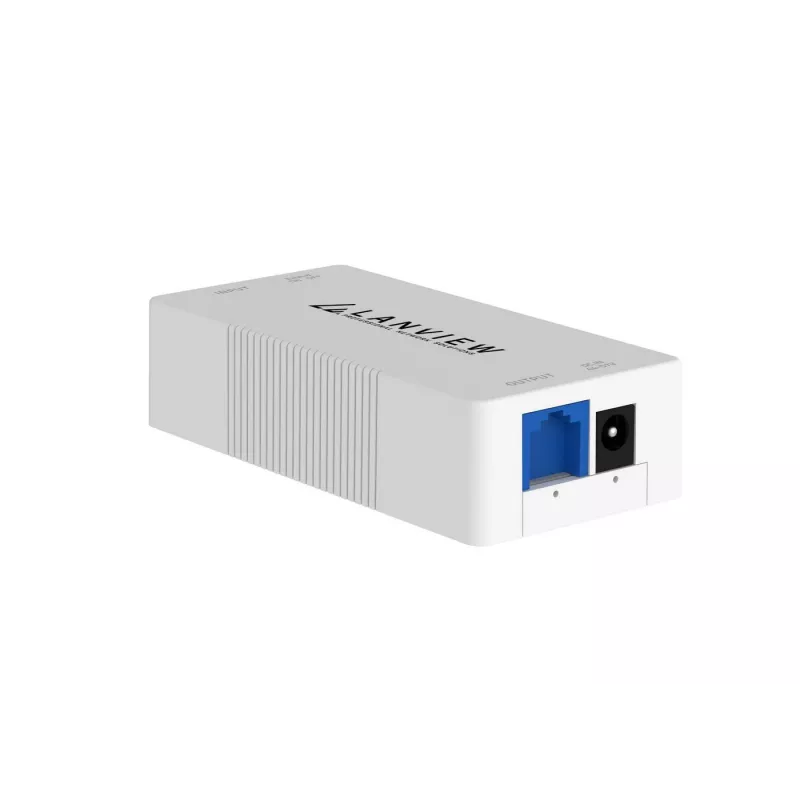

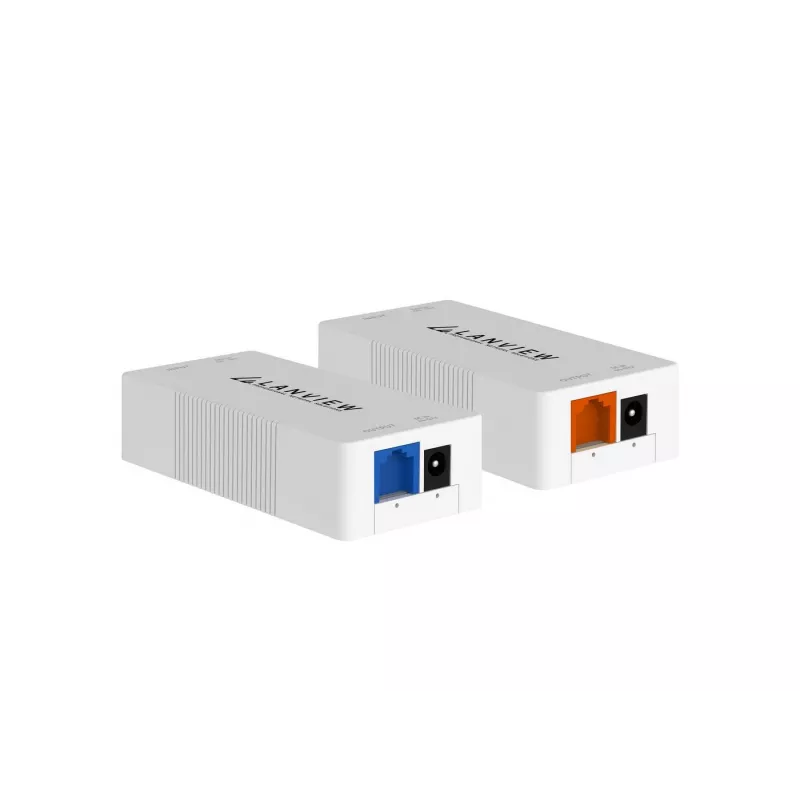

Extensor Power over Ethernet Lanview LVN-100MB-POE30W-EXTENDER-800M

The Lanview LVN-100MB-POE30W-EXTENDER-800M is a Power over Ethernet (PoE) extender that increases network reach up to 800 meters while providing up to 30W of power to connected devices. It supports 10/100Mbps data rates and is designed for long-distance data and power transmission in environments where local power is limited or cabling distances exceed standard Ethernet limits. The unit complies with IEEE 802.3, 802.3u, and 802.3x standards and supports IEEE 802.3af/at power delivery.

Advantages

This PoE extender offers stable 100Mbps connectivity together with PoE passthrough, enabling network and power expansion without requiring additional power outlets at remote points. With compatibility to common Ethernet and PoE standards, the device integrates with existing network equipment and supports installations in residential, commercial, and industrial settings. The 800 meter transmission capability reduces the need for intermediate switches or power sources.

Suitable for

• Extending PoE cameras and access points to remote or hard-to-reach locations
• Connecting network devices where power outlets are unavailable
• Wide-area coverage in warehouses, campuses, and large properties
• Industrial sites requiring reliable long-distance Ethernet and power delivery

Key specifications

• Data rate: 10/100Mbps
• Ports: 1 x 100Mbps PoE in, 1 x 100Mbps PoE out
• PoE standard: IEEE 802.3af/at
• Standards compliance: IEEE 802.3, IEEE 802.3u, IEEE 802.3x
• Maximum transmission distance: up to 800 meters
• Power output: up to 30W
• Manufacturer: Lanview, MPN LVN-100MB-POE30W-EXTENDER-800M

How to use

Install the extender between your PoE switch or injector and the remote PoE device using standard Ethernet cabling. Connect the PoE-in port to a PoE source capable of supplying sufficient power and connect the PoE-out port to the downstream device. Ensure cables are rated for the required length and environmental conditions. Power on the system and verify link/activity LEDs to confirm connectivity and power delivery.

Recommendations

For reliable operation, use good-quality, properly shielded Ethernet cable rated for long runs and follow local installation standards. Confirm that the upstream PoE source can supply the necessary power budget for the downstream device plus cable losses. Avoid exceeding the specified 800 meter transmission distance to maintain stable data and power delivery.
