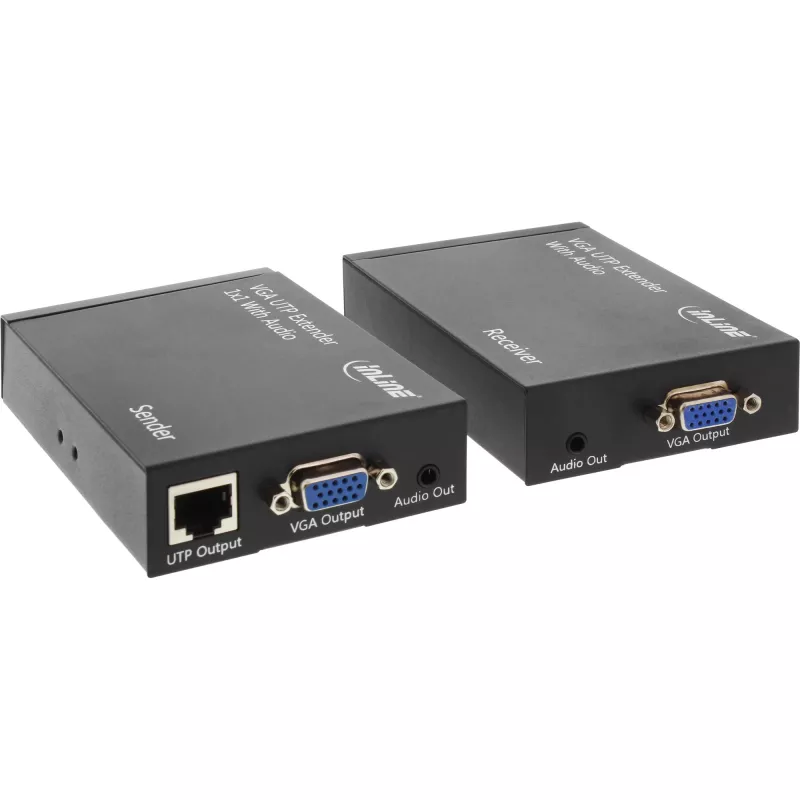

Extensor VGA InLine sobre UTP con audio, hasta 300m, 1920 x 1200 píxeles, transmisor y receptor AV, 300 m

The InLine VGA Extender over UTP with Audio allows you to transmit VGA video and stereo audio signals over long distances using standard UTP cable (Cat5e/6/7). With a maximum transmission distance of 300 meters and support for resolutions up to 1920 x 1200 @ 60Hz (WUXGA), this extender is ideal for extending displays in conference rooms, classrooms, digital signage, and other professional AV installations.

Advantages

Cost-effective solution for extending VGA and audio over long distances using inexpensive UTP cabling. Plug & Play installation requires no software or drivers. Metal housing ensures durability and reliable performance. Includes both transmitter and receiver units with power adapters.

Suitable for

• Extending VGA displays in conference rooms, lecture halls, and training facilities
• Digital signage and advertising displays
• Security and surveillance monitor setups
• Retail and hospitality AV systems

Key specifications

• Product Type: VGA Extender (Transmitter & Receiver)
• Signal Type: VGA Video, Stereo Audio
• Transmission Medium: UTP Cable (Cat5e/6/7)
• Maximum Resolution: 1920 x 1200 @ 60Hz (WUXGA)
• Maximum Transmission Distance: 300 m
• Video Connectors: 1x VGA (HD-15) Female (Transmitter), 1x VGA (HD-15) Female (Receiver)
• Audio Connectors: 1x 3.5mm Stereo Jack Female (Transmitter), 1x 3.5mm Stereo Jack Female (Receiver)
• UTP Connector: RJ45 Female (2x, one on each unit)
• Power Supply: 2x DC 5V Power Adapters (included)
• Housing Material: Metal
• Color: Black
• Plug & Play: Yes
• LED Indicators: Power, Status

Recommendations

For optimal performance, use high-quality shielded UTP cable (Cat5e or better) and keep cable runs within the specified 300 m limit. This extender is OS independent and works with any device that has a VGA output.
