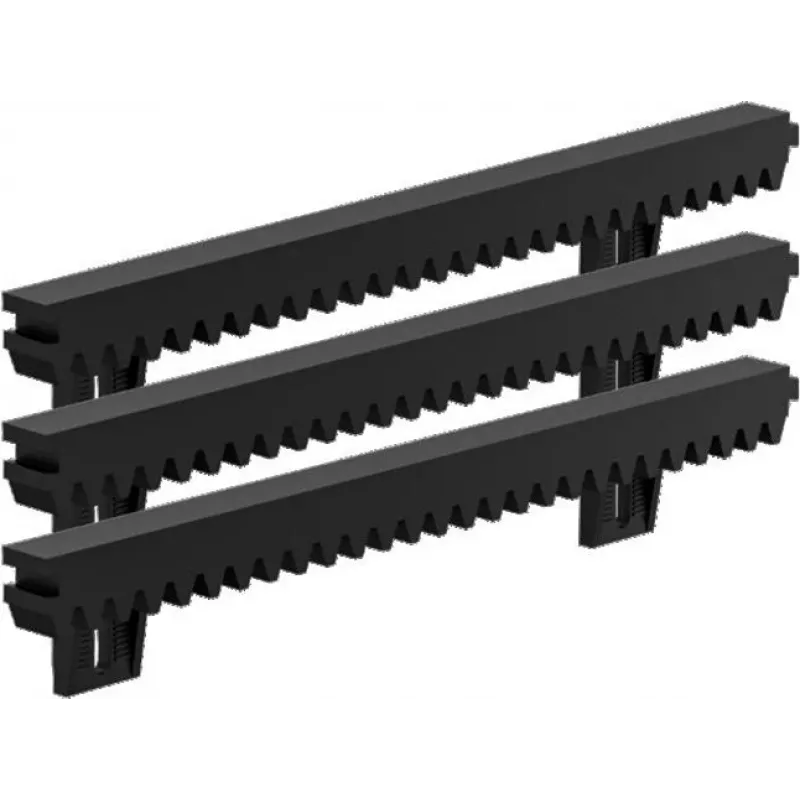

Ezviz CS-HGR2 Cremallera para puertas correderas (3 x 0,33 m) - Acero galvanizado

Unlike one-piece rack rails, this modular set breaks the track into three 0.33 m segments, delivering a 0.99 m total length that is significantly easier to handle, transport, and align on the gate leaf. The galvanized steel construction resists moisture and corrosion, making it a smart upgrade for any automated entry system.

Highlights

• Package includes 3 gear rack segments, each 0.33 m long
• Total combined length: 0.99 m – covers most standard residential gates
• Galvanized steel construction for corrosion resistance
• Standard M4 gear module for smooth, consistent meshing
• Straight tooth profile for reliable power transfer
• Bolt-on design with mounting hardware included

In daily use

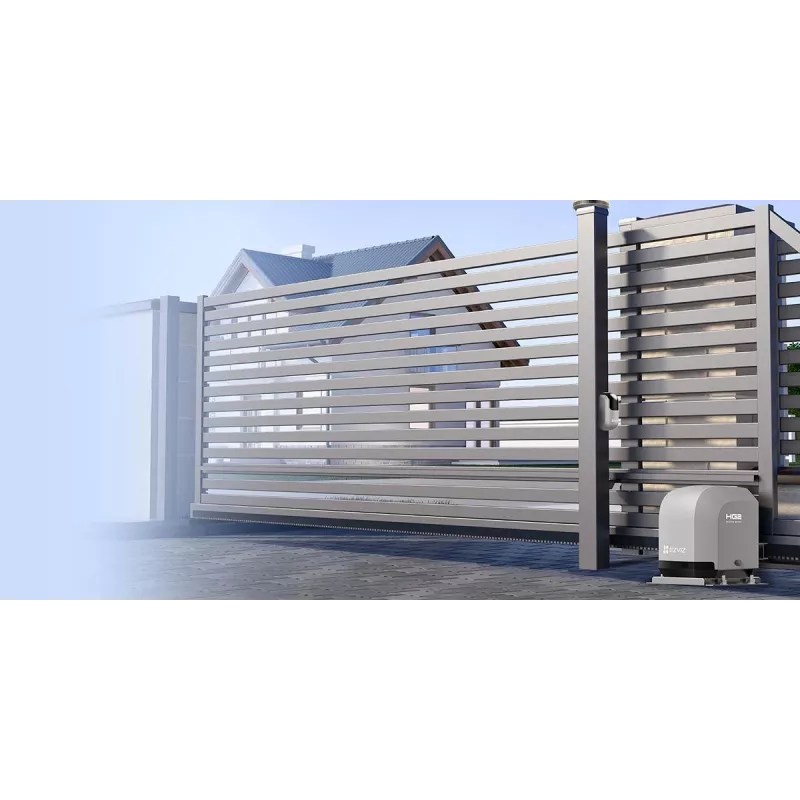

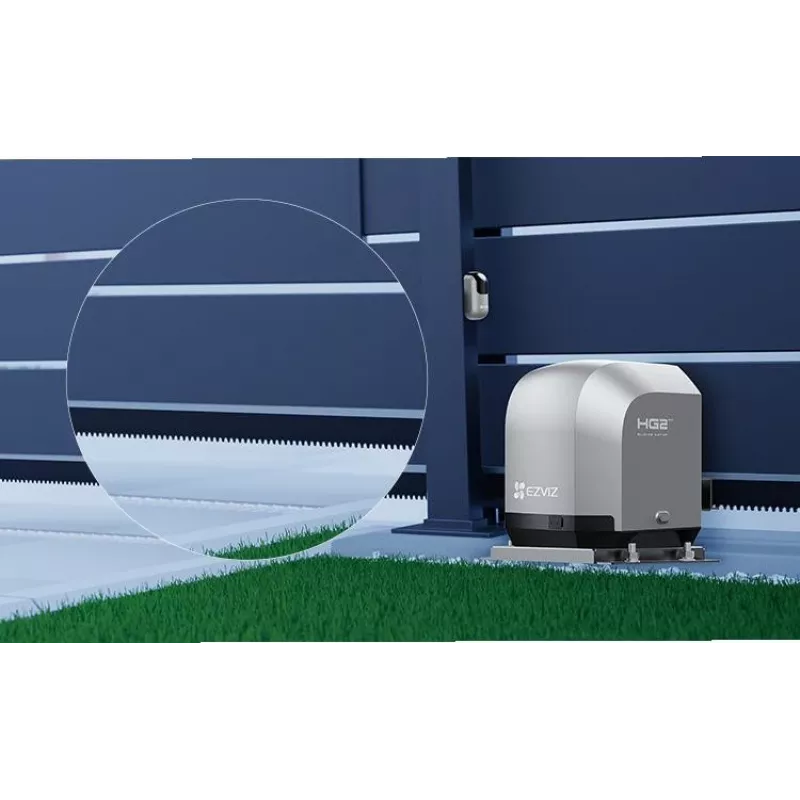

Each segment pairs with the next to form a continuous rail for your gate motor. The M4 module matches the drive gear on Ezviz CS-T1000-G series openers. Fix the rack to the gate using the provided screws and spacers, ensuring the teeth face the opener precisely. The galvanized finish keeps rust at bay, even in rain or humidity, so the rail remains smooth and quiet in all weather conditions.

Full specifications

• Product Type: Sliding Gate Gear Rack
• Material: Galvanized Steel
• Segment Length: 0.33 m (330 mm)
• Number of Segments: 3
• Total Rack Length: 0.99 m (990 mm)
• Gear Module: M4
• Tooth Profile: Straight
• Rack Height: 30 mm
• Rack Thickness: 8 mm
• Mounting Type: Bolt-on (with spacers)
• Colour: Metallic Silver
• Compatibility: Ezviz Sliding Gate Openers (e.g., CS-T1000-G series)
• Operating Temperature: -20°C to 50°C

Final note

This gear rack is a direct replacement or upgrade for Ezviz sliding gate systems, ensuring smooth and reliable operation for years to come.
