FEIN HM-Ultra 35 QuickIN broca de corona de metal duro 40 mm 63127114018

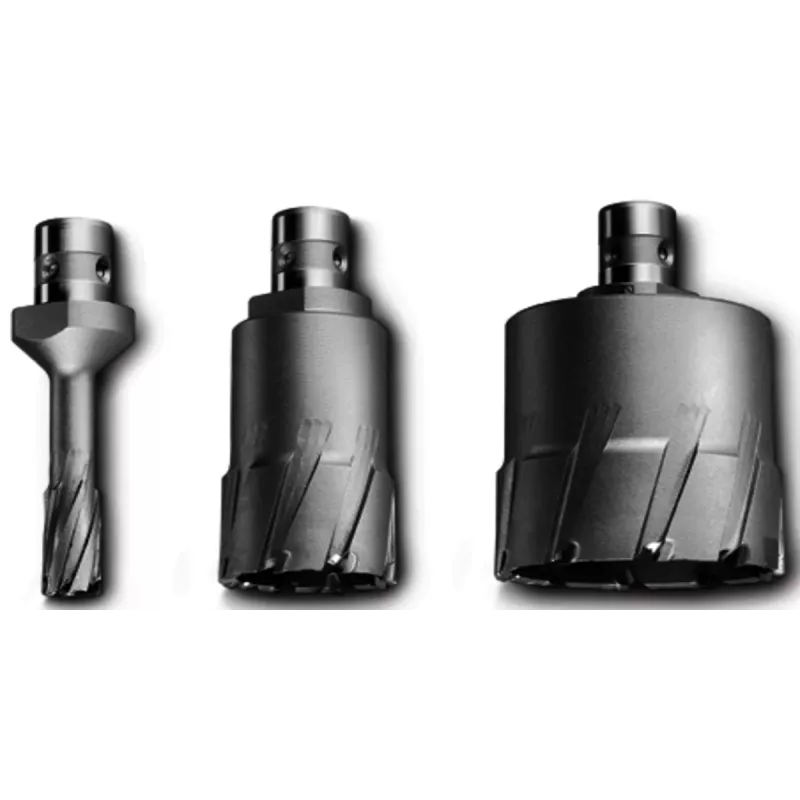

The FEIN HM-Ultra 35 QuickIN annular cutter delivers precision hollow drilling in steel, stainless steel, and non-ferrous metals with a 40 mm cutting diameter and 35 mm cutting depth. Its tungsten carbide (HM) cutting edges provide exceptional wear resistance and high drilling accuracy, making it ideal for demanding industrial applications.

Advantages

This cutter features FEIN's QuickIN shank system for fast, tool-free bit changes on compatible magnetic core drills. The four cutting edges ensure smooth, efficient cutting and automatic core ejection for uninterrupted work. The robust tungsten carbide construction extends tool life, reducing downtime and replacement costs.

Suitable for

• Steel construction and metal fabrication
• Stainless steel processing
• Non-ferrous metal drilling
• Magnetic core drilling machines with FEIN QuickIN mount

Key specifications

• Drill bit type: Annular cutter
• Cutting diameter: 40 mm
• Cutting depth: 35 mm
• Material: Tungsten carbide (HM)
• Shank system: FEIN QuickIN
• Number of cutting edges: 4
• Overall length: approx. 68 mm
• Series: FEIN HM-Ultra 35
• Unit count: 1 piece

Recommendations

For optimal performance and safety, use this annular cutter only with FEIN magnetic core drills equipped with QuickIN mount. Apply appropriate cutting fluid and follow the machine's speed and feed recommendations for the material being drilled. Store in a dry place to prevent corrosion.
