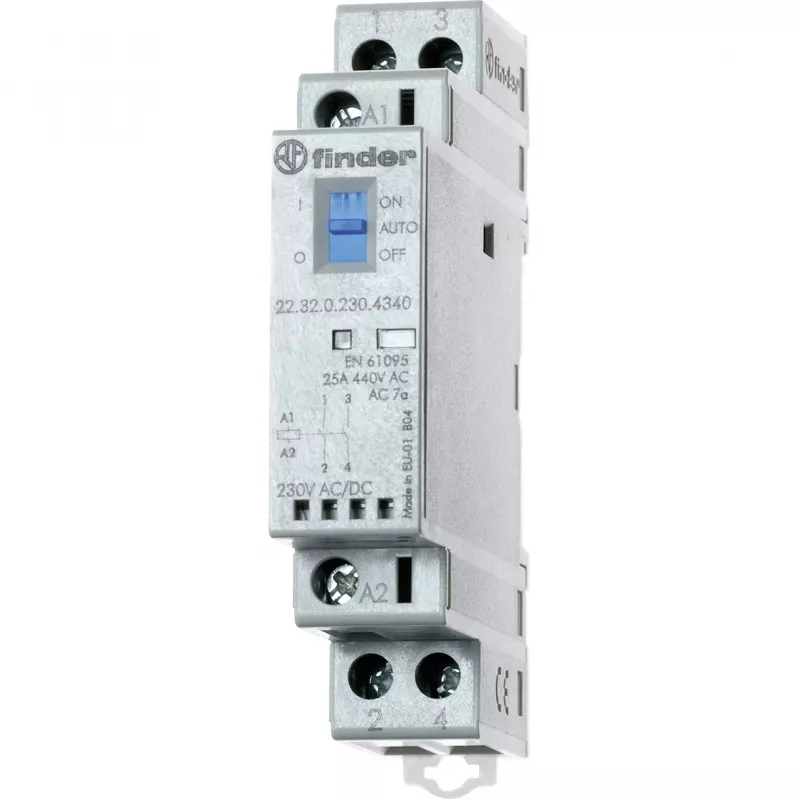

Finder 22.32.0.230.4540 Contactor de instalación 230V AC/DC, 1NO+1NC, LED, 25A, carril DIN

The Finder 22.32.0.230.4540 installation contactor stands out with its dual AC/DC coil, accepting 230 V in both current types—a flexibility not found in typical AC-only contactors. Its compact 1-module (17.5 mm) width saves DIN rail space while still switching up to 25 A in AC-1 duty.

Highlights

• Coil voltage: 230 V AC/DC
• Contact configuration: 1 normally open (NO) + 1 normally closed (NC)
• Rated current: 25 A (AC-1), 9 A (AC-3)
• LED status indicator
• DIN rail mounting, 1 module width (17.5 mm)
• Rated insulation voltage: 400 V
• Rated impulse withstand voltage: 4 kV
• Mechanical life: 1,000,000 cycles
• Electrical life (AC-1): 100,000 cycles
• Operating temperature: -25 to +55 °C

In daily use

This contactor is suited for lighting and heating control in residential and commercial installations. The integrated LED gives immediate visual confirmation of coil energisation, simplifying commissioning and troubleshooting. Its 1NO+1NC contact arrangement allows both switching and signalling functions in a single device.

Full specifications

• Coil power consumption (AC holding): 3.7 VA
• Coil power consumption (AC pull-in): 10 VA
• Coil power consumption (DC): 1.8 W
• Max switching power (AC-1): 5500 VA
• Max switching power (AC-3, 230 V): 2.2 kW
• Dielectric strength (coil/contacts): 4 kV AC
• Protection degree: IP20

Final note

With its AC/DC coil and space-saving design, the Finder 22.32.0.230.4540 is a reliable choice for modern electrical installations.
