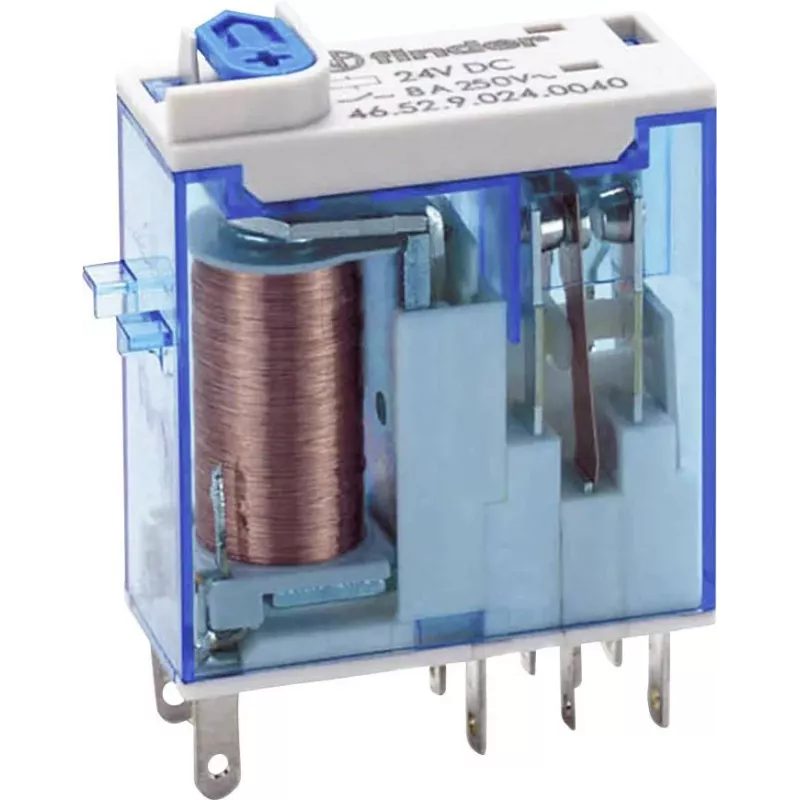

Finder 46.52.9.024.0040 Relé enchufable 24 V DC 8 A DPDT 1 ud.

The Finder 46.52.9.024.0040 is a high-quality plug-in relay from the Finder 46 Series, designed for reliable switching in industrial and building automation applications. With a 24 V DC coil, DPDT contact configuration, and 8 A rated current, this relay offers robust performance and long service life.

Advantages

Compact design with flux-proof protection (RT I) ensures safe operation in demanding environments. Silver nickel contacts provide excellent conductivity and durability. Low coil power consumption of 0.5 W reduces energy costs.

Suitable for

• Industrial control panels
• Building automation systems
• HVAC controls
• Lighting control systems
• Machine interfaces

Key specifications

• Coil Voltage: 24 V DC
• Contact Configuration: DPDT (2 changeover contacts)
• Contact Current Rating: 8 A
• Contact Voltage Rating: 250 V AC
• Contact Material: AgNi (Silver Nickel)
• Coil Power (DC): 0.5 W
• Dielectric Strength (Coil-Contact): 2 kV AC
• Dielectric Strength (Open Contacts): 1 kV AC
• Operating Temperature Range: -40 to +70 °C
• Mounting Type: Plug-in (for 94 Series Sockets)
• Protection Degree: RT I (Flux Proof)
• Mechanical Life: 10 x 10^6 operations
• Electrical Life (at rated load): 100 x 10^3 operations
• Terminal Type: Plug-in
• Approvals: CE, VDE, UL, CSA, RINA, GOST, IMQ

Recommendations

For optimal performance, use with Finder 94 Series sockets. Ensure proper coil voltage and load ratings are not exceeded. Suitable for both new installations and replacement of existing relays.
