Finder 48.P6.7.024.1050SPA Relé de acoplamiento 24 V DC 16 A 1 conmutador

When a control signal must switch a heavier load, a coupling relay provides the necessary isolation and power handling. The Finder 48.P6.7.024.1050SPA is a plug-in relay with a 24 V DC coil and a single changeover contact rated for 16 A.

Who is it for

It suits panel builders and machine integrators who need a compact, socket-mounted relay for general-purpose switching in industrial control circuits.

Main features

• 24 V DC coil
• 1 changeover (SPDT) contact
• 16 A rated current
• Silver nickel (AgNi) contact material
• Plug-in mounting for standard sockets

Specifications

• Maximum switching voltage: 400 V AC
• Maximum switching power (AC1): 4000 VA
• Coil power: 0.5 W DC
• Dielectric strength coil-contact: 6 kV (1.2/50 µs)
• Dielectric strength open contacts: 1000 V AC
• Operating temperature: -40 to +70 °C
• Protection degree: RT I (flux proof)
• Mechanical life: 10 x 10^6 operations
• Electrical life at rated load: 100 x 10^3 operations
• Terminal type: Faston / plug-in
• Number of pins: 5

Tips

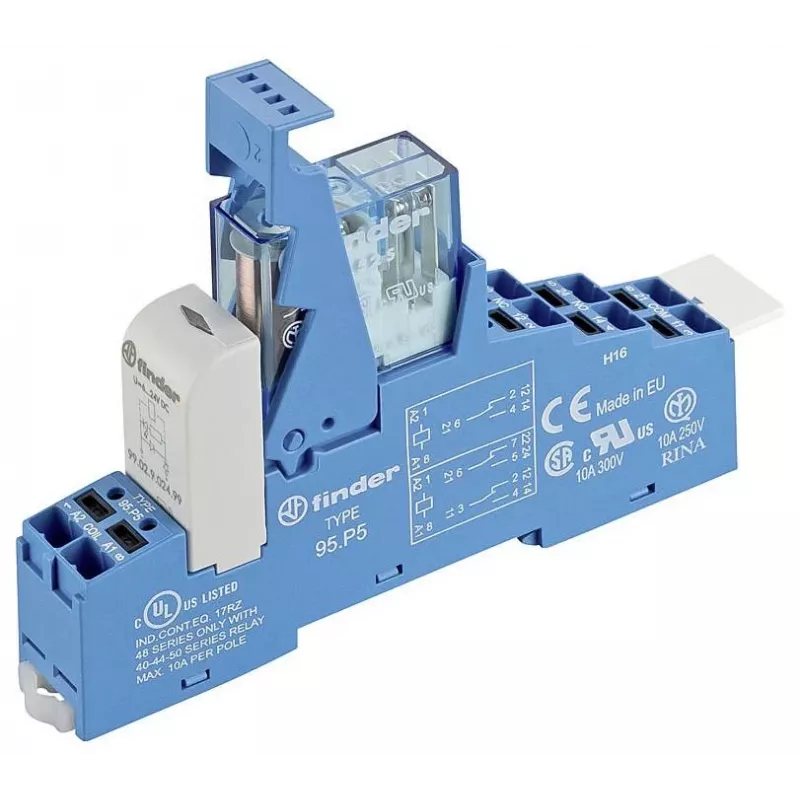

Pair with a compatible Finder socket for quick replacement and secure wiring.
