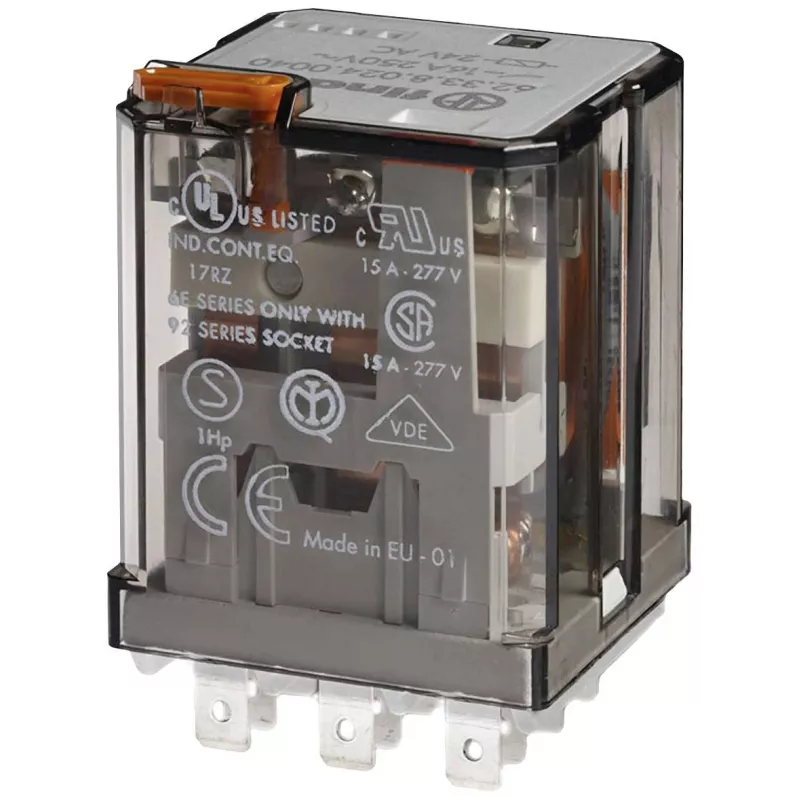

Finder 62.33.9.024.4300 Relé enchufable 24 V DC 16 A 3 CO con LED y diodo

The Finder 62.33.9.024.4300 is a high-performance industrial plug-in relay designed for demanding switching applications. Unlike standard relays, it features a 3 CO (3PDT) contact configuration, allowing control of three independent circuits with a single coil. With a rated current of 16 A and a maximum switching power of 4000 VA, it handles heavy loads reliably.

Highlights

• 3 CO (3PDT) contacts for versatile switching
• 16 A rated current, 250 V AC rated voltage
• Integrated LED coil indication and free-wheeling diode
• Plug-in mounting for use with Finder 92 series sockets
• Wide operating temperature range: -40 to +70 °C

In daily use

This relay is ideal for industrial control panels, automation systems, and HVAC applications. The LED indicator provides quick visual confirmation of coil energization, while the free-wheeling diode protects sensitive electronics from voltage spikes. Its AgNi contacts ensure long electrical life up to 100,000 operations at rated load.

Full specifications

• Coil voltage: 24 V DC
• Contact configuration: 3 CO (3PDT)
• Rated contact current: 16 A
• Rated contact voltage: 250 V AC
• Max switching power (AC1): 4000 VA
• Contact material: AgNi (Silver Nickel)
• Coil power consumption: 1.7 W
• Dielectric strength (coil-contact): 2500 V AC
• Operating temperature range: -40 to +70 °C
• Mounting type: Plug-in (for socket)
• Electrical life (at rated load): 100,000 cycles
• Mechanical life: 5,000,000 cycles
• Protection degree: RT I (Flux proof)
• Coil indication: Integrated LED
• Coil protection: Free-wheeling diode
• Number of pins: 11
• Compatible sockets: Finder 92 Series

Final note

Engineered for reliability and ease of maintenance, the Finder 62.33.9.024.4300 is a trusted choice for professionals seeking robust switching solutions.
