Finder 72.A1.1.000.1001 Interruptor de flotador para llenar o vaciar, cable de 10 m, 1 contacto conmutado, IP68

With a 10 m neoprene cable and a robust IP68-rated polypropylene housing, this float switch delivers dependable liquid level control for filling or emptying applications. Its single changeover contact handles up to 2500 VA, making it suitable for pumps, alarms, and control circuits.

Overview

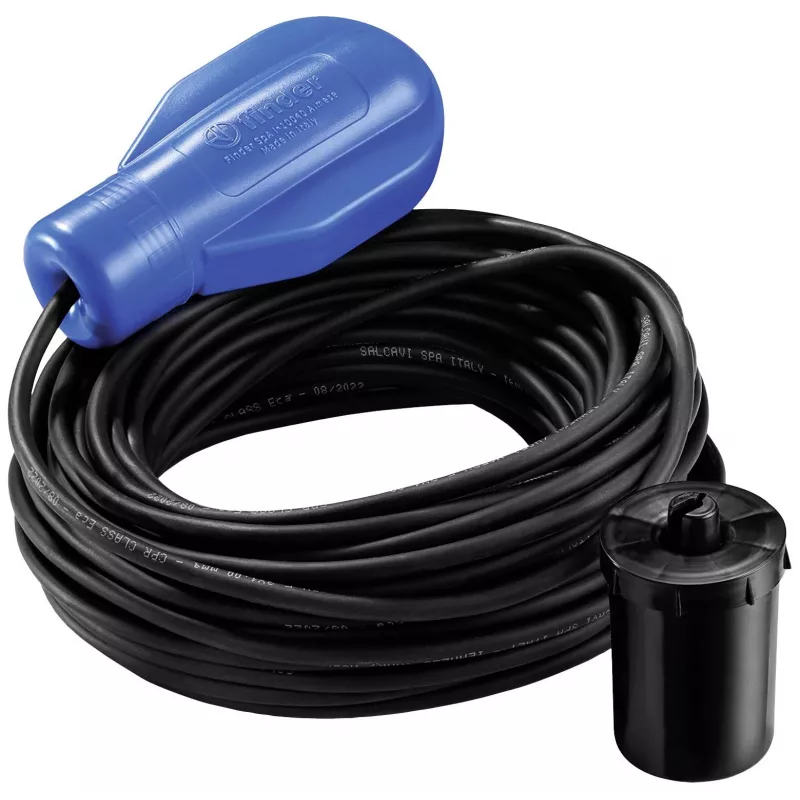

The Finder 72.A1.1.000.1001 is a suspended float switch engineered for reliable level detection in tanks, wells, and sumps. The switch actuates at a ±45° angle, providing clear on/off signals as the liquid level changes. The 10 m H07RN-F neoprene cable offers flexibility and resistance to oils, chemicals, and abrasion.

What stands out

• IP68 protection for continuous immersion
• 10 A changeover contact rated for 250 V AC
• Neoprene cable withstands harsh environments
• Operates in liquids with specific gravity 0.95–1.05 g/cm³
• Wide temperature range: -20 °C to +70 °C (switch)

Technical details

• Function: Fill or empty
• Cable length: 10 m
• Cable material: Neoprene (H07RN-F), 3 x 1 mm²
• Contact configuration: 1 changeover (CO)
• Max switching current: 10 A (AC1)
• Max switching voltage: 250 V AC
• Max switching power: 2500 VA (AC1)
• Housing material: Polypropylene (PP)
• Switching angle: ±45°
• Operating temperature (switch): -20 °C to +70 °C
• Operating temperature (cable): -20 °C to +60 °C

Our verdict

A rugged, high-capacity float switch for demanding liquid level control tasks. The long neoprene cable and sealed design make it a reliable choice for industrial and agricultural installations.
