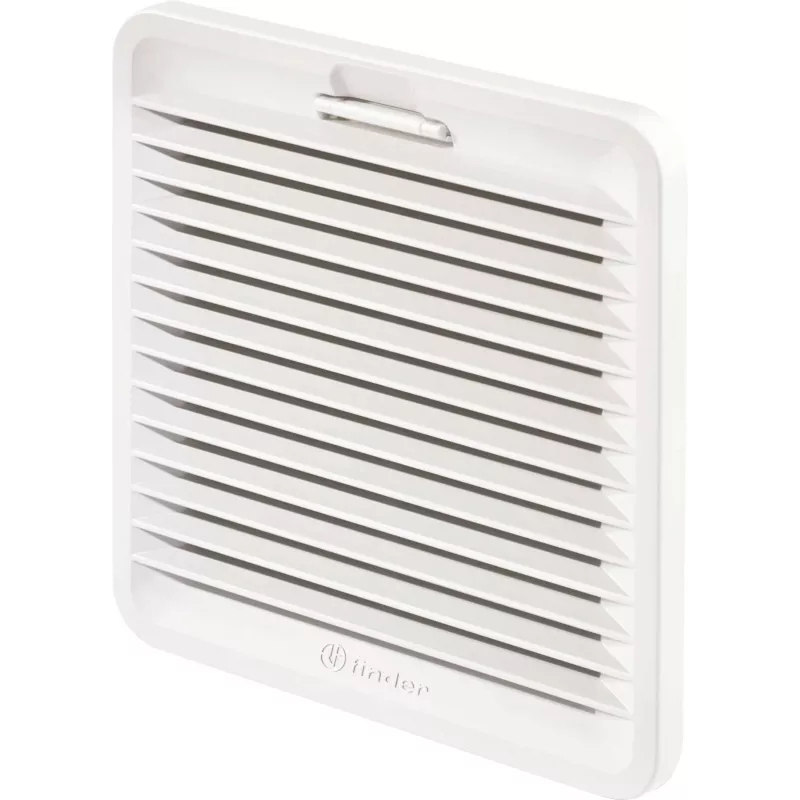

Finder 7F.02.0.000.2000.0 Filtro de salida de aire, 155 x 155 x 22,6 mm, G3, IP54, gris claro

With a G3 filter class according to EN 779, this exhaust filter captures coarse dust and fibers, keeping enclosure air clean while maintaining airflow. The snap-in frame measures 155 x 155 x 22.6 mm and fits a 124 x 124 mm cut-out, making it a direct replacement for standard ventilation openings.

Overview

The Finder 7F.02.0.000.2000.0 is an exhaust filter designed for electrical enclosures and cabinets. It uses a synthetic fiber filter medium to trap particles and protect internal components from contamination. The frame is made of ABS plastic with a UL94-V0 flammability rating, ensuring self-extinguishing behavior in case of fire. The light grey color (RAL 7035) blends with most industrial enclosures.

What stands out

• IP54 protection when correctly mounted, guarding against dust and water splashes
• Snap-in mounting for quick installation without tools
• Operating temperature range from -10 to +55 °C, suitable for demanding environments
• Self-extinguishing ABS frame (UL94-V0) adds a layer of safety

Technical details

• Filter class: G3 (EN 779)
• Filter material: Synthetic fiber
• Frame material: ABS plastic, UL94-V0
• External dimensions: 155 x 155 x 22.6 mm
• Cut-out dimensions: 124 x 124 mm
• Mounting: Snap-in
• Airflow direction: Exhaust
• Operating temperature: -10 to +55 °C
• Storage temperature: -20 to +70 °C
• Quantity per pack: 1 piece

Our verdict

A reliable exhaust filter for enclosure ventilation, offering G3 filtration and IP54 protection in a compact snap-in design.
