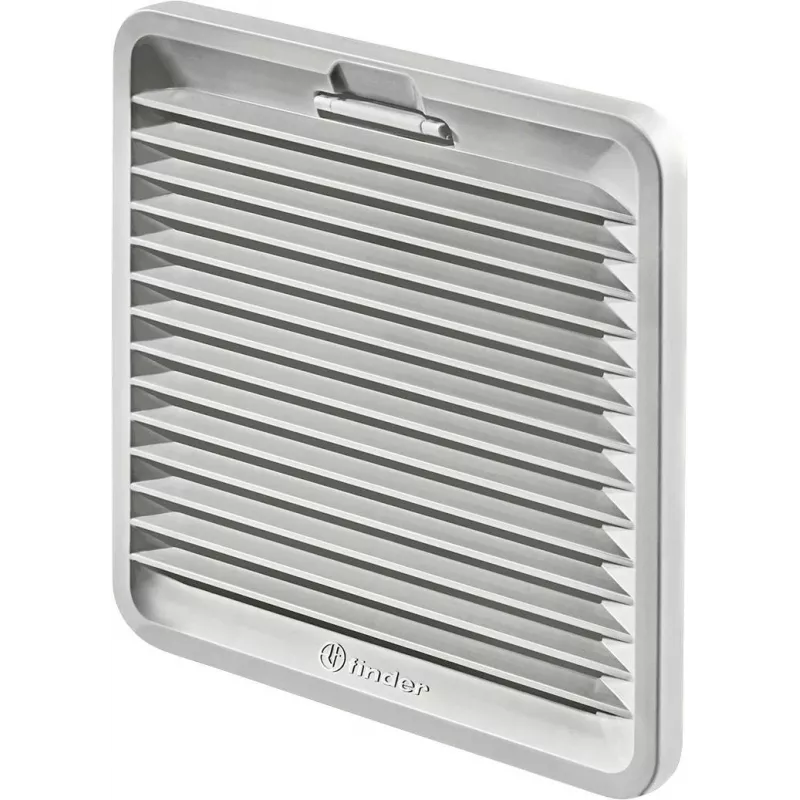

Finder 7F.03.0.000.1000 Filtro de salida 120x120x20mm IP54 RAL 7035

Protect your electrical enclosures with the Finder 7F.03.0.000.1000 outlet filter, featuring an IP54 protection rating and a G3 filter class for reliable airflow and dust filtration. Designed for snap-in mounting with a 92x92mm cut-out, it is ideal for control cabinets and electrical enclosures.

Overview

The Finder 7F series outlet filter combines a synthetic fiber filter media with an ABS self-extinguishing plastic frame in light grey (RAL 7035). It is engineered to maintain optimal airflow while preventing dust ingress, ensuring the longevity of sensitive electronics.

What stands out

• IP54 protection rating for dust and splash resistance
• G3 filter class (EN 779) for effective particle filtration
• Snap-in mounting for quick installation
• Durable ABS self-extinguishing frame
• Wide operating temperature range from -15°C to +55°C

Technical details

• Product Type: Outlet Filter
• Series: Finder 7F Series
• External Dimensions (W x H x D): 120 x 120 x 20 mm
• Cut-out Dimensions (W x H): 92 x 92 mm
• Protection Rating: IP54
• Color: RAL 7035 (Light Grey)
• Mounting Type: Snap-in
• Filter Media Material: Synthetic Fiber
• Frame Material: ABS Self-extinguishing Plastic
• Airflow Direction: Outlet
• Operating Temperature Range: -15°C to +55°C
• Filter Class: G3 (EN 779)
• Application: Electrical Enclosures, Control Cabinets
• Compatibility: Designed for use with Finder Filter Fans (e.g., 7F.03 series)
• Quantity per Pack: 1

Our verdict

A robust and reliable outlet filter that ensures clean airflow and protection for your electrical enclosures, backed by Finder's quality engineering.
