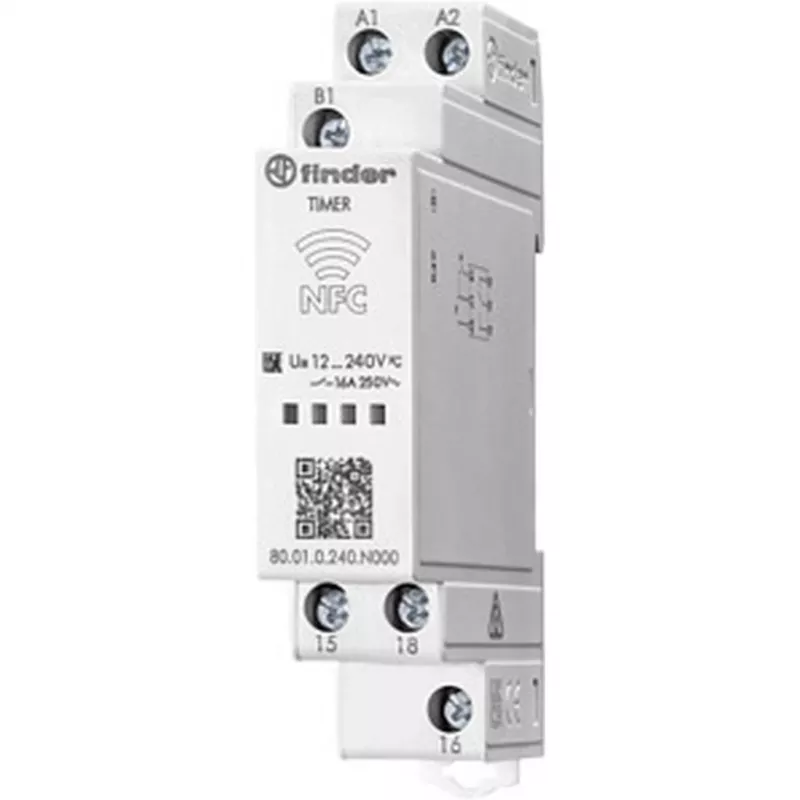

Finder 80.01.0.240.N000 Relé temporizador multifunción, 240 V AC/DC, 2 s - 24 h, 1 conmutador, conexión por tornillo, 17,5 mm

The Finder 80.01.0.240.N000 is a multifunction time relay from the Finder 80 Series, designed for precise timing control in industrial and building automation applications. This relay offers six selectable functions (AI, DI, SW, BE, CE, DE) and a wide time range from 2 seconds to 24 hours, programmable via NFC for easy setup. With a compact 17.5 mm width (1 module) and DIN rail mounting, it saves valuable panel space.

Advantages

Versatile multifunction design reduces inventory needs; NFC programming simplifies configuration without physical access; robust AgNi contacts ensure long electrical life; LED indicators provide clear status at a glance.

Suitable for

• Industrial control panels
• Building automation (lighting, HVAC)
• Process timing and sequencing
• Machine safety interlocks

Key specifications

• Supply voltage: 240 V AC/DC
• Time range: 2 s to 24 h
• Functions: 6 (AI, DI, SW, BE, CE, DE)
• Contact configuration: 1 changeover (CO)
• Rated current: 16 A @ 250 V AC (AC1)
• Mounting: 35 mm DIN rail
• Module width: 17.5 mm (1 module)
• Terminal type: Screw terminals
• Operating temperature: -20 to +60 °C
• Protection: IP20 (terminals), IP40 (front)
• Power consumption: 1.5 VA (AC) / 1 W (DC)
• Approvals: CE, cURus

Recommendations

For optimal performance, use with appropriate DIN rail accessories and ensure proper ventilation. The NFC programming feature requires a compatible NFC-enabled device. Always verify voltage and load ratings before installation.
