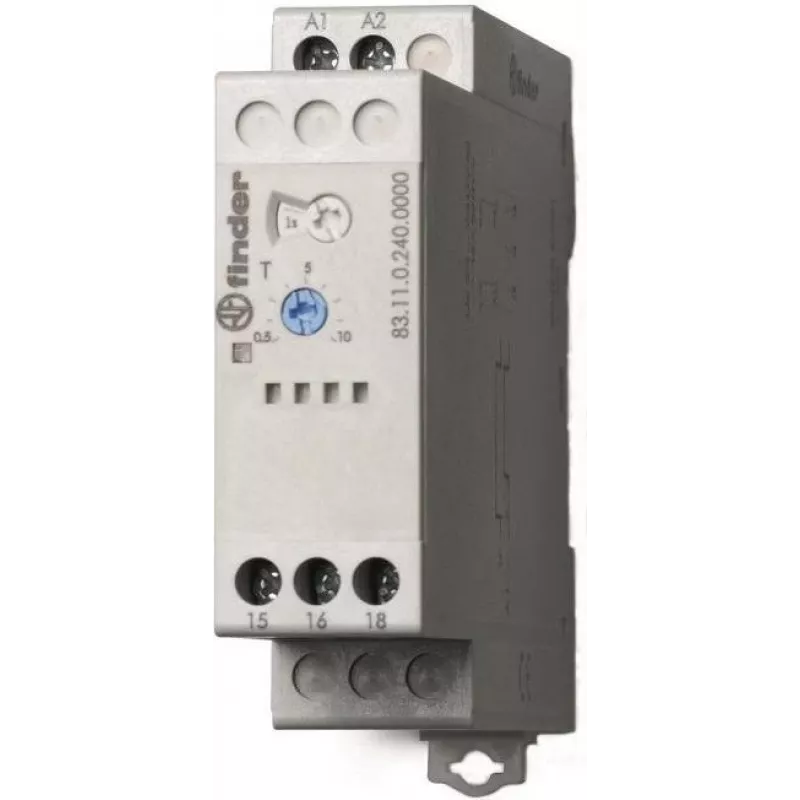

Finder 83.11.0.240.0000 Relé temporizador con retardo a la conexión, 240V AC, 1 CO, 0,05s-100h, Carril DIN

The Finder 83.11.0.240.0000 stands out as a dedicated ON-delay timer relay, offering precise control over time-based switching in industrial automation. Unlike generic relays, it integrates a built-in timing function, eliminating the need for separate timer modules and simplifying panel wiring.

Highlights

• ON-delay (AI) function: output energizes after a preset delay once supply voltage is applied
• Wide time range from 0.05 seconds to 100 hours, selectable across 7 scales via front rotary knob
• 1 changeover (CO) contact rated 16 A / 250 V AC, suitable for switching loads up to 4000 VA
• Designed for 35 mm DIN rail mounting (EN 60715), ideal for control cabinets
• Clear status indication with green LED for power and red LED for relay/timing state

In daily use

This timer relay operates on a 240 V AC supply and consumes only 2.5 VA. The screw terminals accept a range of conductor sizes, ensuring secure connections. The front panel rotary knob allows quick adjustment of the delay without removing the unit from the rail. With a mechanical life of 10 million operations and electrical life of 100,000 operations at rated load, it delivers long-term reliability in demanding environments.

Full specifications

• Supply voltage: 240 V AC (50/60 Hz)
• Time range: 0.05 s to 100 h (7 scales)
• Contact configuration: 1 CO (changeover)
• Contact rating: 16 A / 250 V AC (AC1)
• Rated load: 4000 VA
• Contact material: AgNi
• Mounting: 35 mm DIN rail (EN 60715)
• Operating temperature: -20 to +60 °C
• Protection: IP20 terminals, IP40 housing
• Terminals: screw type
• Adjustment: front rotary knob
• Indicators: green LED (power), red LED (relay/timing)
• Dielectric strength (coil-contacts): 2 kV AC
• Electrical life: 100,000 operations at rated load
• Mechanical life: 10,000,000 operations
• Power consumption: 2.5 VA
• Housing material: self-extinguishing thermoplastic

Final note

With its robust construction and precise timing, the Finder 83.11.0.240.0000 is a dependable choice for automation tasks requiring delayed activation.
