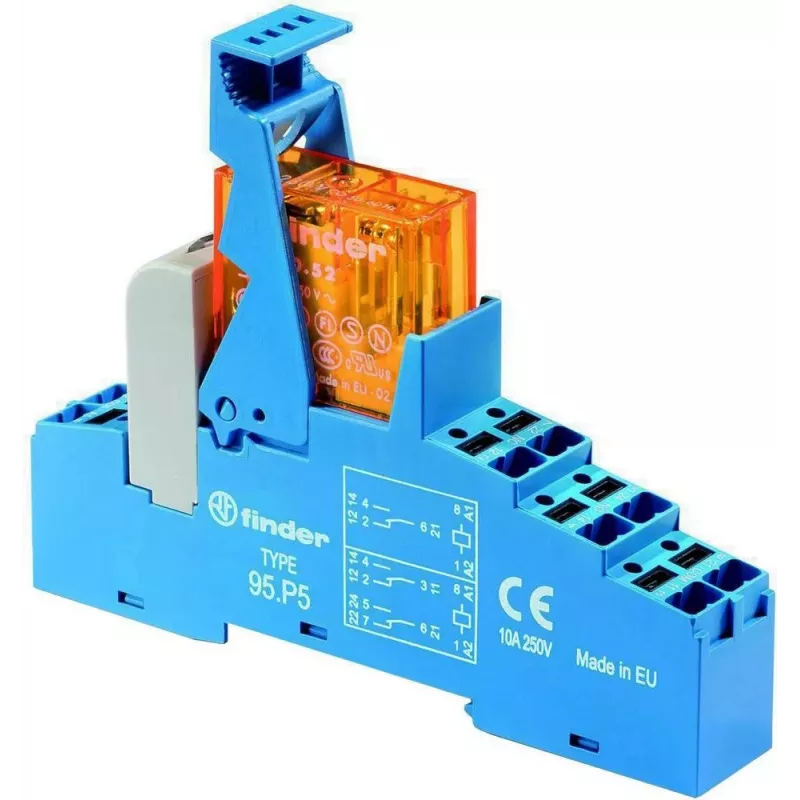

Finder FIN 48.P5.7 24V - Relé de acoplamiento - Push-In 2 conmutadores 24 V DC

The Finder FIN 48.P5.7 24V is a high-performance coupling relay designed for industrial control applications. With a 24 V DC coil and 2 changeover (DPDT) contacts, it provides reliable switching for a wide range of automation tasks. The push-in terminal technology ensures fast and tool-free wiring, saving installation time and reducing maintenance costs.

Advantages

Push-in terminals allow for quick and secure connection of solid or stranded wires without the need for tools. The integrated green LED indicator provides clear visual status of the relay operation. The built-in diode suppression protects against voltage spikes, extending the life of the relay and connected equipment. With reinforced insulation and a dielectric strength of 6 kV between coil and contacts, this relay offers excellent safety and reliability.

Suitable for

• Industrial control panels
• Building automation systems
• PLC output interfacing
• Signal switching in machinery

Key specifications

• Coil Voltage: 24 V DC
• Contact Configuration: 2 Changeover (DPDT)
• Contact Material: AgNi (Silver Nickel)
• Rated Current (AC1): 8 A
• Rated Voltage (AC1): 250 V AC
• Terminal Type: Push-in
• Mounting: 35 mm DIN Rail
• Protection Degree: IP20
• Operating Temperature: -40 to +70 °C
• Electrical Life: 100,000 operations at rated load
• Mechanical Life: 10,000,000 operations
• Approvals: CE, UL, VDE

Recommendations

For optimal performance, use with Finder sockets and accessories. Ensure proper ventilation when mounting in enclosed panels. This relay is ideal for applications requiring high switching reliability and long service life.
