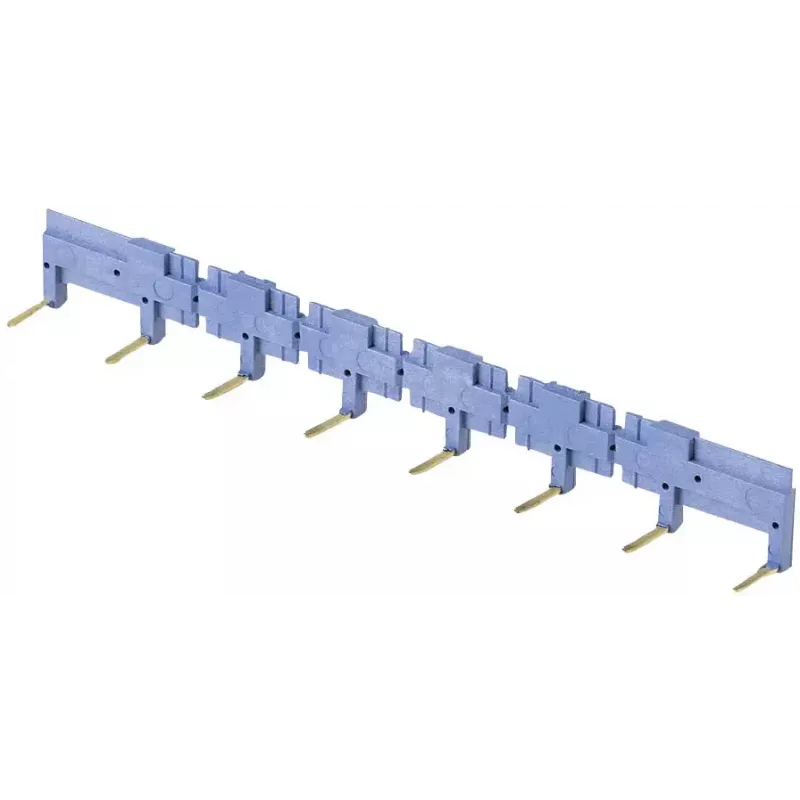

Finder Peine de conexión 8 vías para bornes A1 o A2 (095.08)

In industrial control panels, technicians often need to distribute a common signal or power to multiple relays. The Finder 095.08 comb bridge connects the coil terminals (A1 or A2) of up to eight relays in parallel, reducing wiring time and eliminating individual jumper wires. It is a plug-in accessory for Finder 34 series relay sockets.

Key specifications

• Accessory type: Jumper link / comb bridge
• Number of ways: 8
• Compatible relay series: Finder 34 series
• Compatible terminals: A1 or A2 (coil terminals)
• Rated current: 6 A
• Insulation voltage: 250 V AC/DC
• Body material: Polyamide (PA)
• Contact material: Copper alloy
• Mounting type: Plug-in / snap-on
• Colour: Grey
• Terminal pitch: 5 mm
• Operating temperature range: -40 to +70 °C

Why choose it

This comb bridge simplifies panel wiring by providing a single component for commoning up to eight relay coils. Its snap-on design ensures a secure connection without tools, and the polyamide body offers durability in industrial environments.

Ideal use cases

• Parallel connection of relay coils in automation systems
• Power distribution for multiple relays in control panels
• Reducing wiring complexity in machine building

Good to know

The bridge is designed for use with Finder 34 series relay sockets and fits terminals A1 or A2. It is rated for 6 A and 250 V AC/DC, making it suitable for most coil circuits.
