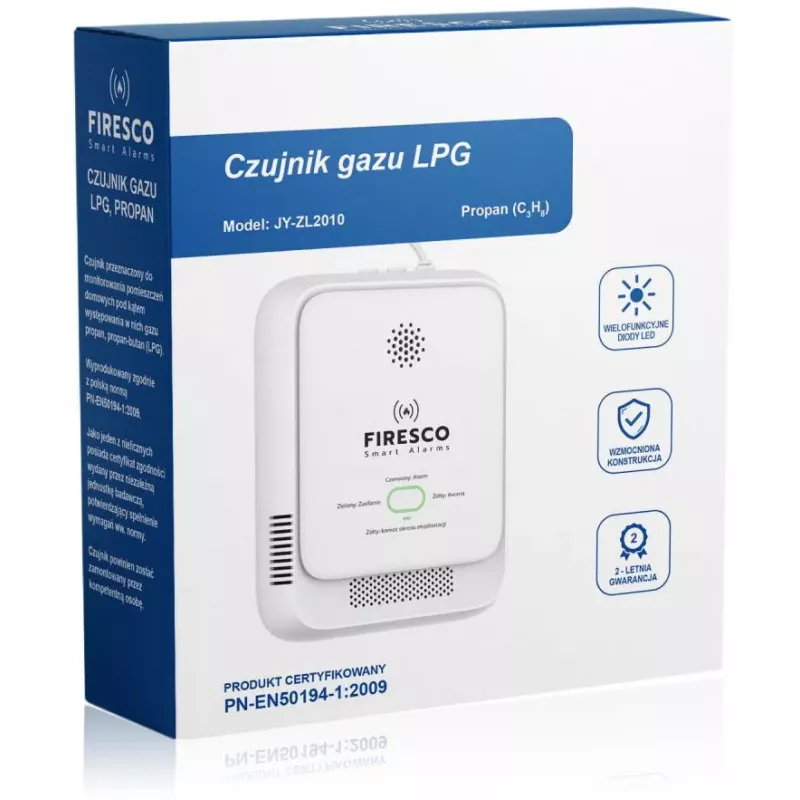

FIRESCO sensor de propano JY-ZL2010 - detector de LPG/butano con alarma acústica y óptica, montaje en pared, CE/RoHS

The FIRESCO Propane Gas Sensor JY-ZL2010 is a high-sensitivity semiconductor detector designed to monitor propane (LPG) and butane gas leaks. With an alarm threshold of 10% LEL and a loud ≥85 dB alarm, it ensures early warning in residential or commercial environments. The sensor features automatic reset, self-test function, and a 5-year sensor life, making it a reliable safety device.

Advantages

Early detection of combustible gases (propane/butane) at 10% LEL; loud audible and visual alarm; easy wall-mounted installation; automatic reset after gas clears; self-test function for regular verification; low power consumption (<3W); long sensor life (5 years); certified to CE and RoHS standards.

Suitable for

• Kitchens, boiler rooms, and utility areas using propane or butane gas
• Caravans, motorhomes, and boats with LPG appliances
• Warehouses, workshops, and commercial kitchens
• Any indoor space where LPG/butane is stored or used

Key specifications

• Detected Gas: Propane (LPG), Butane
• Sensor Type: High-sensitivity Semiconductor
• Alarm Concentration: 10% LEL
• Alarm Sound Level: ≥85 dB at 1 meter
• Power Supply: AC 220-240V, 50/60Hz
• Power Consumption: <3W
• Operating Temperature: -10°C to 50°C
• Operating Humidity: ≤95% RH (non-condensing)
• Response Time: <30 seconds
• Warm-up Time: Approximately 2-3 minutes
• Sensor Life Expectancy: 5 years
• Alarm Indication: Audible (buzzer) and Visual (LED)
• Installation Method: Wall-mounted (plug-in design)
• Housing Material: ABS Fire-retardant Plastic
• Self-Test Function: Yes
• Reset Function: Automatic reset after gas clears
• Detection Range: 0-20% LEL
• Certifications: CE, RoHS

Recommendations

For optimal safety, install the sensor in accordance with local regulations and manufacturer guidelines. Test the unit weekly using the self-test button. Replace the sensor after 5 years or as indicated by the end-of-life signal.
