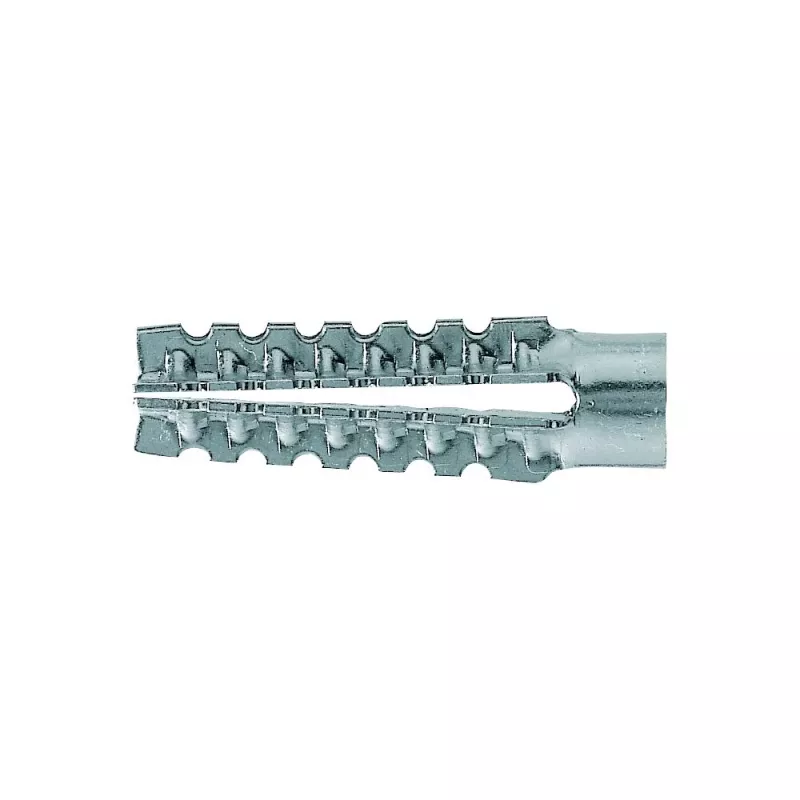

Fischer 532685 FMD 10 x 60 K NV taco metálico para huecos 60 mm 12 mm 10 uds.

Securing fixtures to hollow walls and ceilings can be unreliable with standard plugs. The Fischer FMD 10 x 60 K NV metal cavity fixing solves this by providing a strong, secure anchor point in plasterboard, gypsum fibre boards, chipboard, plywood, and other light building boards. Its zinc-plated steel construction ensures durability, while the flange head prevents pull-through.

Who is it for

This fixing is ideal for electricians, plumbers, carpenters, and DIY enthusiasts who need to mount light to medium-weight objects such as lamps, curtain rails, shelves, or cable conduits on cavity walls and ceilings.

Main features

• Metal cavity fixing with expansion anchor design for reliable hold in hollow materials
• Zinc-plated steel for corrosion resistance
• Flange head prevents the anchor from being pulled through the panel
• Pre-positioned installation: insert anchor before attaching fixture
• Setting with a screwdriver or the FMD setting tool
• Internal thread M6 for standard metric screws
• Pack of 10 pieces

Specifications

• Anchor diameter: 10 mm
• Anchor length: 60 mm
• Drill hole diameter: 12 mm
• Minimum panel thickness: 10 mm
• Maximum fixture thickness: 20 mm
• Internal thread size: M6
• Material: Zinc-plated steel
• Quantity per pack: 10 pieces

Tips

For best results, drill a clean hole with the specified diameter and blow out any dust before inserting the anchor. Use the FMD setting tool for quick and reliable installation, especially when working overhead.
