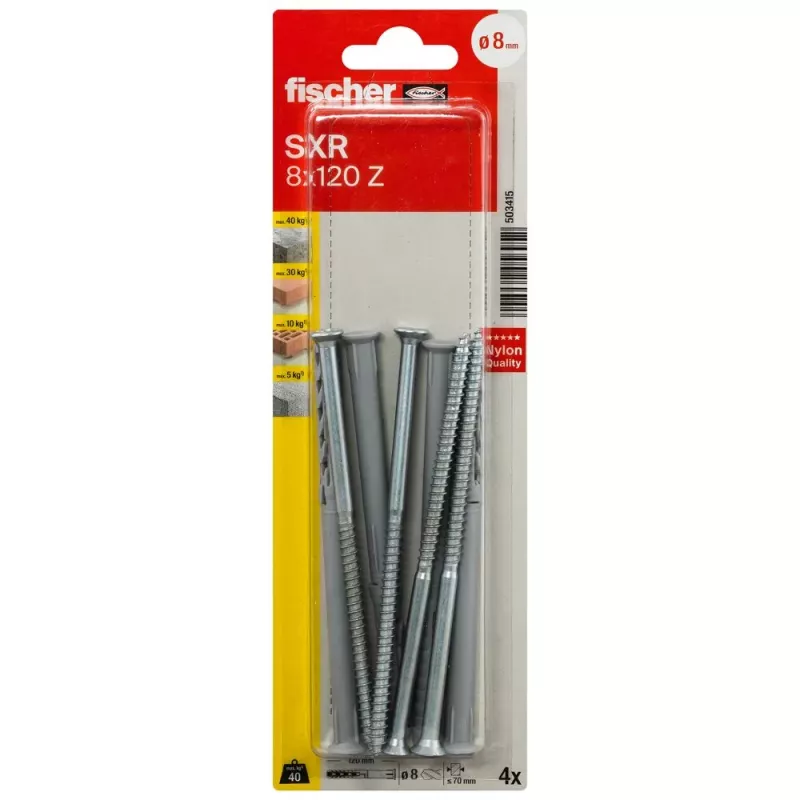

Fischer SXR 8 x 120 Z K NV Taco de vástago largo con tornillo de cabeza avellanada (PZ), 1 set (503415)

The Fischer SXR long-shaft plug delivers a 50 mm usable length for secure through-fixing in a wide range of building materials. With a zinc-plated steel countersunk screw and high-quality nylon plug, this set of 50 anchors is approved for concrete, solid brick, perforated brick, aerated concrete, and sand-lime brick.

Overview

The Fischer SXR 8 x 120 Z K NV is a through-fixing anchor system consisting of a nylon long-shaft plug and a zinc-plated steel countersunk screw. The plug has a diameter of 8 mm and a length of 120 mm, paired with a 5.0 mm diameter screw of 125 mm length. Installation requires an 8 mm drill hole with a minimum depth of 130 mm and a minimum anchorage depth of 70 mm.

What stands out

• Long shaft design provides 50 mm usable length for thicker fixtures.
• TX30 Torx drive ensures reliable torque transfer.
• Approved for multiple base materials under ETA-07/0121.
• Zinc-plated steel screw offers corrosion resistance.

Technical details

• Plug diameter: 8 mm
• Plug length: 120 mm
• Screw diameter: 5.0 mm
• Screw length: 125 mm
• Screw drive: TX30 (Torx)
• Drill hole diameter: 8 mm
• Minimum drill hole depth: 130 mm
• Minimum anchorage depth: 70 mm
• Maximum fixture thickness: 50 mm
• Installation type: Through-fixing
• Approved for: Concrete, Solid Brick, Perforated Brick, Aerated Concrete, Sand-Lime Brick
• Approval: ETA-07/0121
• Quantity per pack: 50 pieces

Our verdict

A versatile long-shaft anchor system for demanding fastening tasks in solid and hollow building materials, offering high load capacity and reliable installation.
